Applications:

Audio >

Audio Power Amplifier

End Products:

AudioAudio Appliances

ECAD Model:

Description

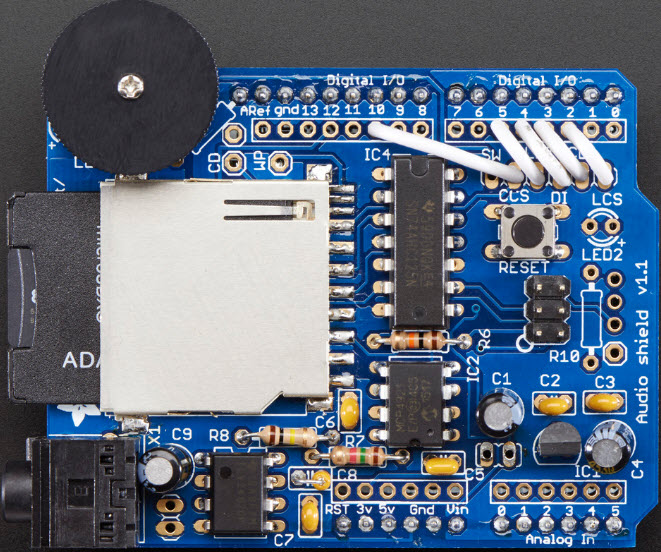

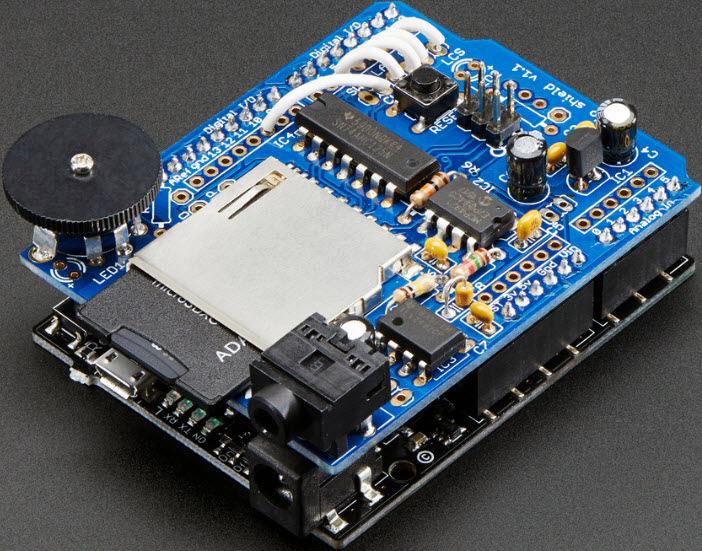

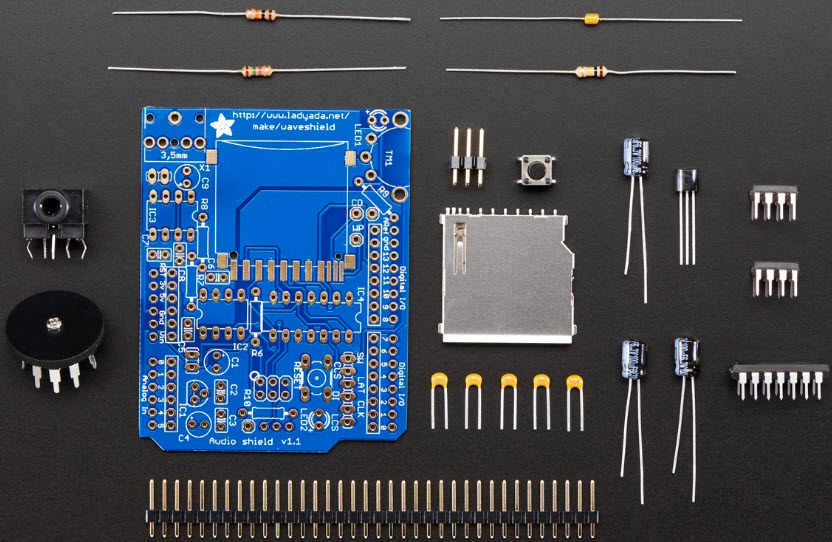

The Adafruit Wave Shield for Arduino Kit - v1.1 | 94 is a great way to add audio and video capabilities to your Arduino projects. This kit includes everything you need to get started, including a Wave Shield board, a microSD card, and a set of audio and video cables. The Wave Shield board is designed to work with the Arduino Uno, Mega, and Leonardo boards, and it allows you to play audio files from the microSD card. It also has a 3.5mm audio jack for connecting headphones or speakers. With this kit, you can create projects that play music, videos, or sound effects.

Specifications

Adafruit Industries LLC technical specifications, attributes, parameters and parts with similar specifications to Adafruit Industries LLC .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Audio
  • Function
    Wave Shield
  • Contents
    Board(s)
  • Platform
    Arduino
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
