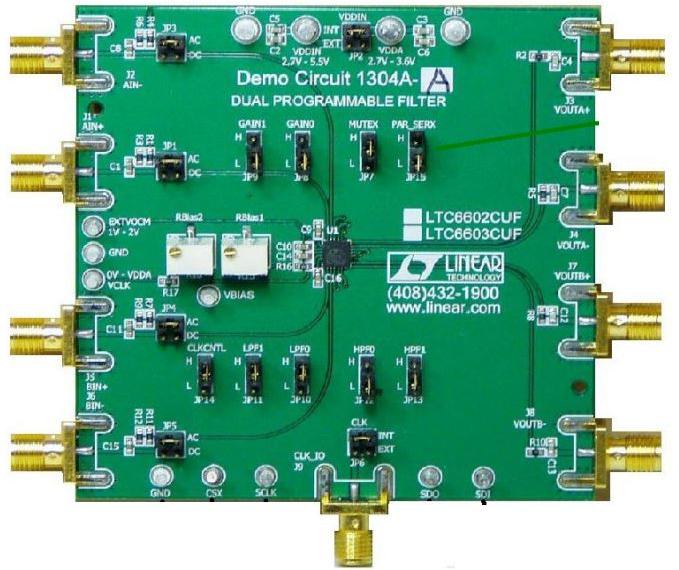

Linear Technology/Analog Devices DC1304A-AEVAL BOARD FOR LTC6602
Applications:
Active Filters >
Active Bandpass Filter
End Products:
Communications and TelecomTelemetryCell BasestationWireless ModemWireless Repeater
ECAD Model:
Description
The Analog Devices DC1304A-A Demo Board is a dual programmable 900kHz low-pass/band-pass filter and ADC driver designed for communications and telecom applications. It features two independent filter sections, each with adjustable gain, cutoff frequency, and filter type. The board also includes a low-power, low-noise amplifier and a high-speed, low-distortion ADC driver. The board is powered by a single 5V supply and is designed to be used with a variety of Analog Devices ADCs. The DC1304A-A Demo Board is an ideal solution for applications requiring high-performance filtering and ADC driver solutions.
Specifications
Linear Technology/Analog Devices technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices .
- TypeParameter
- Factory Lead Time4 Weeks
- Published2008
- Part StatusObsolete
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeFilter
- Base Part NumberLTC6602
- FunctionActive - Band Pass
- Utilized IC / PartLTC6602
- Supplied ContentsBoard(s)
- Primary AttributesDifferential Inputs
- Secondary AttributesDifferential Output
