HARTING 09185267913
Manufacturer No:
09185267913
Tiny WHSLManufacturer:
Utmel No:
1052-09185267913
Package:
-
Description:

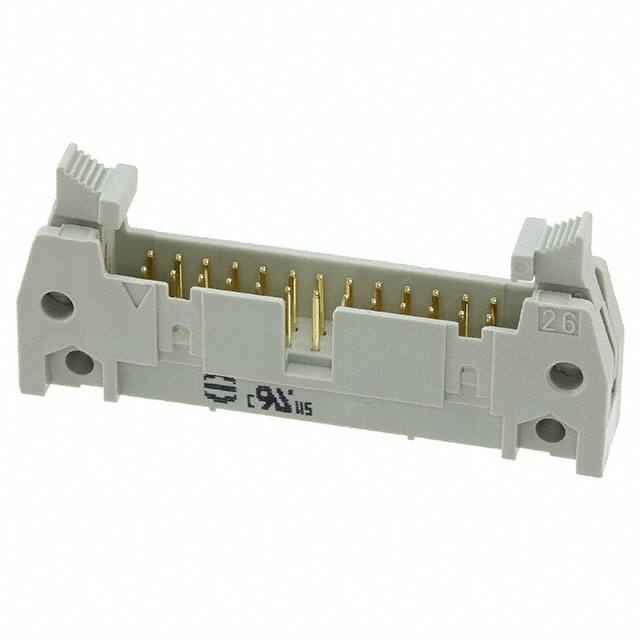

SEK Series 2-Row Header Solder Bulk Through Hole, Right Angle Board to Cable/Wire 0.335 8.51mm Height
Quantity:
Delivery:





Payment:











In Stock : Please Inquire
Please send RFQ , we will respond immediately.
