Analog Devices Inc. EVAL-ADN2850SDZADN2850 Digital Potentiometer Evaluation Board

Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 3
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 1

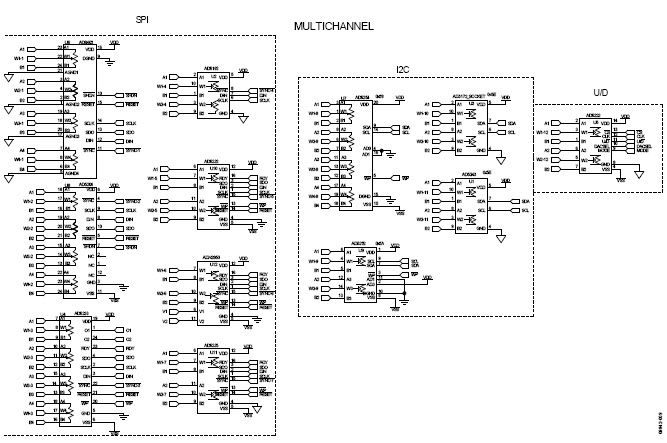

Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 2
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 3
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 1
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 1
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 2
Analog Devices Inc. EVAL-ADN2850SDZ Reference Design 3

Applications:

Data Conversion >

Digital Potentiometer

End Products:

LightingSONETGB Ethernet SwitchDWDM Laser

ECAD Model:

Buy

Description

The Analog Devices EVAL-ADN2850SDZ Evaluation Board is designed to evaluate the performance of the ADN2850 dual-channel, 1024-position, nonvolatile memory digital resistor, Lighting Control IC. This board features two independent channels, each with a 1024-position, nonvolatile memory digital resistor. It also includes a USB interface for programming and monitoring the device. The board is designed to provide a complete evaluation platform for the ADN2850, allowing users to quickly and easily evaluate the performance of the device. The board also includes a variety of test points and connectors for easy connection to external circuits. The board is ideal for applications such as LED lighting, dimming, and color control.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .
  • Type
    Parameter
  • Lifecycle Status
    LAST TIME BUY (Last Updated: 2 weeks ago)
  • Number of Pins
    0
  • Part Status
    Not For New Designs
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Data Acquisition
  • Resistance
    25kOhm
  • Max Operating Temperature
    85°C
  • Base Part Number
    ADN2850
  • Function
    Digital Potentiometer
  • Operating Supply Voltage
    2.7V
  • Interface
    SPI
  • Utilized IC / Part
    ADN2850
  • Supplied Contents
    Board(s)
  • Evaluation Kit
    Yes
  • Primary Attributes
    2 Channel, 1024 Position
  • Embedded
    No
  • Secondary Attributes
    SPI Interface
  • REACH SVHC
    Unknown
  • Radiation Hardening
    No
  • RoHS Status
    ROHS3 Compliant
  • Lead Free
    Contains Lead
0 Similar Products Remaining
