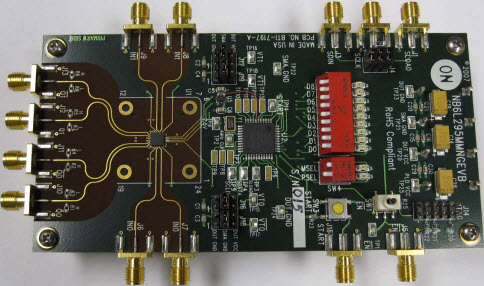

ON Semiconductor NB6L295MMNGEVBPower Management IC Development Tools EVAL BOARD

ON Semiconductor NB6L295MMNGEVB Reference Design 3
ON Semiconductor NB6L295MMNGEVB Reference Design 1
ON Semiconductor NB6L295MMNGEVB Reference Design 2
ON Semiconductor NB6L295MMNGEVB Reference Design 3
ON Semiconductor NB6L295MMNGEVB Reference Design 1
ON Semiconductor NB6L295MMNGEVB Reference Design 1
ON Semiconductor NB6L295MMNGEVB Reference Design 2
ON Semiconductor NB6L295MMNGEVB Reference Design 3

Applications:

Clock and Timing >

Delay Line

End Products:

Instrumentation and MeasurementClock and Timing Devices

ECAD Model:

Buy

Description

The Onsemi NB6L295MMNGEVB-MMNGEVB Evaluation Board is designed to evaluate the performance of the NB6L295MMNG Dual Channel Programmable Delay, Instrumentation and Measurement Amplifier. This evaluation board features two independent channels, each with a programmable delay, instrumentation amplifier, and measurement amplifier. The board also includes a power supply, a USB interface, and a set of test points for easy connection to external test equipment. The board is designed to provide a convenient platform for evaluating the performance of the NB6L295MMNG amplifier and can be used to quickly and accurately measure the delay, gain, and other parameters of the amplifier.

Specifications

ON Semiconductor technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor .
  • Type
    Parameter
  • Factory Lead Time
    6 Weeks
  • Published
    2012
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Timing
  • Function
    Clock Distribution
  • Utilized IC / Part
    NB6L295M
  • Supplied Contents
    Board(s)
  • Evaluation Kit
    Yes
  • Embedded
    No
  • Secondary Attributes
    SMA Connectors
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
