Applications:

Clock and Timing >

Real Time Clock

End Products:

Instrumentation and MeasurementReal-Time Location Systems (RTLS)

ECAD Model:

Description

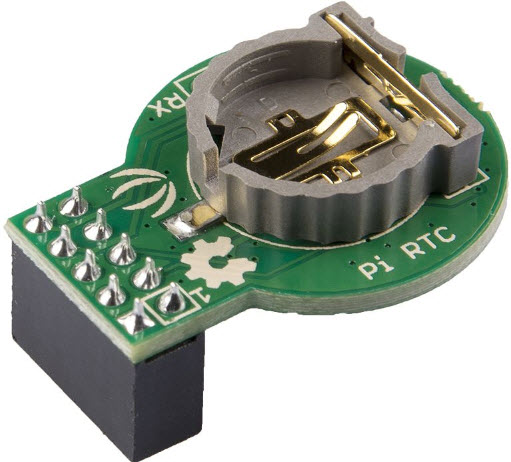

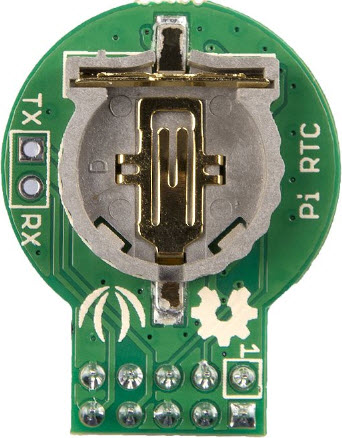

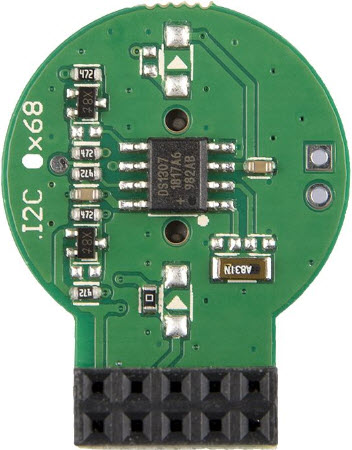

Seeed Technology Co.,Ltd is a leading provider of electronic components and solutions for the Internet of Things (IoT). The company offers a wide range of products, including the PI RTC (DS1307) Real Time Clock (RTC) Evaluation Board, which is designed to provide accurate timekeeping for embedded systems. The board features a DS1307 RTC chip, a 32.768 kHz crystal, and a 3V coin cell battery for backup power. It also includes an I2C interface for easy integration with other devices. The board is ideal for instrumentation and measurement applications, such as data logging, time-stamping, and time synchronization. It is also suitable for use in industrial automation, medical, and automotive applications.

Specifications

Seeed Technology Co., Ltd technical specifications, attributes, parameters and parts with similar specifications to Seeed Technology Co., Ltd .
  • Type
    Parameter
  • Factory Lead Time
    10 Weeks
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    Not Applicable
  • Type
    Clock Timing
  • Function
    Real Time Clock (RTC)
  • Utilized IC / Part
    DS1307
  • Contents
    Board(s)
  • Platform
    Raspberry Pi
0 Similar Products Remaining
