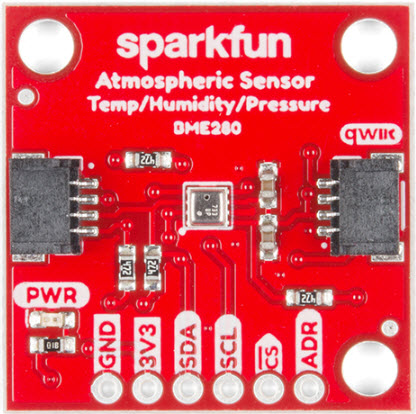

SparkFun Electronics SEN-15440 Reference Design 1
SparkFun Electronics SEN-15440 Reference Design 1

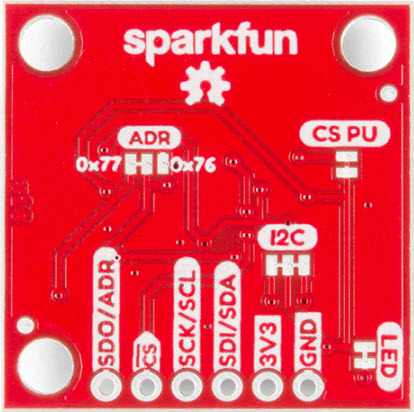

SparkFun Electronics SEN-15440 Reference Design 2

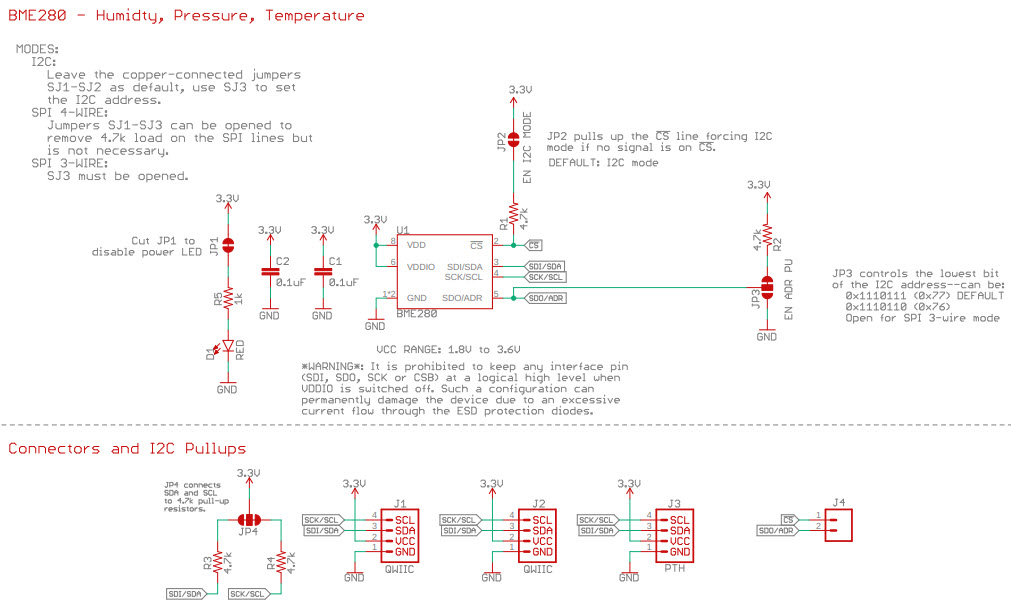

SparkFun Electronics SEN-15440 Reference Design 3

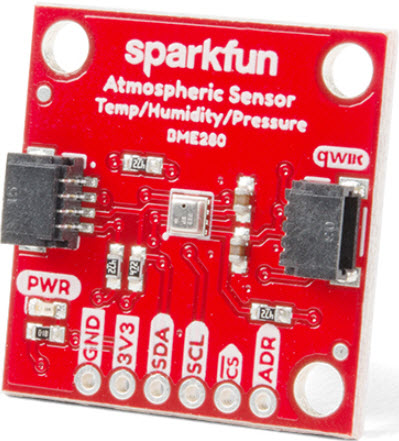

SparkFun Electronics SEN-15440 Reference Design 4

Applications:

Sensors and Transducers >

Pressure Sensor

End Products:

Military and AerospaceHome AutomationWeather ForecastingGPS NavigationHealthcare Monitoring

ECAD Model:

Description

This sensor is a great way to measure temperature, humidity, and barometric pressure. It is designed to be used in military and aerospace applications, and is rated for operation in temperatures from -40°C to +85°C. The board features a Qwiic connector for easy connection to other Qwiic-enabled boards, and includes a voltage regulator and level shifter for compatibility with both 3.3V and 5V systems. The board also includes a 3.3V regulator and level shifter, allowing it to be used with both 3.3V and 5V systems. The board is designed to be used in a variety of applications, including weather monitoring, environmental sensing, and industrial control.

Specifications

SparkFun Electronics technical specifications, attributes, parameters and parts with similar specifications to SparkFun Electronics .
  • Type
    Parameter
  • Factory Lead Time
    2 Weeks
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Sensor
  • Function
    Humidity, Pressure, Temperature
  • Utilized IC / Part
    BME280
  • Contents
    Board(s)
  • Platform
    Qwiic
