Working Principle and Types of Electric Fuse

2026 Executive Summary: Electric Fuses

Summary: An electric fuse is a critical sacrificial safety device that protects electrical circuits by melting a conductive link during overcurrent events (overloads or short circuits). In 2026, the global electric fuse market is projected to reach $6.30 billion, driven by high-speed EV protection and smart-grid compatible high-voltage units. This guide covers working principles, modern symbols, material evolution (shifting away from non-RoHS lead), and the latest classification of low and high-voltage protection devices.

Table of Contents

I. What is a Fuse in an Electric Circuit?

An electric fuse is a sacrificial current interrupting device designed to protect an electrical circuit by melting to create an open circuit during an overcurrent event.

Functioning as the "weakest link" in a controlled manner, a fuse connects a power source to an electrical component. Inside the fuse terminals lies a specially designed fuse link. When electrical current exceeds the device's specific rating—whether due to a short circuit or overload—the excessive heat melts this link. This physical separation stops the flow of electricity immediately, preventing catastrophic damage to expensive hardware or fire hazards.

Figure 1. Electric Fuse Construction

Unlike circuit breakers which can be reset, standard fuses are single-use devices; once the element melts (blows), the unit must be replaced. Despite the rise of resettable alternatives, fuses remain the most economical and reliable method for high-fault current protection, supporting a global market projected to reach $6.30 billion in 2026. They are critical components in:

• Automotive Systems: Protecting ECUs and battery management systems in the rapidly expanding EV market.

• Grid Infrastructure: Safeguarding distribution transformers, capacitor banks, and solar inverters, which are expected to account for 37% of US electricity generation by 2026.

• Consumer Electronics: Preventing damage from power surges in smart home devices and appliances.

II. How Does an Electric Fuse Work?

An electric fuse operates on the principle of the heating effect of electric current ($I^2R$ heating) to thermally destroy a conductive link when safe limits are exceeded.

Structurally, the fuse comprises two main parts: a fuse element (metal conductor) and a protective housing (cartridge/case). Ideally, the fuse carries normal current with minimal resistance. However, according to Joule's Law, heat is generated as current flows. Under normal conditions, this heat dissipates into the environment.

When a fault occurs (e.g., a short circuit causing massive current flow), the heat generation rate exceeds the dissipation rate. The temperature of the fuse element rapidly rises to its melting point, liquefying the metal and breaking the circuit. This instantaneous disconnection isolates the fault, protecting downstream devices.

Key Installation Rule: A fuse must always be connected in  series with the live wire of the circuit.

The "blow time" of a fuse follows inverse time-current characteristics: the higher the fault current, the faster the fuse blows. This ensures rapid reaction to dangerous short circuits while tolerating minor, temporary overloads.

III. What is the Standard Electric Fuse Symbol?

The standard electric fuse symbol is represented as a simple rectangle with a line through it (IEC standard) or a continuous wavy line (IEEE/ANSI standard), visually indicating the conductive path that breaks during a fault.

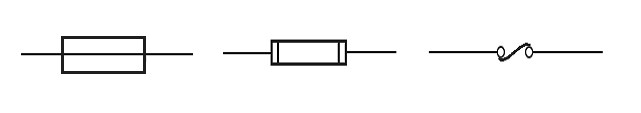

Figure 2. Standard Circuit Diagrams for Fuses (IEC vs IEEE)

IV. What Materials Are Used in Modern Electric Fuses?

Modern electric fuses are primarily manufactured using highly conductive metals with low melting points, such as silver, copper, zinc, and tin, to ensure rapid activation during electrical faults. The material selected for a fuse element dictates its performance and reliability. In 2026, materials are chosen based on specific physical properties:

● Low Melting Point: Ensures quick activation during faults.

● Low Ohmic Resistance: Minimizes power loss during normal operation.

● High Conductivity: Allows efficient current flow.

● Corrosion Resistance: Prevents degradation over time.

While legacy fuses used lead-tin alloys, modern environmental standards like RoHS have shifted the industry toward cleaner materials to eliminate toxic heavy metals.

Common Fuse Materials in 2026:

• Tin, Lead, Zinc: Historically used for low ratings (<15A), though lead is now restricted in consumer goods.

• Copper: Used for ratings exceeding 15A. Its high melting point is often managed by tinning the wire.

• Silver: The gold standard for high-performance fuses due to its non-oxidizing nature (silver oxide is conductive and volatile), high conductivity, and fast reaction time. It is standard in HRC (High Rupturing Capacity) fuses.

V. What Are the Common Types of Electric Fuses?

The most common types of electric fuses are broadly categorized by voltage levels into Low Voltage fuses (such as cartridge and rewirable types) and High Voltage fuses (such as liquid and HV HRC types).

1. Low Voltage Fuses

(1) Rewirable (Kit-Kat) Fuse

The semi-enclosed or rewirable fuse is a legacy design still found in older residential wiring. It consists of a porcelain base and a removable carrier containing the fuse wire. While cost-effective, they are less precise than modern cartridge fuses. Ratings typically range from 6A to 100A.

Figure 3. Rewirable Fuse (Legacy)

(2) Cartridge (Fully Enclosed) Fuses

These fuses enclose the element in a sealed container, preventing arc flash and ensuring reliable performance.

1) D-Link (Diazed) Fuse: A screw-in type fuse featuring a non-interchangeable cartridge ring to prevent using the wrong amperage rating. Common in industrial control panels.

2) High Rupturing Capacity (HRC) Fuse:

HRC fuses are critical for modern distribution systems. The fuse element is housed in a ceramic body filled with silica sand or quartz. When the fuse blows, the sand reacts with the metal vapor to form a glass-like bead, instantly extinguishing the electric arc. They handle massive short-circuit currents safely (up to 1250A+).

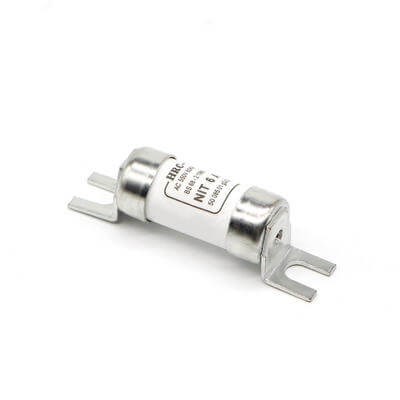

Figure 4. Knife Blade HRC Fuse

Figure 5. Bolted Type Fuse

(3) Drop Down Fuse

Primarily used for outdoor distribution transformers. The fuse holder is hinged; when the element melts, gravity causes the holder to swing down, providing a clear visual indication of the fault.

(4) Switch Fuse

A heavy-duty combination of a switch and a fuse in a metal enclosure, used to manually isolate circuits while providing automatic overload protection.

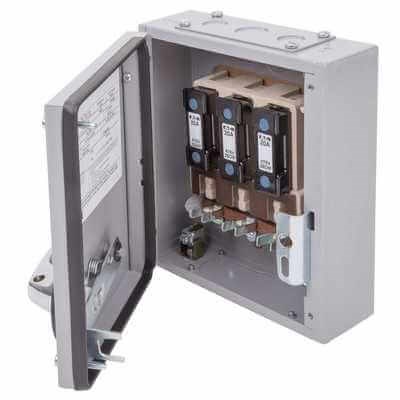

Figure 6. Switch Fuse Unit

2. High-voltage Fuses

(1) Cartridge Type HV HRC Fuse

Similar to low voltage versions but constructed to mitigate corona effects. The fuse element is often wound in a helix shape to manage electric fields at voltages up to 33kV.

(2) High Voltage Liquid HRC Fuse

Liquid fuses are used for aggressive arc extinction. While historically Carbon Tetrachloride was used, modern variants typically use mineral oil or boric acid derivatives due to environmental safety. When the spring-loaded fuse melts, the liquid rushes in to quench the arc instantly.

(3) Thermal Fuse (Thermal Cutoff)

Unlike current fuses, thermal fuses respond to temperature. They contain a heat-sensitive pellet that melts at a specific temperature, releasing a spring to open the circuit. These are legally required in 2026 consumer appliances like coffee makers and hair dryers to prevent fire.

VI. What Are the Critical Properties of Electric Fuses?

The critical properties of electric fuses include the current rating, fusing current, fusing factor, breaking capacity, and prospective current. To select the correct fuse for 2026 applications, engineers must calculate the following parameters:

1. Current Rating

The continuous current a fuse can carry without deteriorating or blowing. (e.g., A 10A fuse can carry 10A indefinitely).

2. Fusing Current

The minimum current required to actually melt the element. This is typically greater than the current rating. For round wires, this is approximated by Preece's Law:

I = k &times; d^1.5

Where k is the material constant and d is the wire diameter.

3. Fusing Factor

The ratio between Minimum Fusing Current and Current Rating. It is always greater than 1. (e.g., A fusing factor of 1.25 means a 100A fuse blows at 125A).

Fusing Factor = Minimum Fusing Current / Current Rating

4. Breaking Capacity (Interrupting Rating)

The maximum short-circuit current the fuse can safely interrupt without exploding. HRC fuses have high breaking capacities (e.g., 100,000A).

5. Prospective Current

The theoretical current that would flow in the circuit if the fuse were replaced by a solid conductor of zero resistance during a fault.

VII. What Are the Pros and Cons of Using Electric Fuses?

The primary advantages of using electric fuses are their cost-effectiveness, high-speed operation, and fail-safe reliability, while the main disadvantages include their single-use nature and lack of remote reset capabilities.

Advantages

• Cost-Effective: The cheapest form of high-current protection available.

• Maintenance Free: No moving parts means no wear and tear over time.

• High Speed: Inverse time-current characteristics allow for near-instantaneous operation during massive short circuits.

• Fail-Safe: When they fail, they fail "open" (safe), unlike some mechanical switches that can weld closed.

Disadvantages

• Single Use: Must be physically replaced after blowing, causing downtime.

• No Remote Reset: Unlike "Smart Fuses" or Circuit Breakers, standard fuses cannot be reset remotely via IoT systems.

• Protection Coordination: It can be difficult to coordinate fuses in series so that only the fuse closest to the fault blows.
