Home>Reference Design>Analog Devices, Inc.

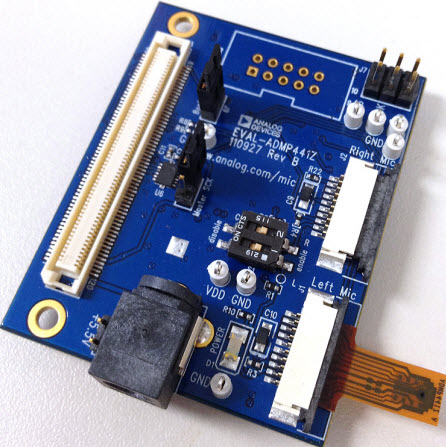

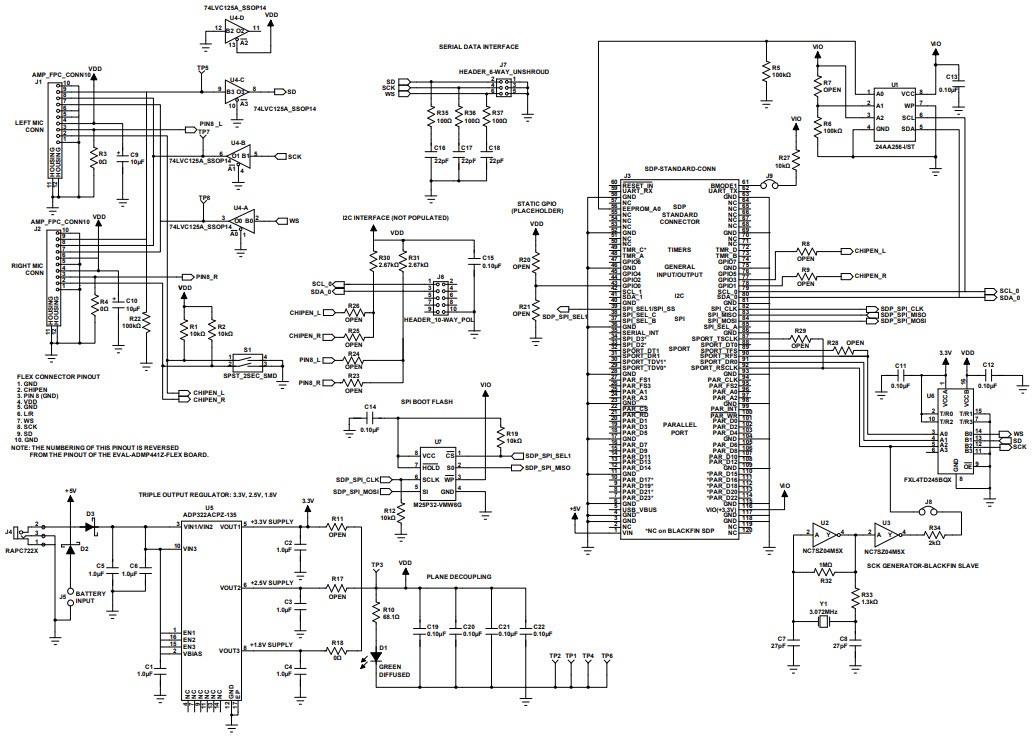

Analog Devices, Inc. EVAL-ADMP441Z

Analog Devices, Inc. EVAL-ADMP441Z Reference Design 2
Analog Devices, Inc. EVAL-ADMP441Z Reference Design 1
Analog Devices, Inc. EVAL-ADMP441Z Reference Design 2
Analog Devices, Inc. EVAL-ADMP441Z Reference Design 1
Analog Devices, Inc. EVAL-ADMP441Z Reference Design 1
Analog Devices, Inc. EVAL-ADMP441Z Reference Design 2

Applications:

Audio >

Audio Interfaces

End Products:

Consumer ElectronicsConference DevicesDigital Video CameraBluetooth HeadsetSmart PhoneTablet

ECAD Model:

Buy

Description

The Analog Devices EVAL-ADMP441Z SDP Daughter Board for the ADMP441 I2S MEMS Microphone is a consumer electronics device designed to provide a convenient platform for evaluating the performance of the ADMP441 I2S MEMS Microphone. The board features a low-noise, low-power, high-performance MEMS microphone, as well as a low-noise, low-power, high-performance audio codec. The board also includes a USB interface for easy connection to a PC, and a 3.5mm audio jack for connecting to external audio devices. The board is designed to provide a complete solution for evaluating the performance of the ADMP441 I2S MEMS Microphone, and is ideal for use in consumer electronics applications.

Specifications

Analog Devices, Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices, Inc. .
  • Type
    Parameter
  • Lifecycle Status
    OBSOLETE (Last Updated: 2 weeks ago)
  • Number of Pins
    0
  • Shape
    Square
  • Packaging
    Bulk
  • Termination
    Solder
  • Depth
    3.8mm
  • Interface
    USB
  • Max Supply Voltage
    3.3V
  • Min Supply Voltage
    1.8V
  • Operating Supply Current
    1.6mA
  • Evaluation Kit
    Yes
  • Length
    4.82mm
  • REACH SVHC
    No SVHC
  • RoHS Status
    RoHS Compliant
  • Lead Free
    Contains Lead
0 Similar Products Remaining
