Applications:

Displays >

LCD Display Driver

End Products:

Consumer ElectronicsLCD TFT Display

ECAD Model:

Description

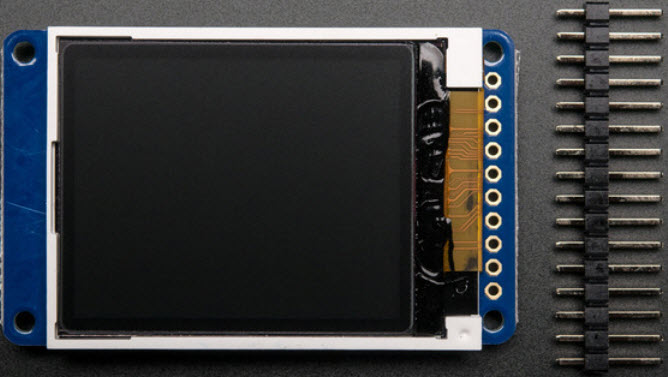

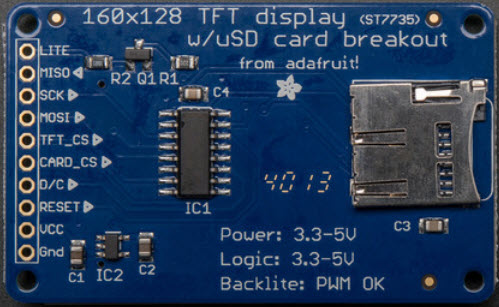

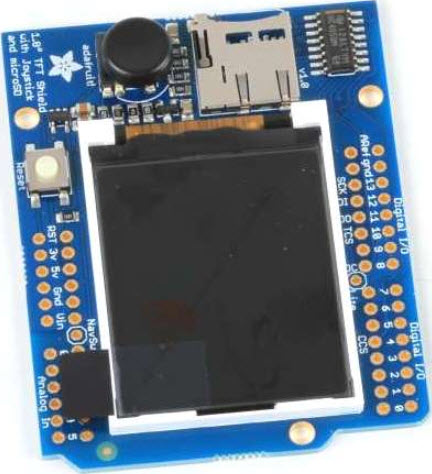

Adafruit Industries 358-358, 1.8" TFT Display Breakout and Shield is a consumer electronics product designed to provide a convenient and easy way to add a vibrant, full-color display to your project. This display breakout and shield features a 1.8" TFT LCD display with a resolution of 128x160 pixels, and an integrated microSD card slot for storing images and data. It also includes a 3.3V regulator and level shifter, making it compatible with both 3.3V and 5V microcontrollers. The breakout and shield are designed to be easily integrated into your project, and the included library makes it easy to get started. With its vibrant colors and easy integration, the Adafruit Industries 358-358, 1.8" TFT Display Breakout and Shield is the perfect choice for adding a colorful display to your project.

Specifications

Adafruit Industries LLC technical specifications, attributes, parameters and parts with similar specifications to Adafruit Industries LLC .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Interface
    SPI
  • Display Type
    TFT - Color
  • Viewing Area
    28.03mm W x 35.04mm H
  • Display Mode
    Transmissive
  • Backlight
    LED - White
  • Dot Pixels
    128 x 160
  • Diagonal Screen Size
    1.8 45.72mm
  • Graphics Color
    Red, Green, Blue (RGB)
  • Backlight Type
    LED
  • Resolution (height)
    160 pixel
  • Resolution (width)
    128 pixel
  • Diagonal Size
    1.8 in
  • RoHS Status
    ROHS3 Compliant
