MikroElektronika MIKROE-3436TEMP&HUM 12 CLICK

MikroElektronika MIKROE-3436 Reference Design 6
MikroElektronika MIKROE-3436 Reference Design 1
MikroElektronika MIKROE-3436 Reference Design 2
MikroElektronika MIKROE-3436 Reference Design 3
MikroElektronika MIKROE-3436 Reference Design 4
MikroElektronika MIKROE-3436 Reference Design 5
MikroElektronika MIKROE-3436 Reference Design 6
MikroElektronika MIKROE-3436 Reference Design 1
MikroElektronika MIKROE-3436 Reference Design 1
MikroElektronika MIKROE-3436 Reference Design 2
MikroElektronika MIKROE-3436 Reference Design 3
MikroElektronika MIKROE-3436 Reference Design 4
MikroElektronika MIKROE-3436 Reference Design 5
MikroElektronika MIKROE-3436 Reference Design 6

Applications:

Sensors and Transducers >

Temperature Sensing

End Products:

Consumer ElectronicsWeather StationsMicroenvironment CentersHVACRespiratory Therapy ApplicationsThermostatHumidistatAir Conditioning

ECAD Model:

Description

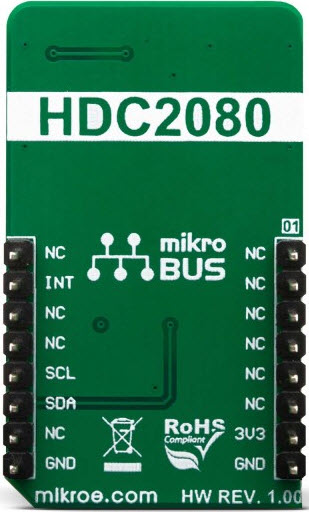

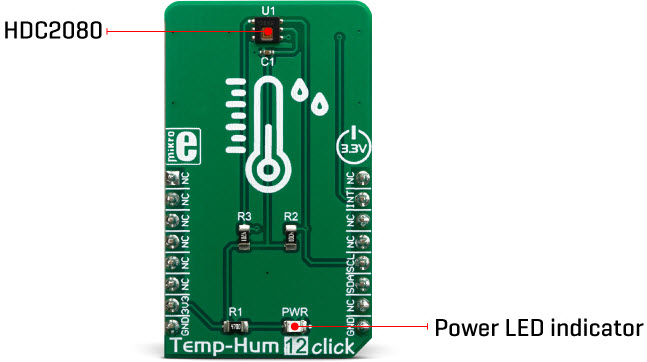

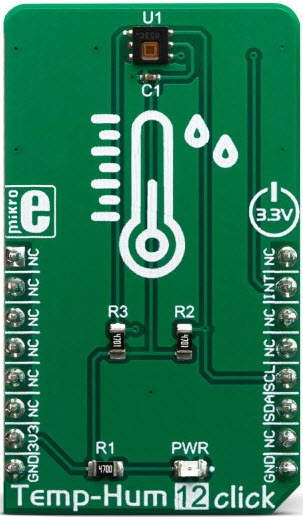

The MikroElektronika MIKROE-3436 Temp&Hum 12 Click Board is a consumer electronics device designed to measure humidity and temperature using the HDC2080 humidity and temperature sensor with I2C interface. It features a 12-pin mikroBUS socket, allowing it to be easily connected to a wide range of development boards. The board is equipped with a 3.3V regulator, allowing it to be powered from a 5V source. The board also features an I2C interface, allowing it to be connected to a wide range of microcontrollers and development boards. The board is designed to be used in a wide range of applications, including home automation, industrial automation, and environmental monitoring.

Specifications

MikroElektronika technical specifications, attributes, parameters and parts with similar specifications to MikroElektronika .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Sensor
  • Function
    Humidity, Temperature
  • Utilized IC / Part
    HDC2080
  • Contents
    Board(s)
  • Platform
    mikroBUS™ Click™
  • RoHS Status
    ROHS3 Compliant
