MikroElektronika MIKROE-3442TEMP-LOG 5 CLICK
Applications:
Measurement and Monitoring >
Temperature Measurement
End Products:
Consumer ElectronicsData LoggerTemperature Measurement
ECAD Model:
Description

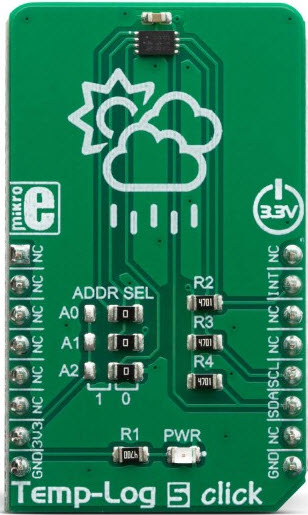

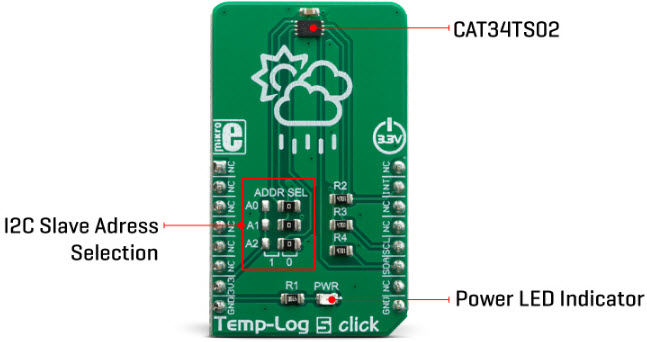

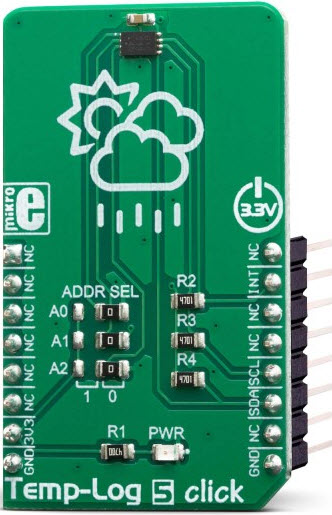

The MikroElektronika MIKROE-3442 Temp-Log 5 Click Board is a digital output temperature sensor with an SPD EEPROM for consumer electronics. It is designed to measure temperatures from -40°C to +125°C with a resolution of 0.5°C. The board is equipped with a CAT34TS02 temperature sensor and an EEPROM memory chip for storing temperature data. The board also features an I2C interface for communication with other devices. The board is easy to use and can be used in a variety of applications, such as temperature monitoring, data logging, and more.
Specifications
MikroElektronika technical specifications, attributes, parameters and parts with similar specifications to MikroElektronika .
- TypeParameter
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeSensor
- FunctionTemperature
- Utilized IC / PartCAT34TS02
- ContentsBoard(s)
- PlatformmikroBUS™ Click™
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
