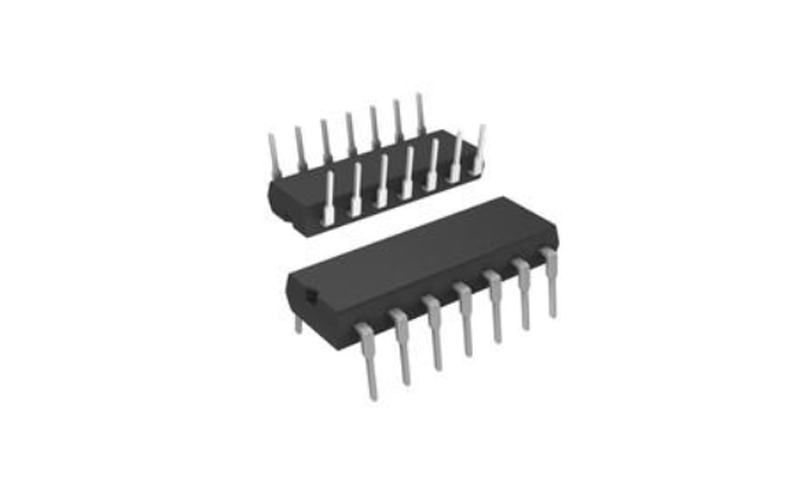

IRS2xx series are monolithic ICs that integrate the gate driver circuitry and the protection logic in a single chip. They can drive power MOSFETs and IGBTs with high efficiency and reliability. They can also monitor the switching nodes and provide feedback signals for fault detection and protection. They can operate from a wide range of supply voltages and frequencies.
Features
The main features of IRS2xx series High-performance gate drivers may be summarized as follows:
High gate drive current up to 4A, under-voltage lockout protection, shoot-through protection, dead-time control, fault reporting, bootstrap diode.
Applications
DC/DC converters
AC/DC converters
Motor drives
Inverters
These ICs provide high gate drive current, fast switching speed, robust protection functions, and advanced features for various switching applications.
