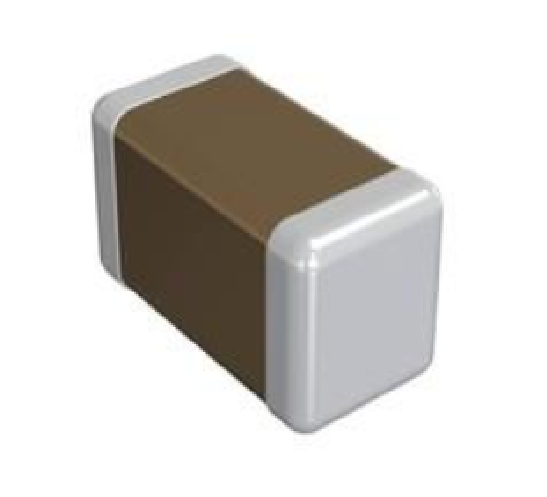

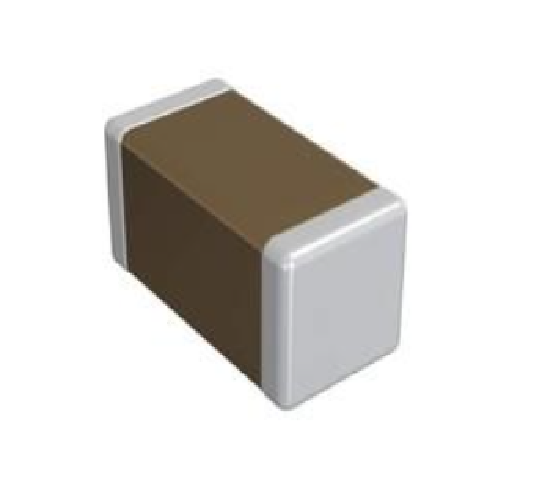

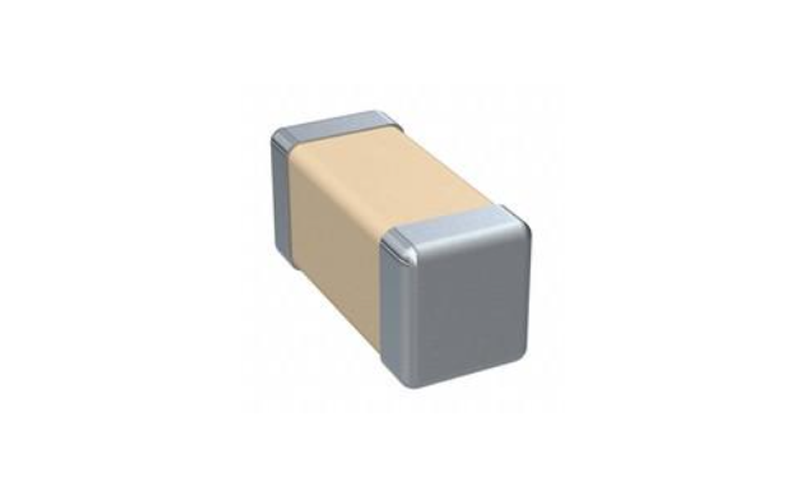

X7R series Ceramic capacitors are widely used in various electronic circuits for their stable capacitance values over a wide temperature range and high volumetric efficiency in small case sizes. They provide low ESR and ESL, making them suitable for use in high-frequency applications. These capacitors are also highly reliable and have a low failure rate, making them suitable for use in critical applications. With their RoHS compliance and lead-free terminations, they are environmentally friendly and safe for use in various industries.
Features
The main features of X7R series Ceramic capacitors may be summarized as follows:
1. X7R dielectric material provides high capacitance stability over a wide range of temperatures (-55°C to +125°C)
2. High volumetric efficiency with high capacitance values in small case sizes
3. Low equivalent series resistance (ESR) and equivalent series inductance (ESL)
4. RoHS-compliant and lead-free terminations available
5. High reliability with a low failure rate
Applications
Power supply decoupling and smoothing
Timing and tuning circuits
Coupling and DC blocking
Voltage regulation
Noise filtering
Snubber circuits in power electronics
LED lighting and driver circuits
Automotive electronics
Telecommunications and data transmission equipment
The X7R series Ceramic capacitors are popular in many applications due to their high capacitance values, low ESR and ESL, and excellent stability over a wide temperature range. They are commonly used for power supply decoupling and smoothing, as well as for timing and tuning circuits. They are also suitable for use in coupling and DC blocking, voltage regulation, noise filtering, and snubber circuits in power electronics. Their low loss at high frequency makes them ideal for use in LED lighting and driver circuits, and their non-polarized design makes them easy to install. Additionally, the X7R series Ceramic capacitors are widely used in automotive electronics, as well as in telecommunications and data transmission equipment, due to their high reliability and performance.
