Applications:

Wireless Communication >

Receivers

End Products:

Military and AerospaceWearable ElectronicsGPS NavigationIndustrial Asset Tracking

ECAD Model:

Description

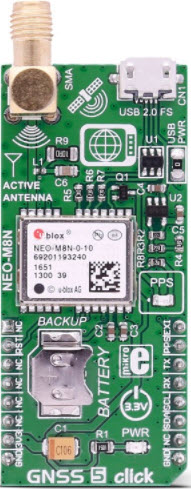

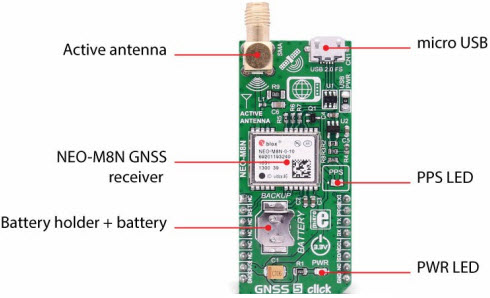

The MikroElektronika MIKROE-2670 GNSS 5 CLICK Board is a powerful and reliable positioning solution based on the NEO-M8N GNSS Receiver Module. This board is designed for use in military and aerospace applications, providing accurate and reliable positioning data. It features a high-sensitivity receiver, low power consumption, and a wide range of supported GNSS systems. The board is also equipped with a built-in antenna, allowing for easy installation and setup. With its advanced features and robust design, the MIKROE-2670 is an ideal solution for determining current position in demanding environments.

Specifications

MikroElektronika technical specifications, attributes, parameters and parts with similar specifications to MikroElektronika .
  • Type
    Parameter
  • Factory Lead Time
    4 Weeks
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    RF
  • Function
    Global Navigation Satellite System (GNSS)
  • Utilized IC / Part
    NEO-M8N
  • Contents
    Board(s)
  • Platform
    mikroBUS™ Click™
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
