Applications:

Sensors and Transducers >

Light Sensor

End Products:

Consumer ElectronicsHandheld ElectronicsLUX MeterMobile Devices

ECAD Model:

Description

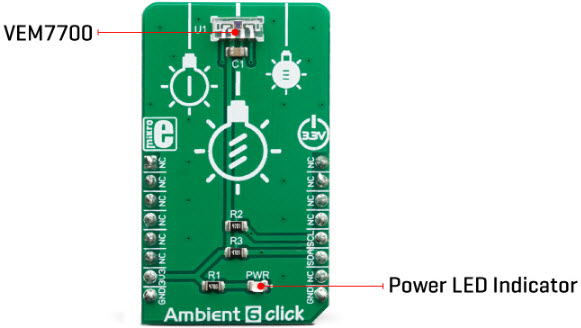

The MikroElektronika MIKROE-3444 Ambient 6 Click Board is a high accuracy ambient light sensor (ALS) with an I2C interface. It is designed to measure the ambient light intensity in a wide range of applications, such as consumer electronics, automotive, and industrial automation. The board is equipped with the VEML7700 sensor, which is capable of measuring light intensity from 0.01 lux to 83,000 lux with a resolution of 0.01 lux. The board also features an I2C interface, allowing for easy integration into existing systems. The board is also equipped with a power LED indicator, allowing for easy monitoring of the board's status. The board is also RoHS compliant, making it suitable for use in a variety of applications.

Specifications

MikroElektronika technical specifications, attributes, parameters and parts with similar specifications to MikroElektronika .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Sensor
  • Function
    Light
  • Utilized IC / Part
    VEML7700
  • Contents
    Board(s)
  • Platform
    mikroBUS™ Click™
  • RoHS Status
    ROHS3 Compliant
