MikroElektronika MIKROE-3452AMBIENT 8 CLICK
Description

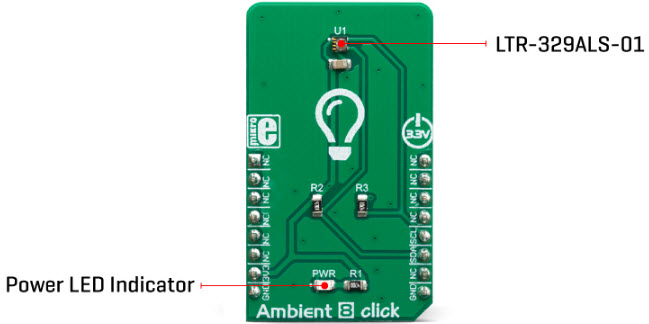

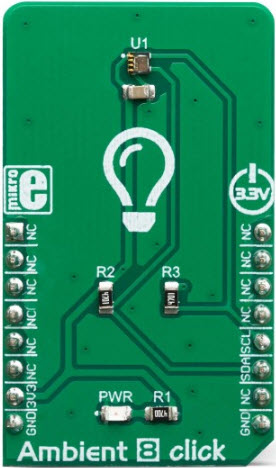

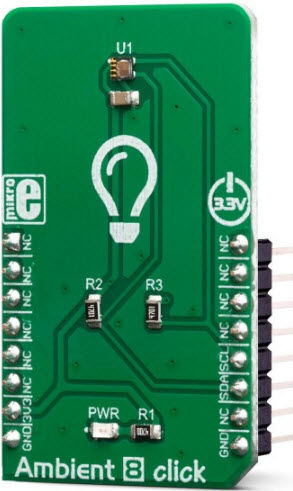

The MikroElektronika MIKROE-3452 Ambient 8 Click Board is a high accuracy ambient light sensor (ALS) with an I2C interface. It is designed to measure the intensity of ambient light in a variety of applications, such as lighting control, display brightness control, and motion detection. The board features the LTR-329ALS-01 sensor, which is capable of measuring light intensity from 0.01 to 100,000 lux with a resolution of 0.01 lux. The board also includes a 3.3V regulator, a power LED, and a reset button. The board is easy to use and can be connected to any microcontroller with an I2C interface. It is ideal for consumer electronics applications.
Specifications
MikroElektronika technical specifications, attributes, parameters and parts with similar specifications to MikroElektronika .
- TypeParameter
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeSensor
- FunctionLight
- Utilized IC / PartLTR-329ALS-01
- ContentsBoard(s)
- PlatformmikroBUS™ Click™
- RoHS StatusROHS3 Compliant
