ON Semiconductor NCP45520IMNGEVBEVAL BOARD NCP45520IMN

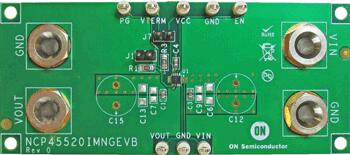

ON Semiconductor NCP45520IMNGEVB Reference Design 2

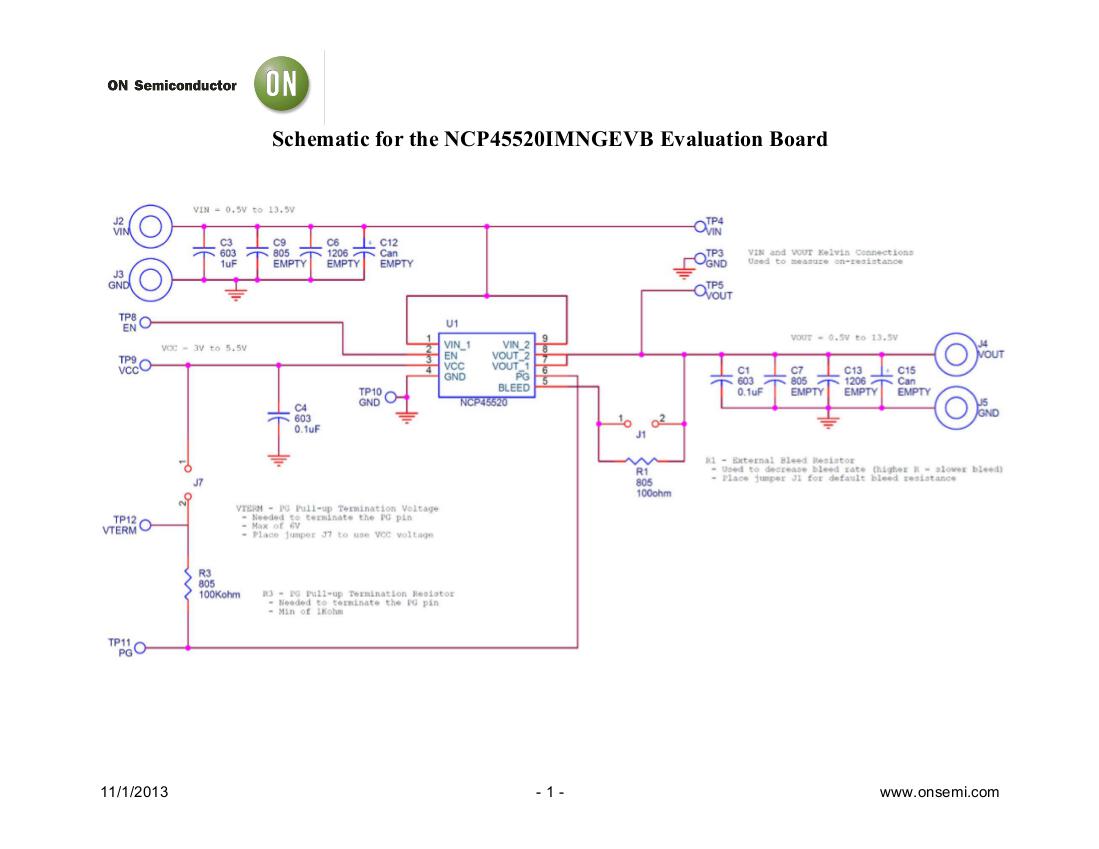

ON Semiconductor NCP45520IMNGEVB Reference Design 1

Applications:

Power Drivers >

Power Switch

End Products:

Communications and TelecomPortable Consumer ElectronicsMedical and HealthcareTelecom InfrastructureNotebookServersOptical NetworkingDSL GatewaySet-Top BoxIndustrialTablet

ECAD Model:

Buy

Description

The ON Semiconductor NCP45520IMNGEVB-IMNGEVB is an evaluation board for the NCP45520 Controlled Load Switch with Ultra-Low Ron. This board is designed for use in communications and telecom applications. It features a wide input voltage range of 2.5V to 5.5V, and a low on-resistance of 0.5Ω. The board also includes a power-on reset circuit, an enable pin, and a thermal shutdown circuit. The board is designed to provide a reliable and efficient solution for controlling power in communications and telecom applications.

Specifications

ON Semiconductor technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor .
