Description

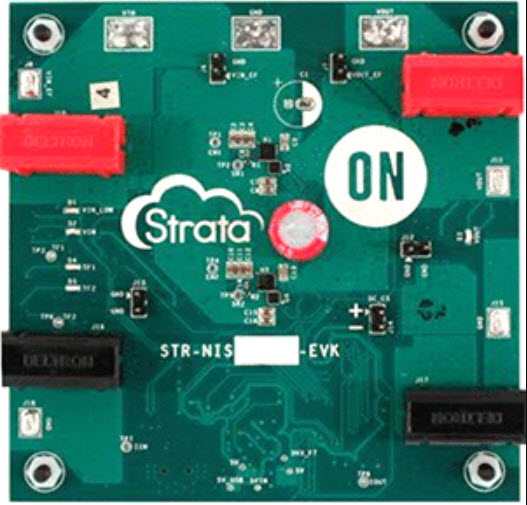

The Onsemi STR-NIS5020-GEVB is a Strata Enabled NIS5020 12V, 14 m-ohm, 10A eFuse Evaluation Board. It is designed to provide a comprehensive evaluation platform for the NIS5020 eFuse device. This board is ideal for use in computers and peripherals, providing a reliable and efficient way to protect against overcurrent and overvoltage conditions. It features a wide range of protection features, including overcurrent protection, overvoltage protection, and reverse current protection. The board also includes a built-in LED indicator to provide visual feedback on the status of the eFuse. The board is easy to use and provides a reliable and efficient way to protect against overcurrent and overvoltage conditions.

Specifications

ON Semiconductor technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Circuit Protection
  • Function
    Electronic Fuses (eFuse)
  • Utilized IC / Part
    NIS5020
  • Supplied Contents
    Board(s)
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
Technical Documents

Associated Products

Part NumberManufacturerDescriptionStockRFQ
NCP81074ADR2G
ON SemiconductorIC MOSFET DVR 1CH 10A 8SOIC20000BUY
NCP705MT33TCG
ON Semiconductor500 MA LDO23BUY
NCP308MTADJTBG
ON SemiconductorSupervisory Circuit 6-Pin WDFN EP T/R363RFQ
NCT375MNR2G
ON SemiconductorSENSOR DIGITAL -55C-125C 8DFN33BUY
NCS2001SQ2T2G
ON SemiconductorIC OP AMP GP 1.4MHZ RR SC70-521996RFQ
NCS213RSQT2G
ON SemiconductorCURRENT SENSE AMP G=503000RFQ
FT230XQ-R
FTDI, Future Technology Devices International LtdIC USB SERIAL BASIC UART 16QFN5215BUY
