Applications:

Circuit Protection >

Electronic Breaker

End Products:

Computers and PeripheralsComputer Motherboard SystemsServersHard Disk Drive (HDD)Fan Controller

ECAD Model:

Buy

Description

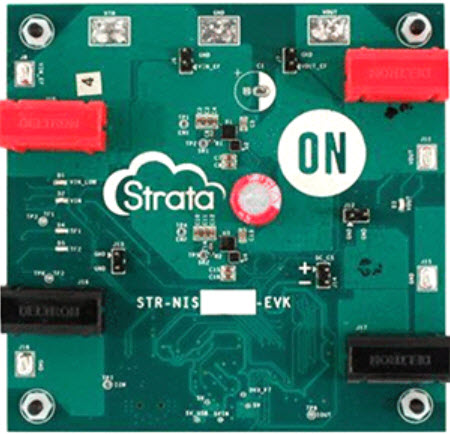

The Onsemi STR-NIS5820-GEVB is a Strata Enabled NIS5820 12V, 24 m-ohm, 8A eFuse Evaluation Board. It is designed to provide a convenient platform for evaluating the performance of the NIS5820 eFuse. The board features a 12V input voltage, 24 m-ohm resistance, and 8A current rating. It is ideal for use in computers and peripherals, providing reliable protection against overcurrent and overvoltage. The board also includes a USB port for easy connection to a PC, allowing for easy monitoring and control of the eFuse. The board is RoHS compliant and is designed to meet the highest standards of safety and reliability.

Specifications

ON Semiconductor technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor .
  • Type
    Parameter
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Circuit Protection
  • Function
    Electronic Fuses (eFuse)
  • Utilized IC / Part
    NIS5820
  • Supplied Contents
    Board(s)
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
Technical Documents

Associated Products

Part NumberManufacturerDescriptionStockRFQ
NCP81074ADR2G
ON SemiconductorIC MOSFET DVR 1CH 10A 8SOIC20000BUY
NCP705MT33TCG
ON Semiconductor500 MA LDO23BUY
NCP308MTADJTBG
ON SemiconductorSupervisory Circuit 6-Pin WDFN EP T/R363RFQ
NCT375MNR2G
ON SemiconductorSENSOR DIGITAL -55C-125C 8DFN33BUY
NCS2001SQ2T2G
ON SemiconductorIC OP AMP GP 1.4MHZ RR SC70-521996RFQ
NCS213RSQT2G
ON SemiconductorCURRENT SENSE AMP G=503000RFQ
FT230XQ-R
FTDI, Future Technology Devices International LtdIC USB SERIAL BASIC UART 16QFN5215BUY
