Analog Devices Inc. EV-ADF4355-3SD1ZEVAL BOARD ADF4355

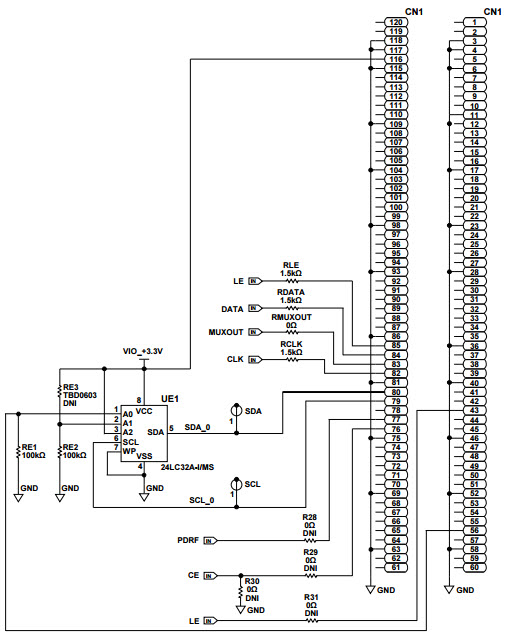

Analog Devices Inc. EV-ADF4355-3SD1Z Reference Design 5

Analog Devices Inc. EV-ADF4355-3SD1Z Reference Design 1

Analog Devices Inc. EV-ADF4355-3SD1Z Reference Design 2

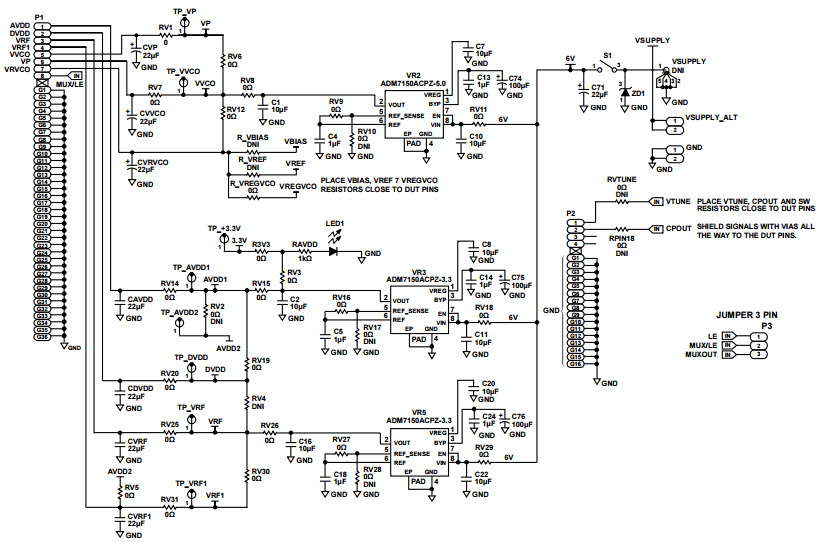

Analog Devices Inc. EV-ADF4355-3SD1Z Reference Design 3

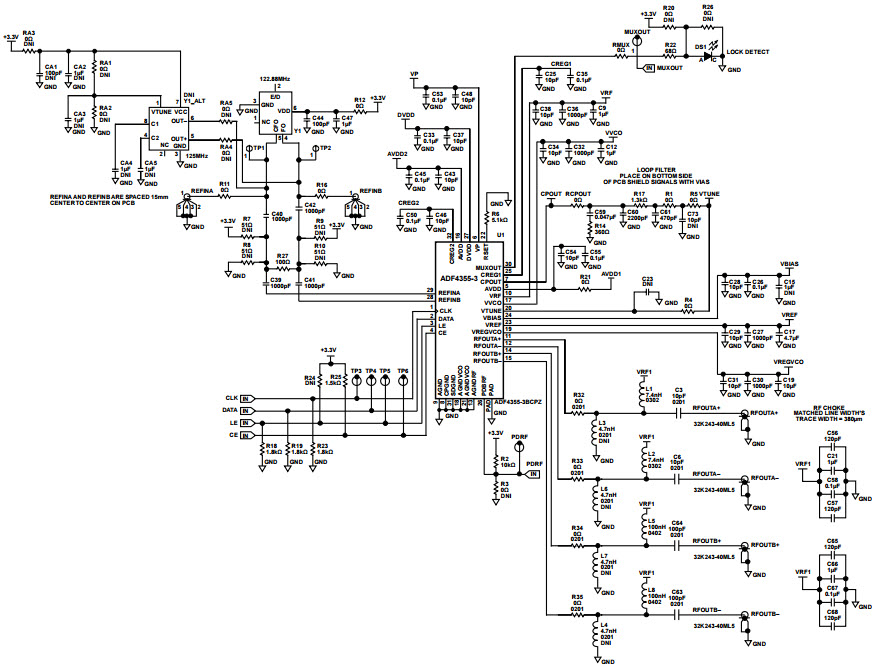

Analog Devices Inc. EV-ADF4355-3SD1Z Reference Design 4

Applications:

Clock and Timing >

PLL Clock Generator

End Products:

Instrumentation and MeasurementSatelliteTest EquipmentMicrowave LinkWireless InfrastructureClock and Timing Devices

ECAD Model:

Buy

Description

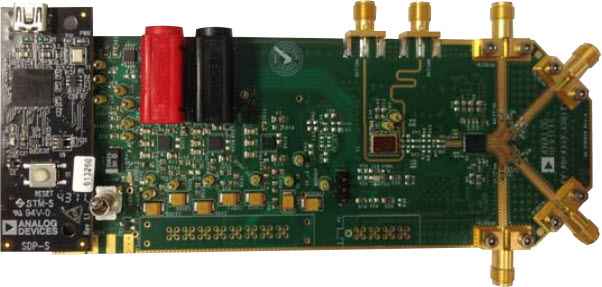

The Analog Devices EV-ADF4355-3SD1Z Evaluation Board is designed to evaluate the ADF4355-3 Fractional-N/Integer-N PLL Frequency Synthesizer. This board is ideal for instrumentation and measurement applications, providing a wide range of frequency synthesis capabilities. It features a wide frequency range of 35 MHz to 6.8 GHz, a low phase noise of -150 dBc/Hz at 10 kHz offset, and a fast settling time of 1 μs. The board also includes a USB interface for easy programming and control. The EV-ADF4355-3SD1Z Evaluation Board is a great tool for engineers and researchers looking to explore the capabilities of the ADF4355-3 Frequency Synthesizer.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Factory Lead Time
8 Weeks
Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)
Number of Pins
0
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Timing
Base Part Number
ADF4355
Function
Frequency Synthesizer
Utilized IC / Part
ADF4355-3
Supplied Contents
Board(s), Cable(s)
Evaluation Kit
Yes
Primary Attributes
Single Fractional-N and Integer-N PLL with VCO
Secondary Attributes
Graphical User Interface
RoHS Status
ROHS3 Compliant
REACH SVHC
No SVHC
Lead Free
Contains Lead

0 Similar Products Remaining

Technical Documents

Associated Products

Part Number	Manufacturer	Description	Stock	RFQ
ADF4355-3BCPZ	Analog Devices Inc.	IC INTEGRATED SYNTH/VCO 32LFCSP	30000	RFQ
ADM7150ACPZ-3.3-R2	Analog Devices, Inc.		2202	RFQ
ADM7150ACPZ-5.0-R2	Analog Devices Inc.	LDO Regulator Pos 5V 0.8A 8-Pin LFCSP T/R	0	BUY
24LC32A-I/MS	Microchip Technology	MICROCHIP - 24LC32A-I/MS - EEPROM, 32 Kbit, 4K x 8bit, Serial I2C (2-Wire), 400 kHz, MSOP, 8 Pins	4	RFQ
ADM7150ACPZ-3.3-R7	Analog Devices Inc.	IC REG LINEAR 3.3V 800MA 8LFCSP	1236	RFQ
ADM7150ACPZ-5.0-R7	Analog Devices Inc.	IC REG LINEAR 5V 800MA 8LFCSP	0	RFQ
