Maxim Integrated MAX14826EVKIT#EVAL KIT FOR MAX14826

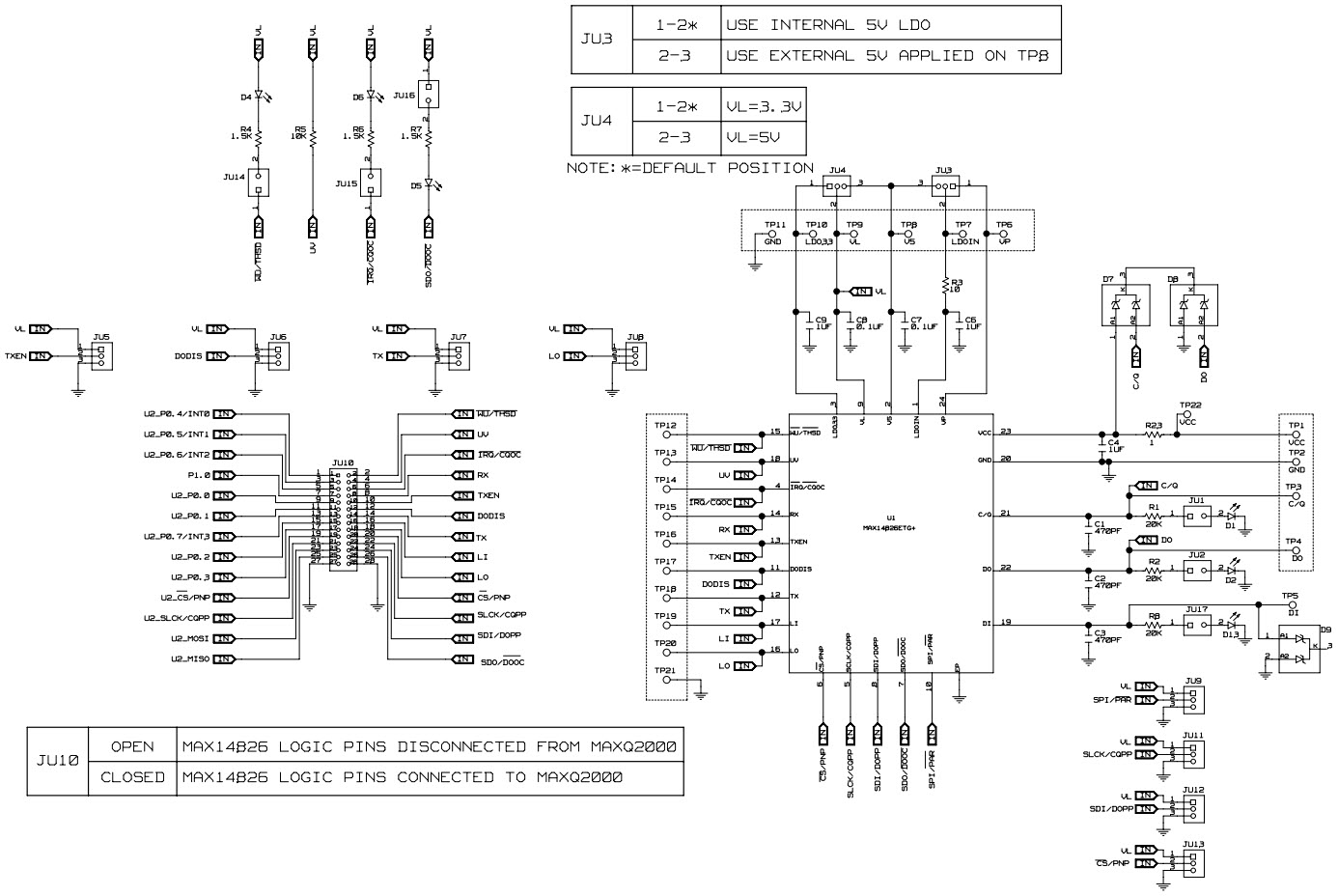

Maxim Integrated MAX14826EVKIT# Reference Design 2

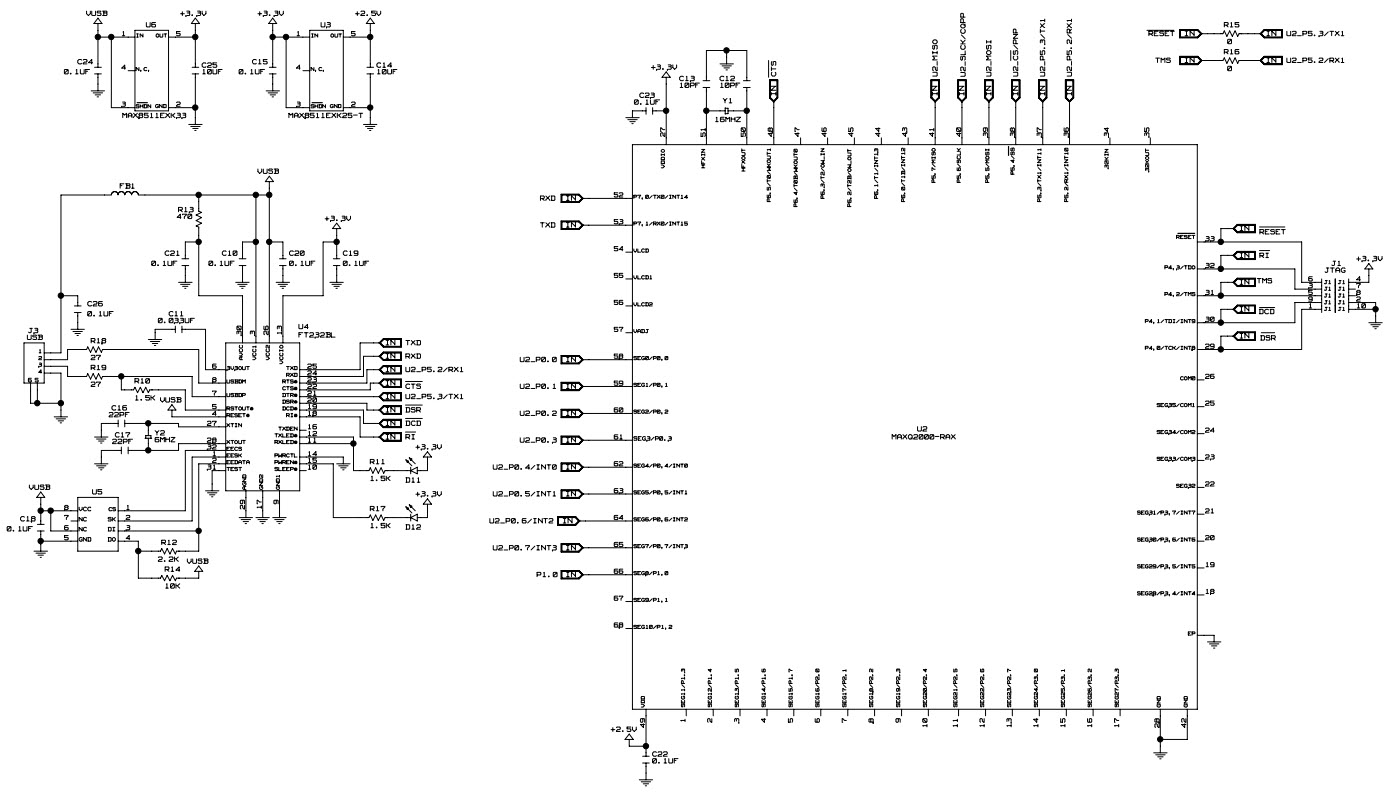

Maxim Integrated MAX14826EVKIT# Reference Design 1
Maxim Integrated MAX14826EVKIT# Reference Design 2
Maxim Integrated MAX14826EVKIT# Reference Design 1
Maxim Integrated MAX14826EVKIT# Reference Design 1
Maxim Integrated MAX14826EVKIT# Reference Design 2

Applications:

Interface >

IO-Link Interface

End Products:

IndustrialIO-Link ActuatorsIndustrial ActuatorIO-Link SensorsIndustrial Sensor

ECAD Model:

Buy

Description

The MAX14826EVKIT-EVKIT# is an evaluation kit for the MAX14826 IO-Link Device Transceiver, designed for industrial automation applications. This kit includes a MAX14826EVKIT# board, a MAX14826EVKIT# daughter board, and a USB-to-serial cable. The MAX14826EVKIT# board features a MAX14826 IO-Link transceiver, a USB-to-serial converter, and a power supply. The MAX14826EVKIT# daughter board provides a convenient way to connect the MAX14826 to external devices. The USB-to-serial cable allows for easy communication between the MAX14826 and a PC. This evaluation kit is ideal for testing and evaluating the MAX14826 IO-Link Device Transceiver in industrial automation applications.

Specifications

Maxim Integrated technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated .
  • Type
    Parameter
  • Factory Lead Time
    6 Weeks
  • Published
    2009
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Interface
  • Function
    Transceiver, IO-Link®
  • Utilized IC / Part
    MAX14826
  • Supplied Contents
    Board(s), Cable(s)
  • Evaluation Kit
    Yes
  • Primary Attributes
    IO and SPI Interface Terminals
  • Embedded
    Yes, MCU, 16-Bit
  • Secondary Attributes
    Graphical User Interface
  • REACH SVHC
    Unknown
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
Technical Documents

Associated Products

Part NumberManufacturerDescriptionStockRFQ
MAX8511EXK25
Maxim Integrated0RFQ
FT232BL-REEL
FTDI, Future Technology Devices International LtdIC USB FS SERIAL UART 32-LQFP500RFQ
MAX8511EXK25 T
Maxim IntegratedLDO Voltage Regulators 120mA Linear Regulator43BUY
MAX8511EXK33 T
Maxim IntegratedIC REG LINEAR 3.3V 120MA SC70-56180BUY
AT93C46EN-SH-B
Microchip TechnologyIC EEPROM 1K SPI 2MHZ 8SOIC939BUY
FT232BL-TRAY
FTDI, Future Technology Devices International LtdUSB-to-UART 1-CH 128byte FIFO 5V 32-Pin LQFP Tray83BUY
