Maxim Integrated MAX14827EVKIT#EVAL BOARD FOR MAX14827

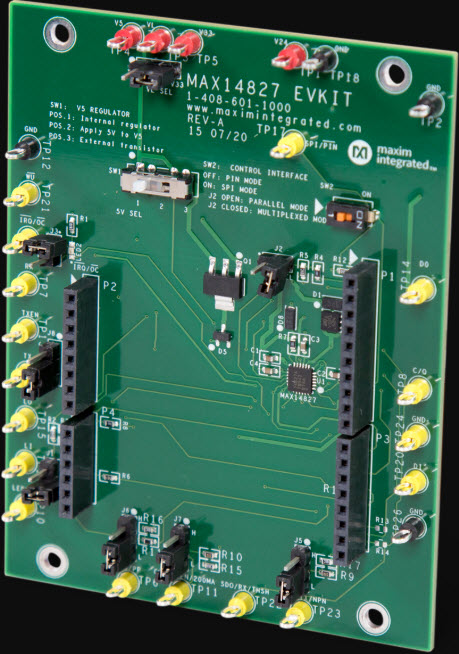

Maxim Integrated MAX14827EVKIT# Reference Design 4

Maxim Integrated MAX14827EVKIT# Reference Design 1

Maxim Integrated MAX14827EVKIT# Reference Design 2

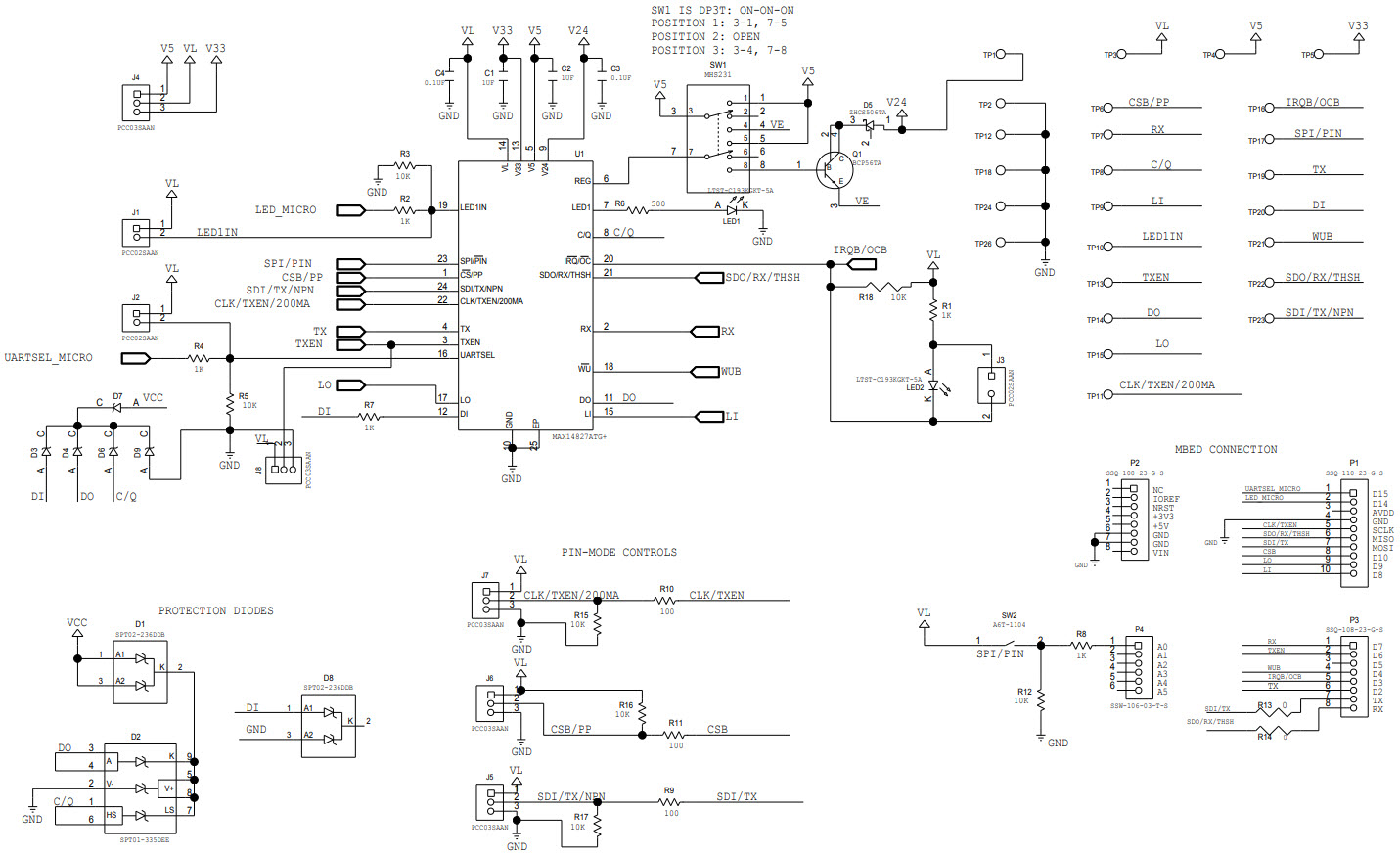

Maxim Integrated MAX14827EVKIT# Reference Design 3

Applications:

Interface >

IO-Link Interface

End Products:

IndustrialIO-Link ActuatorsSafety ApplicationsIO-Link SensorsIndustrial Sensor

ECAD Model:

Buy

Description

The MAX14827EVKIT-EVKIT# is an evaluation kit for the MAX14827/MAX14827A IO-Link Device Transceiver, designed for industrial automation applications. This kit includes a MAX14827/MAX14827A IO-Link Device Transceiver, a MAX14827EVKIT# board, and a USB-to-serial cable. The MAX14827/MAX14827A IO-Link Device Transceiver is a low-power, low-cost, single-channel transceiver that supports the IO-Link protocol. The MAX14827EVKIT# board provides a platform for evaluating the performance of the MAX14827/MAX14827A IO-Link Device Transceiver. The USB-to-serial cable allows for easy connection to a PC for configuration and data logging. This evaluation kit is ideal for industrial automation applications that require reliable, low-power, low-cost IO-Link communication.

Specifications

Maxim Integrated technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated .
