What Makes Time Delay Relays Essential in Automation

You often depend on precise timing in automation to keep machines running safely and smoothly. Time delay relays give you control over when circuits turn on or off, which helps prevent equipment failures and keeps processes reliable. For example, in a factory, a time delay relay can control the order in which machines start, avoiding power surges. Studies show that time delay relays can reduce operating delays in protection systems, making your automation setup more efficient and safe. When you use time delay relays, you gain better process control and fewer errors.

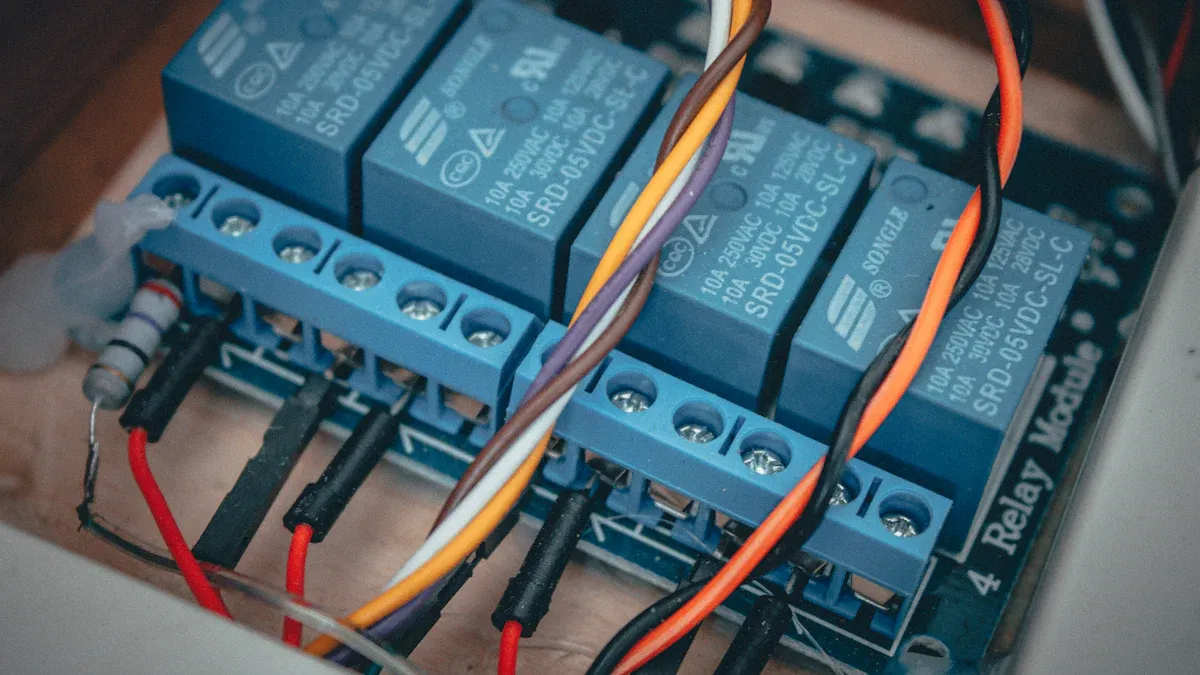

What Are Time Delay Relays?

Basic Definition

You use time delay relays when you need to control the timing of electrical circuits. These devices have built-in timing functions that let you delay the opening or closing of contacts. This means you can decide exactly when a circuit turns on or off. For example, a normally open, timed-closed contact stays open until a set time passes after you apply power. Only then does it close. This built-in time delay function is what makes these relays special.

Time-delay relays are control devices that help you manage when machines or lights start and stop. You find them in many automation systems because they make sure things happen in the right order and at the right time.

You can choose from different types of time delay relays, such as ON-delay, OFF-delay, one-shot, interval, and recycle timers. Some models, like the NJS1 and JSZ3, use electronic controls and microcomputers for precise timing. These relays work in factories, commercial buildings, and even farms. They help you keep processes safe and efficient by controlling when power flows to different parts of your system.

How Time Delay Relays Work

A time delay relay works by waiting for a set period before it changes the state of its contacts. Here is how the process usually happens:

1. You send an input signal to the relay, either electrical or mechanical.

2. The timing mechanism starts. This can be electronic, using parts like capacitors and microcontrollers, or electromechanical, using motors or clockwork.

3. The relay counts down the preset delay. During this time, the contacts stay in their original position.

4. When the delay ends, the relay switches its contacts. They either close or open, depending on how you set it up.

5. The relay keeps this new state until you remove the input signal or reset the relay.

You often set the delay using a dial or digital control. Some timing relays let you pick the type of delay, such as delay on or delay off. For example, in a delay off circuit, the relay keeps power flowing for a short time after you turn off the switch. This is useful in conveyor belts, where you want the belt to run a few seconds longer to clear all items. In emergency ventilation, a timer delay relay keeps fans running to remove fumes even after you shut down the main system.

You also see timing relays in lighting systems. They keep lights on for cleaning or security after business hours. In safety systems, they maintain emergency lights and alarms for a safe evacuation period. These examples show how time-delay relays help you control circuits and manage power flow with precision.

Tip: When you use timing relays, you can avoid mistakes and make your automation system safer and more reliable.

Time-delay relays use different mechanisms to achieve their timing. Some use simple electronic parts like capacitors and resistors. Others use advanced chips like the 555 timer for more accurate control. You can find single-function relays that do one type of delay or multi-function relays that let you choose from several timing modes.

By understanding how time delay relays work, you can design better automation systems. You gain control over when machines start, stop, or run for a set time. This helps you improve safety, save energy, and reduce errors in your processes.

Types of Time-Delay Relays

You can choose from several types of time-delay relays, each designed for different needs in automation. The two main types are electromechanical and electronic timing relays. Both types help you control when machines start or stop, but they work in different ways.

Electromechanical Time Delay Relays

Electromechanical time-delay relays use moving parts, such as springs and gears, to create a delay. You often see these relays in automotive, aerospace, and consumer electronics because they offer precision and long life. Technical journals show that you can measure their delay by using special equipment, like a fast-acting relay controlled by an Arduino. These studies reveal that factors like gear backlash and mechanical stiction can affect the delay. You can rely on electromechanical relays for tasks that need durability and versatility.

Electronic Time Delay Relays

Electronic time-delay relays use digital circuits and solid-state parts. You get high precision and easy adjustments with these relays. Many models let you set the delay using an OLED display and pushbuttons. You can also find features like NFC or smartphone app control. Electronic timing relays last longer because they have fewer moving parts. They save space and work well in simple or complex time control applications. You can trust these relays for stable and reliable performance.

Tip: Electronic time-delay relays give you exact time settings and strong customization for your automation projects.

Key Timing Modes

You can use different timing modes to match your process needs. Here are four basic modes:

1. On-delay timers: The on delay timer relay waits for a set time after you apply power before it closes the contacts. You use on-delay timers in assembly lines to start machines in the right order.

2. Off-delay timers: The off delay timer relay keeps the circuit closed for a set time after you remove power. Off-delay timers help equipment cool down before shutting off, which prevents damage.

3. Interval timers: These timing relays turn on for a fixed time, no matter how long you press the button. You find them in washing machines and batch processing.

4. Flasher or repeat cycle timers: These relays turn circuits on and off in a repeating pattern. You see them in warning lights and traffic signals.

Here is a table that shows how time-delay relays fit into different industries:

You can see that time-delay relays play a big role in many industries. They help you synchronize operations, improve safety, and boost energy efficiency.

Time Delay Relay Circuit Functions

Time delay relay circuit functions help you control when a device turns on or off. You use these circuits to manage the exact moment contacts open or close. This control keeps your automation system safe and efficient. You can set the timing for each action, so machines work in the right order.

On-Delay and Off-Delay

You often use an on-delay time delay relay circuit when you want a device to start after a set time. When you send a trigger signal, the circuit waits for your chosen delay before closing the contacts. This prevents machines from starting too soon. For example, you can use an on-delay relay to start a conveyor belt only after another machine finishes its job.

An off-delay time delay relay circuit works in the opposite way. When you remove the trigger signal, the circuit keeps the contacts closed for a set time before opening them. This lets equipment finish important tasks, like cooling down, before shutting off. You can see this in fans that keep running for a few minutes after you turn off the main switch.

To make sure your time delay relay circuit works with precision, you can test it using these steps:

1. Set the timer relay to your desired delay.

2. Apply a trigger signal and watch the output relay.

3. Use an oscilloscope to check the timing of the output signal.

4. Compare the relay’s delay to a standard clock for accuracy.

5. Repeat the test and record the results for future checks.

Tip: Always follow safety rules and keep a log of your test results to track relay performance.

One-Shot and Interval Timing

A one shot timer relay gives you a single timed output when you send a trigger signal. The time delay relay circuit closes the contacts for a set period, then opens them again, no matter how long you hold the trigger. You use a one shot timer relay to control things like alarms or short bursts of machine action.

Interval timing works a bit differently. When you send a trigger signal, the time delay relay circuit keeps the contacts closed for the full interval, then opens them. This is useful for processes that need a fixed run time, such as mixing or washing cycles.

You can check the accuracy of these circuits by:

1. Setting a high time delay, such as two minutes.

2. Activating the relay with a set voltage and measuring the current.

3. Recording the current before and after the relay operates.

4. Calculating the relay’s power and comparing it to your expected values.

Precise timing in your time delay relay circuit helps you avoid errors and keeps your automation system running smoothly. You can trust these circuits to handle complex tasks with simple controls.

Benefits in Automation

Process Control

You need precise control in automation to make sure each step happens at the right time. Time delay relays help you manage when machines start, stop, or run for a set period. You can use them to control conveyor belts, pumps, or lights. For example, in a bottling plant, you can set a time delay relay to start the filling machine only after bottles move into position. This timing keeps the process smooth and prevents jams.

You can also use time delay relays to stagger the startup of large motors. This method avoids power surges and keeps your system stable. When you set up your automation with these relays, you make sure every part works together in the right order. This level of control helps you avoid mistakes and keeps your production line running without interruptions.

Note: Good process control leads to higher product quality and less waste.

Safety and Reliability

You want your automation system to be safe and reliable. Time delay relays play a big role in this area. They can keep machines running long enough to finish important tasks, like cooling down or clearing materials, before shutting off. For example, in a ventilation system, a time delay relay keeps the fan running for 30 seconds after you turn off the main switch. This extra time removes leftover fumes and keeps the area safe.

Modern time delay relays, such as those from Littelfuse SSAC, use solid-state technology. These relays have no moving parts, so they last much longer than traditional relays. You can expect them to work up to 100 times longer. They also resist shock, vibration, and humidity. This design reduces the chance of failure from worn-out contacts or mechanical problems. When you use these relays, you lower the risk of accidents and keep your system working even in tough conditions.

Tip: Reliable relays mean fewer emergency repairs and less downtime.

Efficiency and Error Reduction

You can boost efficiency and cut down on errors with time delay relays. These devices help you make sure machines only run when needed. This saves energy and reduces wear. In heating and cooling systems, you can test the relay’s function with a simple process:

1. Lower the thermostat until both the compressor and indoor fan are running.

2. Raise the thermostat to stop the compressor.

3. Check that the indoor fan keeps running for at least 30 seconds.

This test shows that the time delay relay works as it should. When the relay operates correctly, your system meets its rated performance and avoids mistakes like shutting off too soon. In factories, fewer errors mean less wasted material and lower costs.

Time delay relays also help you avoid problems caused by human error. You set the timing once, and the relay does the rest. This automatic control keeps your process on track and reduces the need for manual checks.

Callout: Using time delay relays helps you meet efficiency goals and keeps your automation system running smoothly.

You rely on time delay relays to keep your automation systems safe, efficient, and well-controlled. These devices help you manage timing with accuracy, reduce errors, and protect equipment. As industries grow, the demand for timing devices rises.

The timing devices market is expected to reach USD 13.38 billion by 2035, driven by smart manufacturing and new technologies like IoT and 5G.
You can expect even more advanced timing solutions to shape the future of automation. Consider adding time delay relays to your next project for better results.

FAQ

What is the main purpose of a time delay relay?

You use a time delay relay to control when a circuit turns on or off. This helps you manage machines and processes with accurate timing. You can prevent equipment from starting or stopping too soon.

Can you adjust the timing on a time delay relay?

Yes, you can set the timing on most time delay relays. You often use a dial, digital buttons, or a display. This lets you choose the exact delay you need for your process.

Where do you use time delay relays in automation?

You find time delay relays in many places:

• Factory machines

• Lighting systems

• HVAC units

• Safety alarms

These relays help you control timing for better safety and efficiency.

How do you test if a time delay relay works correctly?

You can test a relay by setting a delay, sending a trigger, and watching when the contacts change. Use a stopwatch or timer to check if the relay matches your set delay.
