How do Parking Sensors Work?

Catalog

Ⅰ Introduction

The parking sensor, also called a "parking aid" or "parking assistance system," is primarily composed of ultrasonic sensors, controllers, and displays or audio warning devices. It helps drivers detect obstacles that are invisible in rearview mirrors, informing them of nearby objects through sound alerts or visual displays. The parking sensor eliminates the challenges drivers face when checking their surroundings while parking, reversing, or starting the vehicle, and helps compensate for blind spots and limited visibility. Modern parking sensors have become standard equipment in many vehicles, significantly reducing parking-related accidents and property damage. However, parking sensors do have certain limitations, including difficulty detecting very low objects, thin obstacles like poles or cables, and sharp ridges or drop-offs.

Ⅱ Working principle of parking sensors

Parking sensors operate using ultrasonic technology, similar to how bats navigate using echolocation. When reversing or parking, ultrasonic sensors installed on the vehicle's bumpers (typically rear, but increasingly also front and side) emit high-frequency sound waves (typically between 40-48 kHz) toward potential obstacles. These sound waves travel through the air and reflect back when they encounter an object. The sensors receive these reflected waves and measure the time elapsed between transmission and reception.

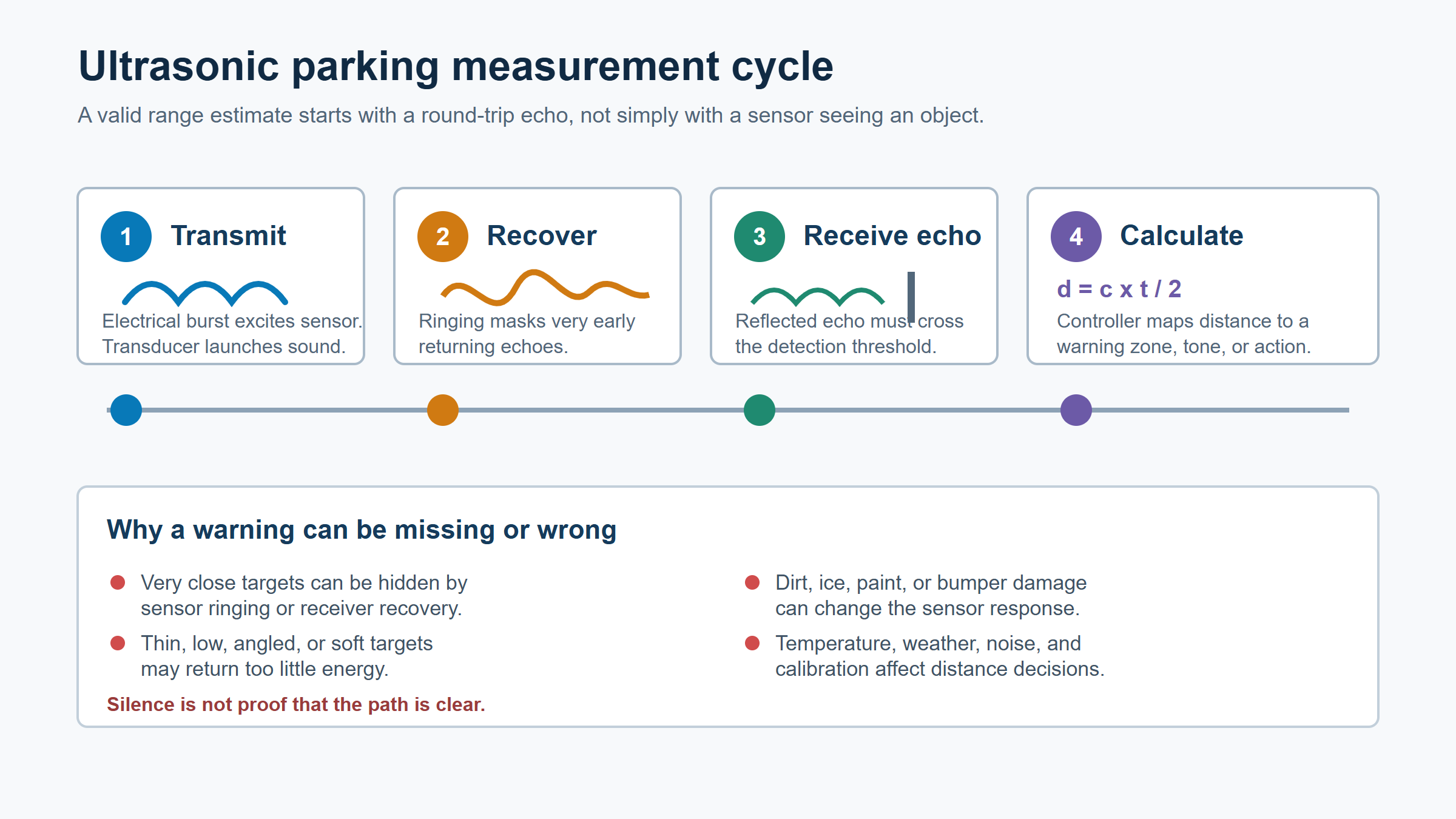

Working of the parking sensor

When the vehicle is shifted into reverse gear (or when activated manually in some systems), the parking sensor system automatically engages. The controller sends electrical signals to the ultrasonic sensors mounted on the rear bumper, triggering them to emit ultrasonic pulses. When these waves encounter an obstacle, they reflect back to the sensors. The system calculates the distance to the obstacle using the formula: Distance = (Speed of Sound × Time) ÷ 2. The speed of sound in air is approximately 343 meters per second (at 20°C), though the system compensates for temperature variations. The data is processed by a microcontroller unit (MCU), which then displays the distance and direction of obstacles on a visual display and/or triggers audio warnings with increasing urgency as the vehicle approaches the obstacle. Modern systems typically begin detecting objects at distances of 1.5-2.5 meters and provide continuous updates until the vehicle is within 20-30 centimeters of the obstacle.

Ⅲ The main functions of parking sensors

Parking sensor

1. Accurate distance measurement: Precisely measures the distance between the vehicle and the nearest obstacle, typically with accuracy within ±2-3 centimeters in optimal conditions;

2. Progressive warning system: Provides graduated alerts as the vehicle approaches obstacles - intermittent beeps at safe distances, increasing in frequency as proximity decreases, and continuous tones when reaching critical distances (typically 20-30 cm), prompting the driver to brake immediately;

3. Pedestrian safety alerts: Audio warnings can alert pedestrians and other road users to the vehicle's movement, enhancing safety in crowded parking areas;

4. Multi-zone detection: Modern systems often feature multiple sensors (typically 4-8) providing coverage across different zones, allowing drivers to identify the specific location of obstacles;

5. Self-diagnostic capability: Advanced systems perform self-checks to ensure all sensors are functioning properly and alert drivers to any malfunctions.

Ⅳ Basic components of parking sensors

The parking sensor is a crucial safety device that assists drivers during parking and reversing maneuvers. It notifies drivers of nearby obstacles through audio alerts or visual displays, eliminating the difficulties associated with limited visibility and blind spots. A typical parking sensor system consists of three main components: ultrasonic sensors, a central controller (ECU), and output devices (displays and/or buzzers).

Components of parking sensors

1. Ultrasonic sensors

The ultrasonic sensors are the "eyes" of the parking system. Their primary function is to transmit and receive ultrasonic signals, then relay this information to the main controller for processing and display. Modern parking systems typically use 4 to 8 sensors strategically positioned around the vehicle's bumpers.

Working of the ultrasonic sensor

When the controller sends an electrical signal to an ultrasonic sensor, the piezoelectric element within the sensor vibrates at ultrasonic frequencies (typically 40-48 kHz), generating ultrasonic waves. Due to the circular structure of the piezoelectric element, the emitted ultrasonic waves have directional characteristics, with the beam cross-section forming an approximately elliptical pattern. This directional nature means each sensor has a limited detection range. Typically, the detection angle on the horizontal plane is approximately 120°, while the vertical plane coverage is about 60°, as illustrated in the diagram above.

Most modern systems use transceiver-integrated sensors, meaning the same ultrasonic sensor handles both transmission and reception of ultrasonic waves. This design simplifies installation and reduces system complexity.

In integrated sensor systems, typically only two wires connect each ultrasonic sensor to the controller. Both the transmitted electrical signal and the returned echo signal pass through these two wires to the controller. However, this design presents a challenge: both the transmitted signal and the residual vibrations (aftershock) of the ultrasonic sensor can interfere with or mask the echo signal. This interference is why parking sensor systems typically cannot detect objects closer than 20-30 centimeters. Below this minimum distance, the system cannot distinguish between the transmitted signal, aftershock, and the actual echo, resulting in a continuous warning tone.

In theory, minimizing aftershock would reduce the minimum detection distance. Ideally, eliminating aftershock entirely would maximize the sensor's detection range. However, this would prevent the system from verifying sensor functionality during self-diagnostics. Therefore, manufacturers intentionally design sensors with controlled aftershock characteristics. The controller uses these aftershock signals to verify sensor integrity during system self-checks. The controller compares detected aftershock signals against preset parameters to determine if each sensor is functioning correctly, alerting the driver through buzzer patterns if any sensor fails the diagnostic test.

It's important to understand that due to the directional nature of ultrasonic beams and the inherent aftershock characteristics of ultrasonic sensors, parking sensor systems are not infallible. They have detection blind spots, particularly for very low objects (below sensor height), thin vertical objects like cables or narrow poles, and objects with sound-absorbing surfaces. This is why many modern vehicles integrate parking sensors with backup camera systems, providing a more comprehensive and intuitive assessment of the vehicle's surroundings.

2. Controller (ECU)

The controller, or Electronic Control Unit (ECU), is the brain of the parking sensor system. It processes incoming signals to calculate the precise distance and orientation between the vehicle and detected obstacles. The controller sends sine wave pulses to each sensor, processes the received echo signals, calculates corresponding distance values, and communicates with the display and audio warning devices. While different manufacturers may use varying controller designs, the fundamental operating principles remain consistent across systems.

In automotive applications, the controller is typically installed near or integrated with the dashboard electronics, while ultrasonic sensors are mounted on the front and rear bumpers, connected via wiring harnesses. These longer wire runs can introduce electrical noise and interference, so the controller must incorporate sophisticated filtering algorithms to eliminate false signals. The controller must also account for the irregular beam pattern of ultrasonic sensors. For instance, sensors may occasionally detect the ground surface when no obstacle is present (commonly called "ground sweep"), showing a fixed distance of 40-60 cm (the distance from sensor to ground). Advanced control circuits employ various signal processing techniques to maintain adequate system sensitivity while preventing false alarms. Modern controllers also incorporate temperature compensation algorithms, as the speed of sound varies with ambient temperature, and may include features like automatic sensitivity adjustment based on vehicle speed and environmental conditions.

3. Display and buzzer

When sensors detect that the distance between the vehicle and an obstacle has reached a potentially dangerous threshold, the system alerts the driver through visual displays and/or audio warnings. The display provides distance-dependent alerts with varying urgency levels. Modern systems offer several display options:

Audio warnings: Buzzer or beeper systems that increase in frequency as obstacles get closer, typically progressing from slow intermittent beeps (1.5-2m distance) to rapid beeping (0.5-1m) to continuous tones (under 30cm).

LED displays: Simple bar graphs or segmented displays showing distance zones, often color-coded (green for safe, yellow for caution, red for danger).

LCD/Digital displays: Numeric readouts showing precise distances in centimeters or inches, often with graphical representations of the vehicle and obstacle positions.

Integrated infotainment displays: Many modern vehicles display parking sensor information on the central touchscreen, often combined with backup camera feeds and 360-degree surround view systems.

Ⅴ Vehicle backup camera

Over the past decade, parking assistance technology has evolved significantly, with backup cameras becoming increasingly sophisticated and widely adopted. These systems are now standard equipment on most new vehicles in many countries, including being mandated by law in the United States since May 2018 for all new vehicles under 10,000 pounds. The technology has been successfully adapted for various vehicle types, including passenger cars, SUVs, trucks, buses, school buses, RVs, agricultural equipment like combine harvesters and corn harvesters, and construction machinery. Modern backup camera systems offer diverse display options, including integrated infotainment screens, dedicated LCD monitors, digital rearview mirrors, and even augmented reality head-up displays in premium vehicles.

Vehicle backup camera display

The vehicle backup camera system provides drivers with a direct visual representation of the area behind the vehicle during reversing maneuvers, making it one of the most practical safety features available. When the transmission is shifted into reverse, the system automatically activates a high-definition camera mounted at the rear of the vehicle, displaying the live feed on a screen inside the vehicle. This real-time video feed allows drivers to accurately assess rear road conditions and obstacles, making reversing as confident and safe as driving forward.

Modern backup camera systems incorporate several advanced features:

Night vision capability: Infrared or low-light sensors enable clear visibility even in complete darkness, with some premium systems offering color night vision.

Dynamic guidelines: Overlay lines on the display that move with the steering wheel, showing the vehicle's projected path and helping drivers navigate into tight spaces.

Wide-angle lenses: Typically 120-170 degree field of view, providing comprehensive rear coverage while minimizing distortion.

High-definition resolution: Modern cameras offer 720p to 1080p resolution, with some premium systems featuring 4K cameras for exceptional clarity.

Weather resistance: Professional-grade cameras feature IP67 or IP69K ratings, providing excellent protection against water, dust, mud, and extreme temperatures, with heated lenses to prevent fogging and ice buildup.

Multiple camera integration: Advanced systems can support multiple cameras (front, rear, and side-mounted) for comprehensive vehicle monitoring. The display can show individual camera feeds or combine them into a composite view.

360-degree surround view systems: Premium vehicles now offer bird's-eye view systems that stitch together feeds from multiple cameras to create a virtual overhead view of the vehicle and its surroundings. These systems eliminate blind spots by providing simultaneous views from all angles - front, rear, left, and right. Users can switch between individual camera views or composite displays using touchscreen controls or steering wheel buttons, with some systems offering split-screen configurations showing multiple angles simultaneously.

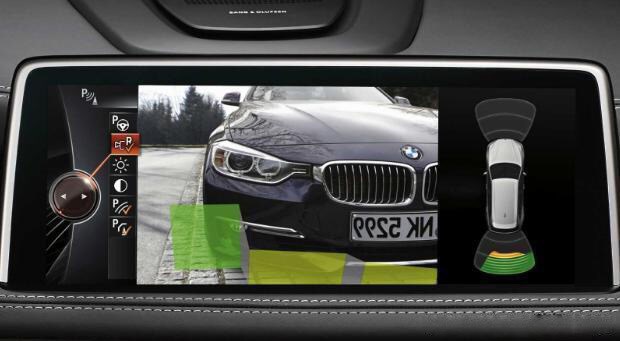

Integration with parking sensors: Many modern systems combine visual camera feeds with parking sensor data, overlaying distance measurements and warning zones on the video display for comprehensive situational awareness.

Ⅵ Comparison of vehicle backup camera and parking sensor

1. Advantages and disadvantages of parking sensors

Advantages:

Parking sensors provide real-time detection of obstacles around the vehicle, alerting drivers through audio and visual cues. This allows drivers to maintain awareness of their surroundings without constantly looking at a display screen. Modern vehicles often feature comprehensive sensor coverage with ultrasonic sensors at both front and rear bumpers, and increasingly on the sides as well. Front sensors can automatically activate at low speeds (typically below 10-15 km/h), significantly enhancing safety during low-speed maneuvering in parking lots and urban environments. The audio-based warning system allows drivers to keep their eyes on their surroundings rather than focusing on a screen, which can be particularly valuable in busy parking situations.

Parking sensor installation

Disadvantages:

However, parking sensors have notable limitations. Accuracy can be affected by various factors including sensor angle, surface texture of obstacles, and environmental conditions like heavy rain, snow, or extreme temperatures. Sensors may trigger false alarms or fail to detect certain objects. They cannot reliably detect:

• Very low obstacles below the sensor mounting height (typically 45-60cm from ground)

• Thin vertical objects like cables, narrow poles, or chain barriers

• Objects with sound-absorbing surfaces (cloth, foam, snow)

• Drop-offs, ditches, or sudden changes in ground level

• Overhanging obstacles like tree branches, awnings, or protruding architectural features

A common scenario illustrating these limitations: when reversing near a building with a protruding balcony or window security bars mounted 80-100cm above ground level, sensors may only detect the wall surface, indicating safe distance, while the vehicle's upper body is actually approaching the protruding obstacle. Similarly, parking near loading docks or areas with ground-level drop-offs can be hazardous as sensors cannot detect the absence of ground surface.

2. Advantages and disadvantages of vehicle backup cameras

Advantages:

Backup cameras provide an intuitive, direct visual representation of the area behind the vehicle, which many drivers find easier to interpret than audio warnings alone. The visual feedback allows drivers to see the actual distance to obstacles and identify what type of object is present - whether it's another vehicle, a person, a shopping cart, or a stationary object. This visual context is invaluable for making informed decisions while maneuvering.

Advanced backup camera systems offer dynamic trajectory lines that adjust based on steering wheel position, showing drivers exactly where their vehicle will travel. This feature is particularly helpful for novice drivers or when navigating into tight parking spaces. The lines typically show the vehicle's width and projected path, with color coding to indicate safe (green), caution (yellow), and danger (red) zones.

Installation of modern backup cameras has become relatively straightforward, with wireless options eliminating the need for running video cables through the vehicle. Basic systems require only power connection to the reverse light circuit, with the camera automatically activating when reverse gear is engaged. More sophisticated integrated systems connect to the vehicle's CAN bus for seamless integration with factory infotainment systems.

Backup cameras excel at detecting obstacles that parking sensors miss, including low objects, drop-offs, and overhanging obstacles. They also provide better detection of children, pets, and other low-profile hazards that are particularly dangerous in residential areas.

Disadvantages:

Despite their advantages, backup cameras have significant limitations:

Limited field of view: Even wide-angle cameras cannot show the entire area around the vehicle. Blind spots exist along both sides of the vehicle and in areas directly adjacent to the rear bumper. The camera's mounting position means objects very close to the bumper may be out of frame.

Depth perception challenges: 2D camera displays can make it difficult to accurately judge distances, especially for drivers unfamiliar with the system. Wide-angle lenses can also create distortion that makes objects appear farther away than they actually are.

Requires visual attention: Unlike parking sensors that provide audio warnings, cameras require drivers to look at the display screen, which means taking eyes off side mirrors and windows. This can be problematic in busy environments where threats may approach from multiple directions.

Weather and maintenance issues: Camera lenses can become obscured by dirt, mud, snow, or water droplets, significantly reducing visibility. While many modern cameras include heating elements and water-repellent coatings, they still require regular cleaning for optimal performance.

Lighting limitations: Although most backup cameras include night vision capabilities, image quality can still be compromised in very low light conditions or when facing bright lights that cause glare.

For optimal safety, drivers should not rely solely on the backup camera display. It's essential to also check side mirrors for blind spot coverage and use the interior rearview mirror to monitor the upper rear area of the vehicle. A comprehensive approach using all available mirrors and the camera system provides the most complete awareness of the vehicle's surroundings.

Ⅶ Modern advances in parking assistance technology

The parking assistance landscape has evolved dramatically since 2020, with several cutting-edge technologies now available:

1. Automated parking systems: Many modern vehicles now offer semi-autonomous or fully autonomous parking capabilities. These systems use a combination of ultrasonic sensors, cameras, and sometimes radar to identify suitable parking spaces and execute parking maneuvers with minimal or no driver input. The driver typically only needs to control the accelerator and brake while the system handles steering.

2. 360-degree surround view with 3D visualization: Advanced systems now offer three-dimensional bird's-eye views, creating a virtual model of the vehicle and its surroundings from multiple camera angles. Some premium systems even allow drivers to adjust the viewing angle and zoom level for better situational awareness.

3. Augmented reality displays: Cutting-edge systems overlay parking guidance information directly onto the camera feed or even onto the windshield via head-up displays, showing virtual parking lines, distance measurements, and directional arrows in real-time.

4. Remote parking assist: Some vehicles now allow drivers to park or retrieve their vehicle remotely using a smartphone app or key fob, useful for tight parking spaces where opening doors would be difficult.

5. AI-enhanced object recognition: Modern systems incorporate artificial intelligence to better identify and classify objects, distinguishing between pedestrians, vehicles, shopping carts, and other obstacles, and prioritizing warnings accordingly.

6. Integration with ADAS: Parking sensors and cameras are increasingly integrated with broader Advanced Driver Assistance Systems (ADAS), sharing data with features like automatic emergency braking, cross-traffic alert, and blind-spot monitoring for comprehensive safety coverage.

Ⅷ Recommendations

For basic needs: If you prefer simple installation and primarily need assistance with rear visibility, a backup camera system provides excellent value and intuitive operation.

For audio-focused assistance: If you're comfortable using mirrors and prefer audio cues that don't require looking at a screen, parking sensors offer hands-free operation and work well in conjunction with traditional mirror checks.

For comprehensive coverage: A combined system with both parking sensors and backup camera provides the most complete protection, compensating for each technology's weaknesses with the other's strengths.

For optimal safety (recommended): Install both parking sensors and a backup camera system. This combination offers redundant safety measures where the camera provides visual confirmation of obstacles while sensors offer continuous audio alerts that don't require looking at a screen. When reversing, use the camera to accurately judge distances and identify obstacles, while simultaneously monitoring side and interior mirrors for comprehensive awareness. The parking sensor audio alerts provide additional safety when your attention is focused on mirrors rather than the display screen.

Modern vehicles increasingly come standard with integrated systems that combine both technologies, often with additional features like cross-traffic alert and automatic emergency braking. Many newer vehicles display both the camera feed and parking sensor information simultaneously on a split screen or overlay the sensor data on the camera image, providing comprehensive situational awareness. Some premium systems even integrate 360-degree cameras with ultrasonic sensors and radar for complete coverage around the vehicle.

For new vehicle purchases: Look for vehicles with factory-integrated parking assistance packages that combine multiple technologies. These typically offer better integration, reliability, and warranty coverage compared to aftermarket installations.

For aftermarket installations: Choose reputable brands with good warranty coverage. Consider wireless camera systems for easier installation, and ensure parking sensors are properly calibrated for your specific vehicle model.

Important reminder: Regardless of which technology you use, parking assistance systems are aids, not replacements for careful driving. Always remain attentive, check all mirrors, look over your shoulder when possible, and be prepared to stop immediately if you detect any hazard. Regular maintenance of sensors and cameras (keeping them clean and checking for damage) is essential for reliable operation.
