Analog Devices Inc. AD9266-40EBZBOARD EVAL FOR AD9266-40

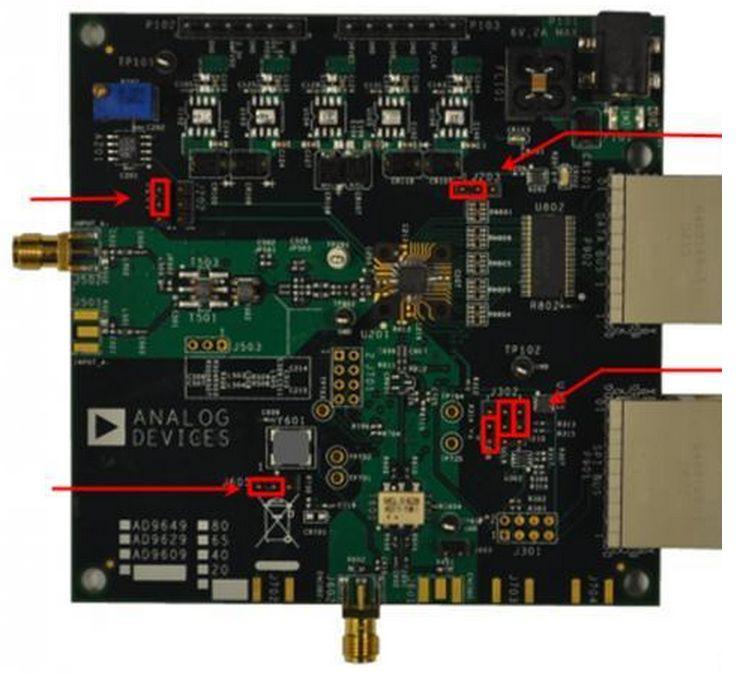

Analog Devices Inc. AD9266-40EBZ Reference Design 1

Applications:

Data Conversion >

Analog to Digital Conversion

End Products:

AutomotiveWiMAX/Wireless BroadbandMedical ImagingElectrocardiograph Battery PoweredUltrasound ImagingMobile Internet DeviceActive AntennaRadar SystemCommunications and Telecom

ECAD Model:

Buy

Description

The Analog Devices AD9266-40EBZ Evaluation Board is designed to evaluate the performance of the AD9266BCPZ-40, a single-channel, 16-bit, 40 MSPS analog-to-digital converter. This automotive and transportation grade converter is ideal for applications such as automotive infotainment, advanced driver assistance systems, and radar systems. The evaluation board features a wide range of input and output connectors, allowing for easy connection to external components. It also includes a power supply, reference voltage, and a USB interface for programming and data acquisition. The board is designed to provide a comprehensive evaluation of the AD9266BCPZ-40, allowing users to quickly and easily evaluate the performance of the converter.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
LAST TIME BUY (Last Updated: 1 month ago)
Number of Pins
0
Packaging
Box
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Base Part Number
AD9266
Operating Supply Voltage
6V
Number of Channels
1
Interface
SPI, USB
Operating Supply Current
2.5A
Number of Bits
16
Min Input Voltage
1V
Max Input Voltage
1V
Utilized IC / Part
AD9266
Supplied Contents
Board(s)
Data Interface
SPI
Resolution
2 B
Sampling Rate
40 Msps
Evaluation Kit
Yes
Sampling Rate (Per Second)
40M
Number of A/D Converters
1
Input Capacitance
6.5pF
Input Range
2Vpp
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead

0 Similar Products Remaining

Technical Documents

Associated Products

Part Number	Manufacturer	Description	Stock	RFQ
ADP1706ARDZ-3.3-R7	Analog Devices Inc.	IC REG LINEAR 3.3V 1A 8SOIC	105	RFQ
ADA4937-1YCPZ-R7	Analog Devices Inc.	IC ADC DRIVER DIFF 16-LFCSP	6	RFQ
AD1580ARTZ-REEL7	Analog Devices Inc.	ANALOG DEVICES - AD1580ARTZ-REEL7 - Voltage Reference	99	RFQ
ADCLK905BCPZ-WP	Analog Devices Inc.	IC CLK BUFFER 1:1 7.5GHZ 16LFCSP	10086	BUY
AD822BRZ	Analog Devices Inc.	ANALOG DEVICES - AD822BRZ - Operational Amplifier	1510	RFQ
AD822BRZ-REEL7	Analog Devices Inc.	OP Amp Dual GP R-R O/P ±15V/30V 8-Pin SOIC N T/R	6	RFQ
AD822BRZ-REEL	Analog Devices Inc.	IC OPAMP GP 1.9MHZ RRO 8SOIC	1006	RFQ
AD9266BCPZRL7-40	Analog Devices Inc.	IC ADC 16BIT PIPELINED 32LFCSP	28	RFQ
