Analog Devices Inc. ADL5375-15-EVALZEVAL BOARD FOR ADL5375
Applications:
Wireless Communication >
Modulators
End Products:
Communications and TelecomSatelliteBroadband AccessCell BasestationGSMWiMAX Basestation
ECAD Model:
Description
The Analog Devices ADL5375-15-EVALZ Evaluation Board is based on the ADL5375 Quadrature Modulator, which is designed for use in communications and telecom applications. It is capable of operating from 400 MHz to 6 GHz, and provides a maximum output voltage of 1500 mV. The board includes a wide range of features, such as a low-noise amplifier, a low-noise voltage regulator, and a high-performance modulator. It also includes a wide range of test points and connectors for easy evaluation and testing. The board is designed to provide a reliable and accurate performance for a wide range of applications.
Specifications
Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .
- TypeParameter
- Lifecycle StatusPRODUCTION (Last Updated: 1 month ago)
- Factory Lead Time8 Weeks
- MountPCB
- Number of Pins0
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeModulator
- Frequency400MHz~6GHz
- Base Part NumberADL5375
- Supplied ContentsBoard(s)
- Evaluation KitYes
- Radiation HardeningNo
- RoHS StatusROHS3 Compliant
- Lead FreeContains Lead
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| Analog Devices Inc. | IC OPAMP GP 240MHZ RRO SOT23-5 | 45 | RFQ | |
| Analog Devices Inc. | IC OPAMP GP 240MHZ RRO SOT23-5 | 6000 | RFQ |

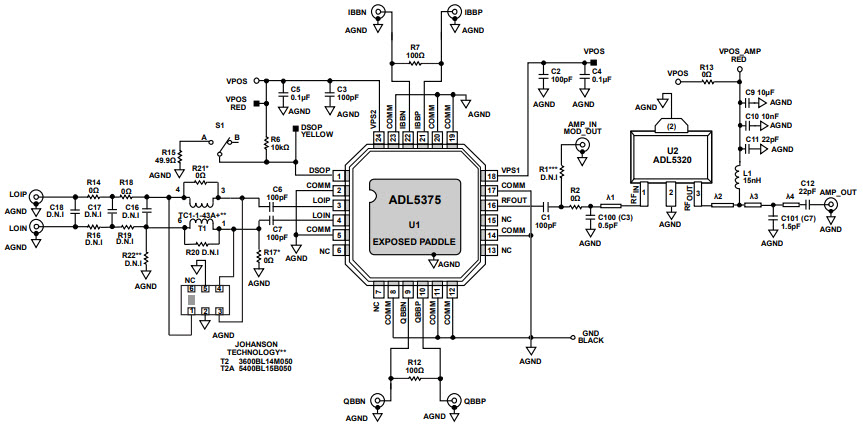

Related Reference Design
