Linear Technology/Analog Devices DC2046A-EDEV BOARD FOR LT4276A/LT4321

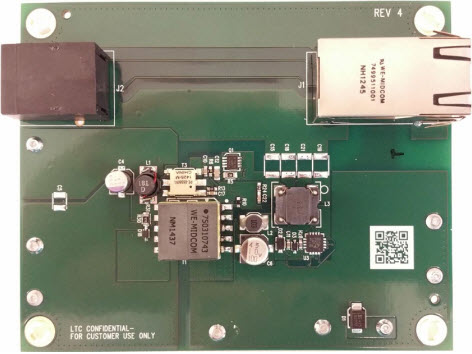

Linear Technology/Analog Devices DC2046A-E Reference Design 6

Linear Technology/Analog Devices DC2046A-E Reference Design 1

Linear Technology/Analog Devices DC2046A-E Reference Design 2

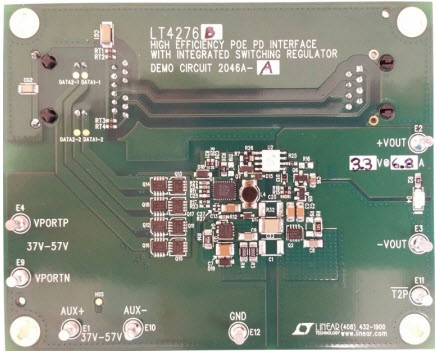

Linear Technology/Analog Devices DC2046A-E Reference Design 3

Linear Technology/Analog Devices DC2046A-E Reference Design 4

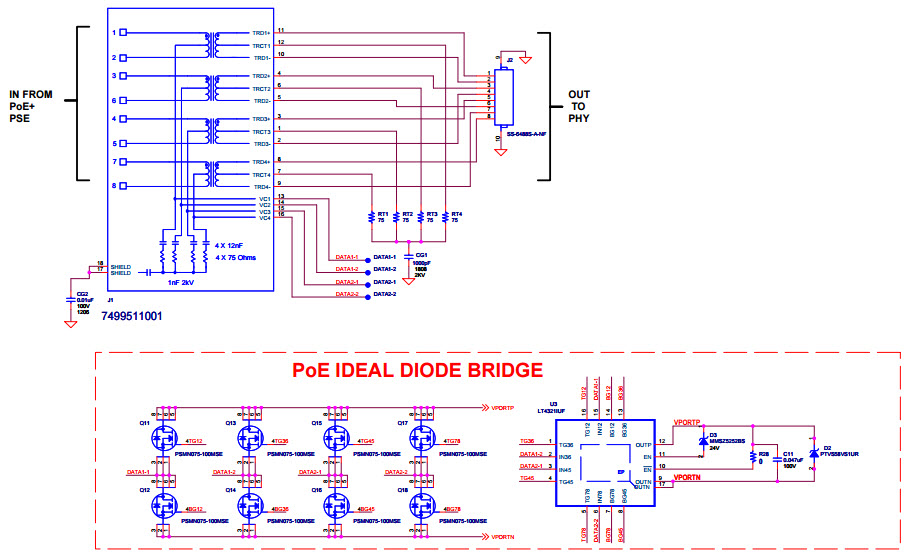

Linear Technology/Analog Devices DC2046A-E Reference Design 5

Applications:

Power Supplies >

DC to DC Single Output Power Supplies

End Products:

Consumer ElectronicsWirelessCommercialPoE Security CameraTemperature Control System

ECAD Model:

Buy

Description

The Analog Devices DC2046A-E Demo Board is a powerful tool for evaluating the LT4276A/LT4321 LTPoE++ (38.7W, 5V/7A) PD with DC/DC and Ideal Diode Bridge. This demo board is designed to provide a complete solution for consumer electronics applications, allowing users to quickly and easily evaluate the performance of the LT4276A/LT4321 LTPoE++ PD. The board features a DC/DC converter and an ideal diode bridge, allowing for efficient power delivery and protection from reverse current. The board also includes a USB-C connector for easy connection to a host device. With the DC2046A-E Demo Board, users can quickly and easily evaluate the performance of the LT4276A/LT4321 LTPoE++ PD, making it an ideal solution for consumer electronics applications.

Specifications

Linear Technology/Analog Devices technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices .
