How to Select a Power Relay That Fits Your Requirements

Choosing the right relay means matching its features to your needs. Power relays control electrical circuits by opening and closing contacts. You often find relays in safety systems where enhanced safety is critical. Good relay selection prevents equipment damage and keeps people safe. Power relays handle high voltages and currents. They help you build reliable systems that work well under different conditions.

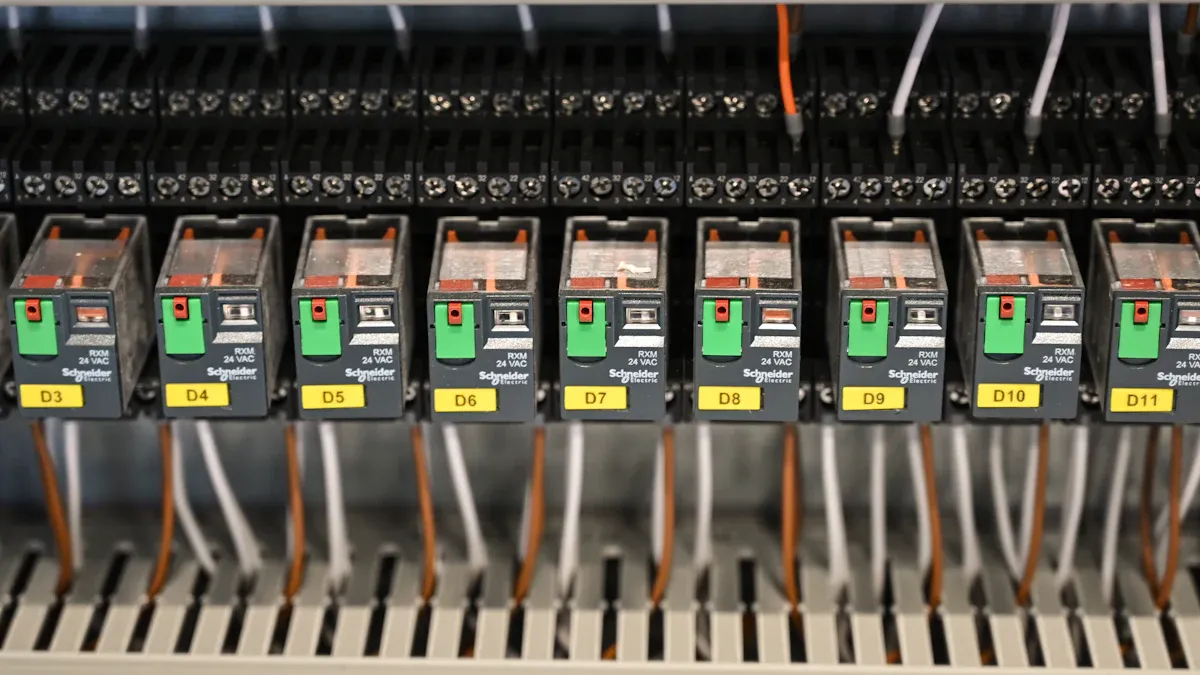

What Are Power Relays

Relay Basics

You use power relays to control electrical circuits by opening or closing contacts. These devices act as switches that let you turn on or off high-power equipment with a low-power signal. Power relays come in several types, such as electromechanical, solid-state, and hybrid relays. Each type has unique features that fit different needs. For example, electromechanical relays use moving parts, while solid-state relays use electronic components for faster switching.

Relays work by energizing a coil, which creates a magnetic field. This field moves an armature, causing the contacts to open or close. You find relay logic in many control systems, using simple rules like AND, OR, and NOT to manage complex tasks. The main parts of relays include coils, armatures, contacts, and springs. These parts work together to provide reliable switching and reset functions.

• In control systems, relays allow you to use a small control signal to switch larger loads.

• Relays provide electrical isolation, which protects sensitive control circuits.

• Most relays handle currents below 15 amperes, making them ideal for many control and automation tasks.

• You can choose from different contact configurations, such as normally open or normally closed, to match your needs.

Common Uses

Power relays play a key role in many real-world applications. In industrial automation, you use relays to control motors, conveyor belts, and safety systems. For example, a manufacturing plant used advanced relays to protect motors from overload, saving thousands of dollars in repairs. In the electric grid, relays detect faults and isolate problems, preventing blackouts and equipment damage.

You also find relays in cars, where they control headlights, starter motors, and climate systems. Home automation uses relays to manage lighting and security. Telecommunications rely on relays for signal routing and isolation. These examples show how different types of relays support safe and efficient operation in many fields.

Application Requirements

Voltage and Current

You need to match the relay’s voltage and current requirements to your application. If you choose a relay with the wrong voltage or current rating, you risk equipment failure or unsafe operation. Relays use numerical indicators to measure voltage and current balance. During normal operation, voltage imbalance is about 0.062 and current imbalance is around 0.27. When a fault happens, these numbers jump much higher, showing the relay’s ability to detect problems quickly. The relay’s protection system checks for changes in voltage and current, including magnitude, frequency, and phase angle. This helps you spot faults before they cause damage.

• Voltage imbalance during faults can reach between 1.4 and 2.99, while current imbalance ranges from 0.25 to 0.8.

• Maximum deviation for phase voltage and current during faults can go from 0.3 to 1.73 per unit.

• Over four months, one relay operated 145 times with 142 correct trips and only 2 failures, showing high reliability.

You should always check the current rating of the relay against your system’s needs. If your application has high current requirements, pick a relay that can handle the load without overheating or failing. Using a relay with the right voltage and current ratings keeps your system safe and dependable.

Tip: Always use manufacturer data sheets to compare your system’s voltage and current requirements with the relay’s ratings.

AC vs DC

You must decide if your application uses AC or DC power. Relays work differently with each type. AC relays handle alternating current, which changes direction many times per second. DC relays control direct current, which flows in one direction. The coil design, contact material, and arc suppression methods differ between AC and DC relays.

• AC relays often use shading coils to reduce buzzing and improve performance.

• DC relays need stronger springs to prevent contacts from sticking due to constant magnetic force.

• Switching DC loads can cause more arcing, so you need relays with special contact materials.

If you use the wrong relay type, you may see faster wear or even failure. Always match the relay to your power source for safe and reliable operation.

Load Type

The type of load you control affects relay selection. Loads can be resistive (like heaters or lights), inductive (like motors or transformers), or capacitive (like certain power supplies). Each load type has different current requirements and switching behaviors.

• Inductive loads create high inrush currents when switched on. You must choose a relay that can handle these surges.

• OMRON data shows that relays have lower rated currents for inductive loads than for resistive loads. This affects the relay’s lifespan.

• The contact material matters. Silver-palladium, silver-nickel, and silver-tin oxide each resist arcing and corrosion differently.

• Electromechanical relays work well for many industrial uses but have shorter mechanical lifetimes. Reed relays switch faster and last longer but can suffer from arcing. Solid State Relays switch fastest but are sensitive to surge currents.

You should always compare the relay’s maximum surge current rating with your load’s expected inrush current. Add a safety margin to ensure long-term reliability. Manufacturer durability curves and switching capacity graphs help you make the right choice.

Note: Matching the relay to your load type and current requirements extends the relay’s service life and improves system safety.

Choosing the Right Relay

When you start choosing the right relay, you need to look at how each type works in real situations. You want to match the relay’s features to your needs for safety, speed, and reliability. The table below compares important factors for different types of pcb relays:

Electromechanical Relays

You often use electromechanical relays when you need strong electrical isolation and high current handling. These relays use moving parts to open and close contacts. They work well in many types of pcb relays, from home appliances to industrial machines. You get a simple design and low cost, but you must check for wear and tear. Mechanical parts can wear out, so you need regular checks. Electromechanical relays can handle high surges and give you clear signs when they fail. They are slower at switching than ssrs, but they last for hundreds of thousands of cycles.

Solid-State Relays

Solid-state relays, or ssrs, use electronic parts instead of moving contacts. You get fast switching and no mechanical noise. Ssrs last longer than electromechanical relays because they have no moving parts. They work best in types of pcb relays where you need quick, silent action, like in sensitive electronics. Ssrs need less maintenance, but they can get hot and may not handle high surges as well as electromechanical relays. You should use ssrs when you want long life and rapid switching.

Specialized Relays

Specialized relays help you solve unique problems. For example, numerical relays process much more data than standard types of pcb relays. They use advanced chips and software to protect, control, and monitor your system. You can program them for different tasks, and they can switch settings automatically. Some specialized relays, like differential or distance relays, give you fast fault detection and high selectivity. When you select the right pcb relay for complex jobs, these advanced features can save you time and money.

Tip: When choosing the right relay, always consider switching speed, durability, and package size. This helps you match the relay to your application and avoid problems later.

Key Specs for Selecting the Right Relay

When selecting the right relay, you need to focus on several key specifications. These specs help you match the relay to your application and ensure safe, reliable operation. Each parameter affects how well the relay performs in your system.

Coil Voltage and Resistance

You must match the relay coil voltage to your control circuit. If the coil voltage does not fit, the relay may not operate correctly. Coil resistance also plays a big role. It affects how much current flows through the coil and how much heat the relay generates.

• Coil current peaks depend on both coil resistance and the voltage you apply.

• The rate at which current rises in the coil shows how quickly the relay will respond.

• If you see abnormal current behavior, check the coil resistance. This can help you spot problems early.

• Coil resistance changes with temperature. As the relay heats up, resistance increases, which can lower the current and affect performance.

Manufacturers often provide graphs that show how coil current and voltage behave over time. You should use these graphs to make sure your control circuit can handle the relay. For DC coils, resistance changes matter more than for AC coils, because AC coils also have inductive reactance.

Tip: Always design your control circuit to handle voltage supply changes and coil resistance tolerances. This ensures the relay works even when temperatures rise or the power supply fluctuates.

Contact Ratings

Contact ratings tell you how much current and voltage the relay contacts can safely handle. You must check both the current rating and voltage rating for your application. If you exceed these ratings, you risk damaging the relay or causing unsafe conditions.

Contact material also matters. Different materials work better for different loads. For example, AgNi (silver-nickel) suits resistive and small inductive loads, while AgSnO2 (silver-tin oxide) handles large surge currents and lamp loads. You should always select the right pcb relay with contact materials that match your load type.

Note: Relay contact ratings are maximum limits. Never operate above these values, even if your voltage is lower. DC loads often need lower ratings because DC arcs are harder to extinguish.

Switching Capacity

Switching capacity shows how much power the relay can switch without damage. You need to consider both steady-state and inrush currents, especially for loads like motors. Motors can draw several times their normal current when starting. If you do not account for this, the relay may fail quickly.

Manufacturers provide switching capacity graphs. These graphs help you compare the relay’s limits with your load’s requirements. For example, a 7.5 kW motor may need a relay or inverter rated for more than 15 kW to handle the inrush current at startup. Using these graphs, you can avoid oversizing and wasting energy.

• Always check the switching capacity for both resistive and inductive loads.

• Adjust for inrush current when switching motors or transformers.

• Use manufacturer data to find the best match for your application.

Switching speed also matters. Electromechanical relays switch slower than ssrs, but they handle surges better. Ssrs switch faster and last longer, but they may not handle high inrush currents as well.

Size and Mounting

Relay size and mounting style affect how you install the relay in your system. You need to choose a relay that fits your available space and matches your installation method. Some relays mount on PCBs, while others use sockets or DIN rails.

You should also consider the environment. If your relay faces vibration or harsh conditions, pick a robust design. Packaging options like dust covers or plastic cases protect the relay from dirt and moisture.

Tip: Always check the relay specifications for size, mounting, and environmental protection. This helps you avoid installation problems and ensures long-term reliability.

By focusing on these key specs, you can select the right pcb relay for your needs. Matching coil voltage, checking contact and switching ratings, and choosing the right size and mounting style all help you build a safe and reliable system. Ssrs offer fast switching and long life, while electromechanical relays handle surges better. Always use manufacturer data and graphs to guide your decision.

Environmental Factors for Relays

Temperature and Humidity

You need to think about temperature and humidity when you select relays. These two factors can change how well your relay works and how long it lasts. High temperatures speed up the aging of insulation inside transformers and relays. If the temperature goes up by just 8 to 10 degrees Celsius, the insulation life can drop by half. This means your relay might fail much sooner than you expect.

Humidity also causes problems. When the air is damp, metal parts inside the relay can start to rust. This rust can damage the contacts and make the relay stop working. Moisture can also lead to tracking and flashover. These are electrical problems that can cause faults and even fires. If you use ssrs in places with high humidity, you must check for corrosion and other damage often.

Here is a table that shows how temperature and humidity affect relay equipment:

You should always check the temperature and humidity ratings for your relay. Some ssrs work better in hot or damp places, but others do not. Pick a relay that matches your environment to avoid early failure.

Protection Ratings

Protection ratings tell you how well a relay can stand up to dust, water, and other harsh conditions. You often see these ratings as IP codes, like IP67 or IP20. The first number shows how well the relay keeps out solid things like dust. The second number shows how well it keeps out water.

If you use ssrs in a factory or outside, you need a high protection rating. This keeps dirt and water from getting inside and causing problems. For example, an IP67 relay can handle dust and even being under water for a short time. A lower rating, like IP20, only protects against fingers and small objects.

Tip: Always match the protection rating of your relay to the place where you will use it. This helps ssrs last longer and work safely.

You should also look for extra features, like sealed cases or special coatings. These features help ssrs resist moisture and dust even more. When you choose the right protection rating, you make sure your relay keeps working, even in tough spots.

Reliability and Maintenance

Testing Relays

Testing relays regularly ensures your system operates reliably and minimizes downtime. Reactive maintenance often leads to higher failure rates, costing you more in repairs and lost productivity. Studies show that preventive maintenance reduces failure rates by three times compared to reactive approaches. Predictive maintenance, which includes relay testing, offers even greater benefits. It can save an additional 8-12% in costs over preventive methods and reduce maintenance expenses by up to 30%.

Relay testing involves checking the coil, contacts, and switching performance. You can use tools like multimeters or specialized relay testers to measure coil resistance and verify contact operation. Functional tests simulate real-world conditions to ensure the relay responds correctly. By identifying issues early, you avoid catastrophic failures that could disrupt operations.

Tip: Implement predictive maintenance programs to improve reliability and achieve a 10x return on investment. These programs nearly eliminate catastrophic equipment failures, ensuring your system maintains high quality and performance.

Regular Inspection

Periodic inspections help you detect early signs of wear and prevent costly failures. Electrical failures can result in downtime costs averaging $336,000 per hour, making regular inspections critical. Quarterly or annual inspections allow you to identify issues like corrosion, pitting, or misalignment before they escalate.

During inspections, focus on visual checks, functional testing, and performance assessments. Look for signs of wear on relay contacts and ensure proper alignment. Cleaning and testing the relay components improve their lifespan and maintain system quality. Maintenance logs provide valuable insights into failure patterns, helping you refine your strategies.

Relays, like other electrical components, benefit from similar maintenance schedules. By following these practices, you reduce unexpected failures and extend equipment life.

Note: Regular inspections not only prevent unplanned outages but also ensure your system operates efficiently, maintaining high-quality standards.

Avoiding Common Mistakes

Mismatched Specs

Choosing relays with mismatched specifications can lead to system failures. You must ensure that the coil voltage matches your control circuit. If the voltage is too high or too low, the relay might not function properly. Exceeding the switching capacity can also cause overheating or damage. Always check the relay's current and voltage ratings against your system's requirements. Using protective components like diodes in relay driver circuits can prevent voltage spikes and prolong relay life.

Ignoring Environment

Environmental factors play a crucial role in relay performance. High temperatures and humidity can degrade relay components, leading to premature failure. Dust and moisture can cause corrosion and electrical faults. You should select relays with appropriate protection ratings for your environment. For example, an IP67 rating ensures protection against dust and temporary water immersion. Ignoring these factors can result in unreliable operation and increased maintenance costs.

Overlooking Future Needs

When selecting relays, consider not only current requirements but also future needs. Systems often evolve, requiring more capacity or different functionalities. Choosing a relay with some extra capacity can save you from frequent replacements. Expert analyses highlight that engineers often face pitfalls due to unreliable input data and limited monitoring resources. Sensitivity analysis methods help identify key attributes that influence relay reliability. By considering future needs and using these methods, you can avoid common pitfalls and ensure long-term system reliability.

Tip: Regularly review your relay specifications and environmental conditions to adapt to any changes in your system.

Choosing the right power relay keeps your system safe and reliable. You need to match relay specs to your application for the best results. Always check electrical ratings, environmental needs, and product quality. Use a step-by-step approach and read datasheets before you decide. If you feel unsure, ask an expert for help.

Tip: Start your next project by following these steps. Careful relay selection leads to better performance and fewer problems.

FAQ

What happens if you use a relay with the wrong voltage rating?

If you use a relay with the wrong voltage, it may not switch on or off correctly. This can cause equipment failure or safety risks. Always check the voltage rating before you install a relay.

How do you know which relay type to choose?

You should look at your load, switching speed, and environment. Electromechanical relays work well for heavy loads. Solid-state relays switch faster and last longer. Specialized relays fit unique needs.

Tip: Read the datasheet for each relay type before you decide.

Can you use one relay for both AC and DC loads?

Most relays work best with either AC or DC, not both. The coil and contacts have different designs for each type. Using the wrong relay can cause damage or poor performance.

How often should you inspect or replace relays?

You should inspect relays every three to six months. Look for signs of wear, corrosion, or overheating. Replace relays if you see damage or if they fail tests.

• Regular checks help prevent system failures.

• Keep a maintenance log for best results.
