Analog Devices Inc. EVAL-AD5405EBBOARD EVAL FOR AD5405

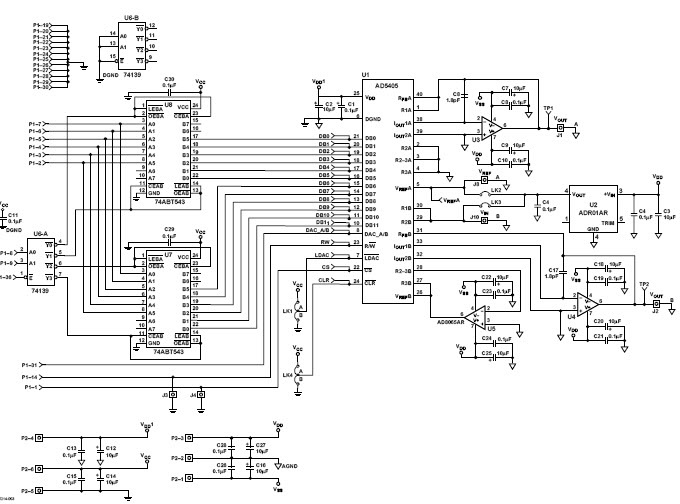

Analog Devices Inc. EVAL-AD5405EB Reference Design 2

Analog Devices Inc. EVAL-AD5405EB Reference Design 1

Applications:

Data Conversion >

Digital to Analog Conversion

End Products:

Instrumentation and MeasurementSignal/Waveform GeneratorPortableUltrasound ImagingDigital CalibrationInstrumentation and Measurement

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD5405EB is a 12-bit, 21.3MSPS, 2-channel digital-to-analog converter (DAC) designed for portable, instrumentation, and measurement applications. It features a wide operating temperature range of -40°C to +85°C, low power consumption of 1.2 mW/channel, and a fast settling time of 1.5 μs. The EVAL-AD5405EB also offers a wide input voltage range of 2.7V to 5.5V, and a wide output voltage range of 0V to VREF. It is ideal for applications such as data acquisition systems, portable instrumentation, and industrial process control.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Packaging
Bulk
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Base Part Number
AD5405
Interface
Parallel
Number of Bits
12
Utilized IC / Part
AD5405
Supplied Contents
Board(s)
Data Interface
Parallel
Sampling Rate
21.3 Msps
Evaluation Kit
Yes
Settling Time
80ns
Sampling Rate (Per Second)
21.3M
Number of DAC Channels
2
DAC Type
Current
RoHS Status
Non-RoHS Compliant

0 Similar Products Remaining

Technical Documents

Associated Products

Part Number	Manufacturer	Description	Stock	RFQ
ADR01AUJZ-REEL7	Analog Devices Inc.	IC VREF SERIES 10V TSOT23-5	94	BUY
AD5405YCPZ	Analog Devices Inc.	12BIT DAC	1350	BUY
AD8065ARTZ-REEL	Analog Devices Inc.	IC OPAMP VFB 145MHZ RRO SOT23-5	6857	RFQ
AD8065ARZ-REEL7	Analog Devices Inc.	OP Amp Single Volt Fdbk R-R O/P ±12V/24V 8-Pin SOIC N T/R	534	RFQ
AD8065ARZ	Analog Devices Inc.	ANALOG DEVICES AD8065ARZOperational Amplifier	9942	RFQ
AD8065ARTZ-R2	Analog Devices Inc.	ANALOG DEVICES AD8065ARTZ-R2Operational Amplifier	100000	RFQ
AD8065ARZ-REEL	Analog Devices Inc.	Operational Amplifiers - Op Amps High Perf 145 MHz	2500	RFQ
AD5405YCPZ-REEL	Analog Devices Inc.	IC DAC DUAL 12BIT MULT 40LFCSP	23	BUY
CD74HCT139ME4	Texas Instruments	IC 2-4 LINE DECODER/DEMUX 16SOIC	0	RFQ
