Analog Devices Inc. EVAL-ADM3251EEBZBOARD EVALUATION ADM3251

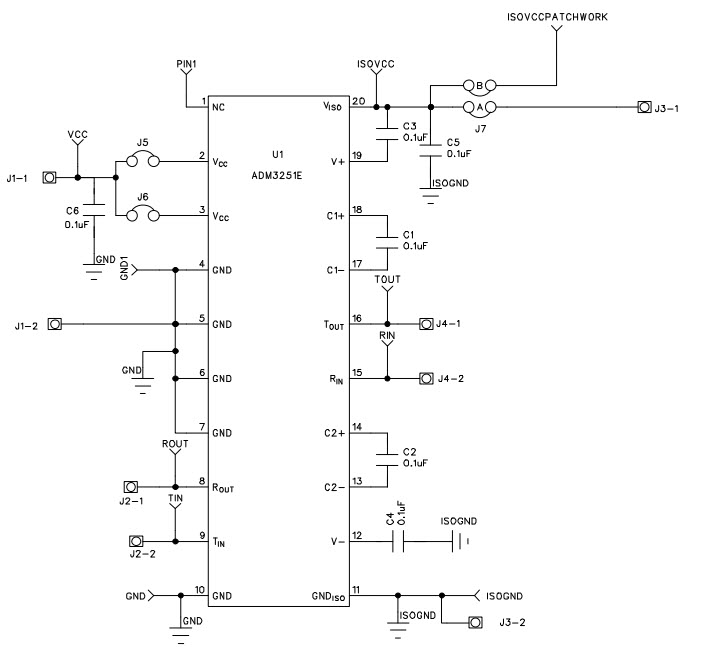

Analog Devices Inc. EVAL-ADM3251EEBZ Reference Design 2

Analog Devices Inc. EVAL-ADM3251EEBZ Reference Design 1

Applications:

Wireless Communication >

RF Transceiver

End Products:

Communications and TelecomMedical and HealthcareDiagnostic ImagingCommunications and TelecomIndustrial

ECAD Model:

Buy

Description

The Analog Devices EVAL-ADM3251EEBZ is an evaluation board for the ADM3251 Isolated, Single-Channel RS-232 Line Driver/Receiver Communications and Telecom ICs. This board is designed to provide a platform for evaluating the performance of the ADM3251 ICs. It features a single-channel RS-232 line driver/receiver, isolated power supply, and a variety of test points for easy evaluation. The board also includes a USB-to-RS-232 converter for easy connection to a PC. The board is ideal for applications such as industrial automation, medical equipment, and point-of-sale systems.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Series
isoPower®
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Interface
Base Part Number
ADM3251
Function
Isolated, RS-232
Utilized IC / Part
ADM3251E
Supplied Contents
Board(s), Accessories
Evaluation Kit
Yes
Primary Attributes
2.5kV Isolated (Power and Data) RS-232 Transceiver, Isolated DC/DC Converter
Embedded
No
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant

0 Similar Products Remaining
