Linear Technology/Analog Devices DC711A-ABOARD EVAL FOR LT3468ES5

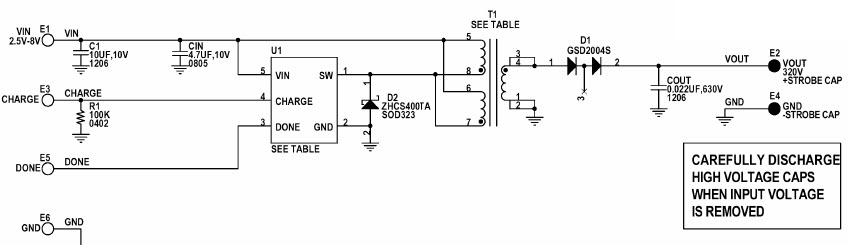

Linear Technology/Analog Devices DC711A-A Reference Design 3

Linear Technology/Analog Devices DC711A-A Reference Design 1

Linear Technology/Analog Devices DC711A-A Reference Design 2

Applications:

Power Supplies >

DC to DC Single Output Power Supplies

End Products:

Video and ImagingFlash Camera

ECAD Model:

Buy

Description

The Analog Devices DC711A-A Demo Board is a high voltage power supply designed for video and imaging applications. It features the LT3468ES5 Photoflash Capacitor Charger, which is capable of providing an output voltage of up to 320V from an input voltage of 2.5V to 8V. The board also features a peak current of 1.4A and is ideal for applications such as flash photography and video recording. The board is easy to use and provides a reliable and efficient power supply for a variety of applications.

Specifications

Linear Technology/Analog Devices technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices .

Type
Parameter
Factory Lead Time
8 Weeks
Published
2005
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Power Management
Base Part Number
LT3468
Function
Capacitor Charger
Utilized IC / Part
LT3468
Supplied Contents
Board(s)
Embedded
No
RoHS Status
ROHS3 Compliant

0 Similar Products Remaining
