Maxim Integrated MAX77874EVKIT#EV KIT MAX77874 BUCK REG

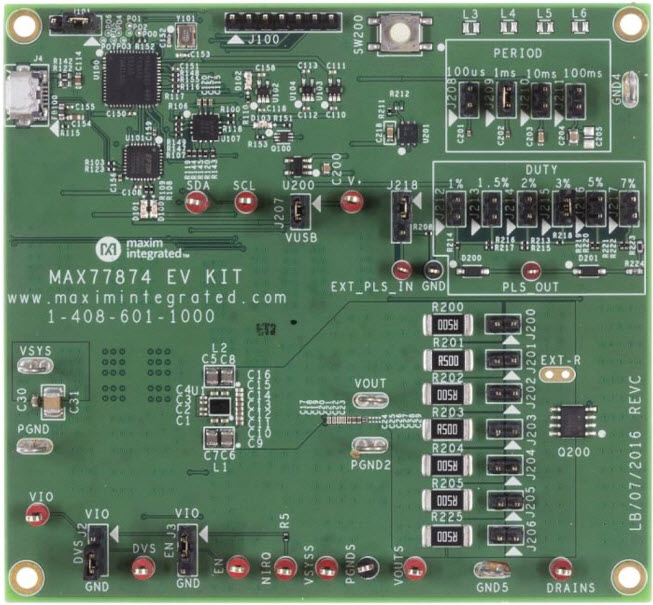

The MAX77874EVKIT-EVKIT# is an evaluation kit for the MAX77874 16A high-performance quad-phase buck regulator for multicore CPU and GPU processors, video and imaging applications. This kit includes a MAX77874 evaluation board, a USB-to-I2C adapter, and a USB cable. The MAX77874 is a high-performance, quad-phase buck regulator that provides up to 16A of output current and is designed to power multicore CPU and GPU processors, video and imaging applications. The evaluation board features a wide input voltage range of 4.5V to 18V, adjustable output voltage from 0.6V to 5V, and a wide range of output current up to 16A. The board also includes a graphical user interface (GUI) for easy configuration and monitoring of the device. The kit also includes a USB-to-I2C adapter and a USB cable for easy connection to a PC.
