Microchip Technology ADM00672MCP1711 DEMO BOARD
Applications:
Power Supplies >
DC to DC Multi-Output Power Supplies
End Products:
Power ManagementLi-Ion Battery PackMobile ApplicationsPower Supplies
ECAD Model:
Description

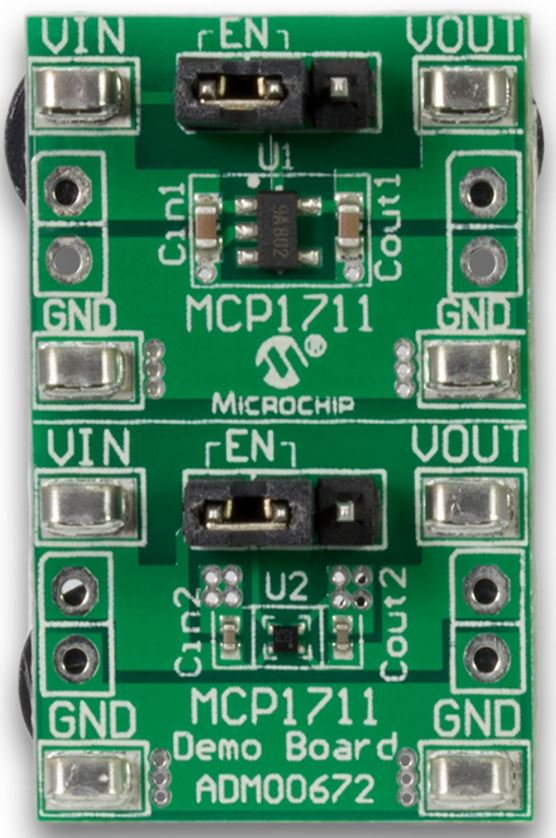

The Microchip Technology ADM00672-ADM00672 Demo Board is a power management IC designed to provide a low dropout voltage regulator for a variety of applications. It features the MCP1711 CMOS Low Dropout (LDO) Voltage Regulator, which is capable of providing a regulated output voltage of up to 5.0V with a maximum output current of 500mA. The board also includes a power switch, a power LED, and a voltage monitor pin. The board is designed to be used with a variety of power sources, including batteries, wall adapters, and USB ports. The board is also designed to be used with a variety of microcontrollers, making it a versatile and reliable power management solution.
Specifications
Microchip Technology technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology .
- TypeParameter
- Factory Lead Time14 Weeks
- Voltage-Input3.2V~6V
- Published2015
- PackagingBulk
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Max Operating Temperature85°C
- Min Operating Temperature-40°C
- Current - Output150mA 150mA
- Voltage - Output1.8V 3.3V
- Utilized IC / PartMCP1711
- Supplied ContentsBoard(s)
- Evaluation KitYes
- Regulator TypePositive Adjustable
- Board TypeFully Populated
- Channels per IC1 - Single
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
