Analog Devices AD9577-EVALZcan benefit from this part. The first integer-N PLL section (PLL1) consists of a low noise phase frequency detector (PFD), a precision charge pump (CP
Applications:
Clock and Timing >
Clock Generator
End Products:
Instrumentation and MeasurementClock and Timing Devices
ECAD Model:
Description

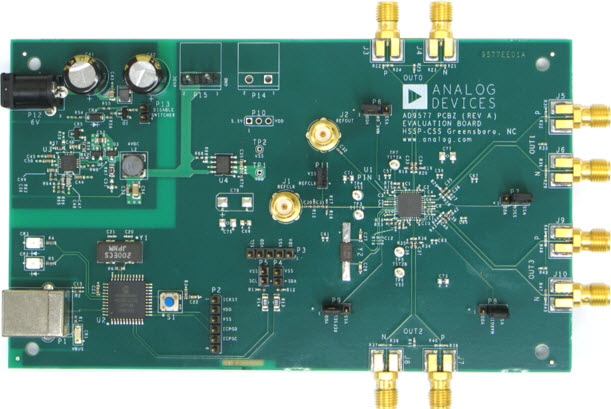

The Analog Devices AD9577-EVALZ Evaluation Board is a versatile tool for evaluating the performance of the AD9577 Clock Generator. This board provides a comprehensive set of instrumentation and measurement capabilities for evaluating the AD9577's features and performance. It includes a wide range of test points, connectors, and jumpers for easy access to the device's inputs and outputs. The board also includes a USB interface for programming and monitoring the device. The AD9577-EVALZ Evaluation Board is an ideal tool for evaluating the performance of the AD9577 Clock Generator in a variety of applications.
