Analog Devices Inc. ADP1071-2EBZ12.1VADP1071 12.1V EVALUATION BOARD

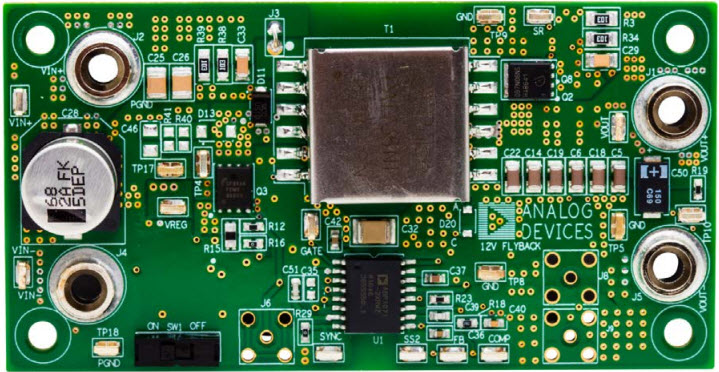

The Analog Devices ADP1071-2EBZ12.1V Evaluation Board is designed to evaluate the ADP1071-2 Isolated Synchronous Flyback Controller with Integrated iCoupler, Power Management IC. This evaluation board is a complete, ready-to-use solution for evaluating the ADP1071-2 IC. It includes a 12V input voltage, a 12V output voltage, and a wide range of features and components to enable the user to quickly and easily evaluate the performance of the ADP1071-2 IC. The board includes a power supply, a current sense resistor, a voltage sense resistor, a power MOSFET, a current sense amplifier, a voltage sense amplifier, a voltage regulator, and a control logic circuit. The board also includes a USB interface for programming and monitoring the ADP1071-2 IC. The board is designed to be used with the ADP1071-2 Evaluation Software, which provides a graphical user interface for programming and monitoring the ADP1071-2 IC.
