Description

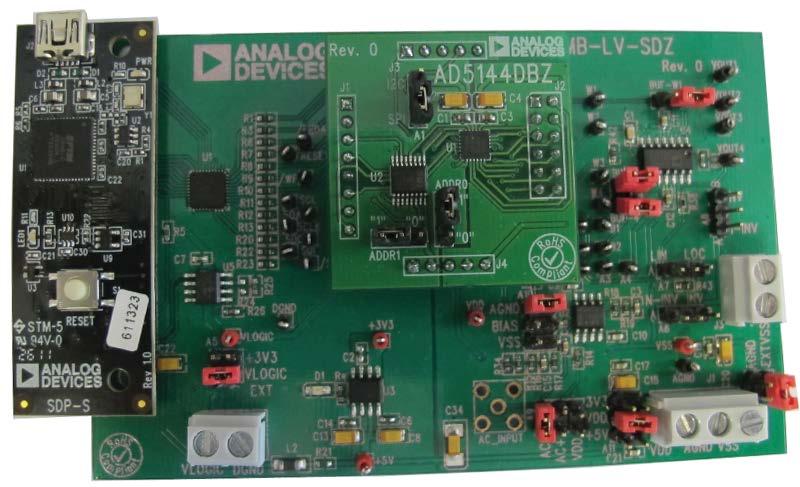

The Analog Devices EVAL-AD5144DBZ Evaluation Board is designed to evaluate the performance of the AD5144 Quad-Channel, 256-Position, Nonvolatile Memory Digital Potentiometer. This board is ideal for lighting control applications, as it allows for precise control of the brightness of up to four LED channels. The board features a USB interface for easy connection to a PC, and includes a graphical user interface (GUI) for easy configuration and control. The board also includes a power supply, a potentiometer, and a jumper for selecting the operating voltage. The board is designed to operate from a single 3.3V supply, and is capable of providing up to 10mA of current to each channel. The board also includes a temperature sensor for monitoring the temperature of the LEDs. The board is RoHS compliant and is designed to meet the requirements of UL, CSA, and EN standards.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .
  • Type
    Parameter
  • Lifecycle Status
    PRODUCTION (Last Updated: 3 weeks ago)
  • Factory Lead Time
    8 Weeks
  • Package / Case
    Module
  • Number of Pins
    0
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Data Acquisition
  • Resistance
    10kOhm
  • Max Operating Temperature
    125°C
  • Base Part Number
    AD5144
  • Function
    Digital Potentiometer
  • Operating Supply Voltage
    5.5V
  • Interface
    SPI
  • Utilized IC / Part
    AD5144
  • Supplied Contents
    Board(s)
  • Evaluation Kit
    Yes
  • Primary Attributes
    4 Channel, 256 Position
  • Embedded
    No
  • Secondary Attributes
    I2C and SPI Interfaces
  • REACH SVHC
    No SVHC
  • RoHS Status
    ROHS3 Compliant
  • Lead Free
    Contains Lead
