Analog Devices Inc. EVAL-AD5222SDZANALOG DEVICES EVAL-AD5222SDZAD5222SDZ EVALUATION MODULE

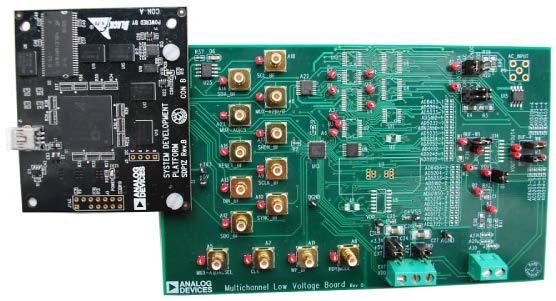

Analog Devices Inc. EVAL-AD5222SDZ Reference Design 2

Analog Devices Inc. EVAL-AD5222SDZ Reference Design 1

Applications:

Data Conversion >

Digital Potentiometer

End Products:

Medical and HealthcareElectrocardiograph Battery PoweredInstrumentation and Measurement

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD5222SDZ and EVAL-AD5204SDZ Evaluation Boards are designed to evaluate the performance of the AD5222 and AD5204 quad-channel, 256-position, digital potentiometers. These boards are ideal for medical and healthcare applications, as they provide a reliable and accurate way to measure and adjust the resistance of a circuit. The boards feature a wide range of features, including adjustable voltage and current ranges, adjustable resistance values, and adjustable temperature ranges. Additionally, the boards are designed to be easy to use and configure, making them ideal for medical and healthcare applications.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
PRODUCTION (Last Updated: 1 week ago)
Factory Lead Time
8 Weeks
Package / Case
Module
Number of Pins
0
Packaging
Bulk
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Data Acquisition
Resistance
10kOhm
Max Operating Temperature
85°C
Base Part Number
AD5222
Function
Digital Potentiometer
Operating Supply Voltage
5.4V
Utilized IC / Part
AD5222
Supplied Contents
Board(s)
Evaluation Kit
Yes
Primary Attributes
2 Channel, 128 Position
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead
