Analog Devices Inc. EVAL-AD5252SDZANALOG DEVICES EVAL-AD5252SDZAD5252SDZ EVALUATION MODULE

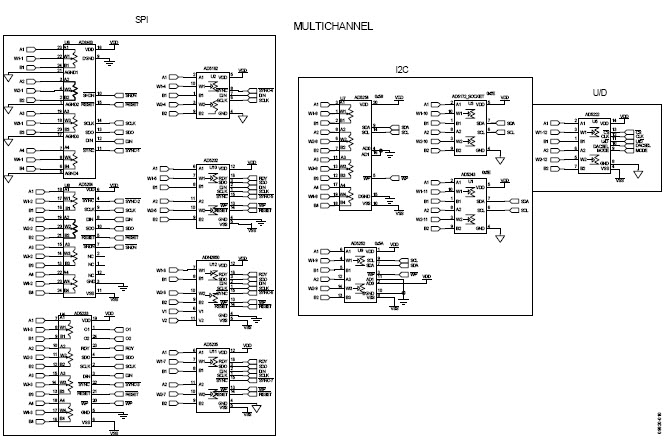

Analog Devices Inc. EVAL-AD5252SDZ Reference Design 3

Analog Devices Inc. EVAL-AD5252SDZ Reference Design 1

Analog Devices Inc. EVAL-AD5252SDZ Reference Design 2

Applications:

Data Conversion >

Digital Potentiometer

End Products:

Instrumentation and MeasurementDigital CalibrationInstrumentation and Measurement

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD5252SDZ Evaluation Board is designed to evaluate the performance of the AD5252 dual-channel, 256-position, nonvolatile memory digital potentiometer. This board is ideal for instrumentation and measurement applications, providing a convenient platform for testing and evaluating the AD5252. The board features two independent potentiometers, each with 256 positions, and a nonvolatile memory that allows the user to store and recall settings. The board also includes a USB interface for easy connection to a PC, and a graphical user interface for easy configuration and control. The board is powered by a single 5V supply, and is RoHS compliant.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time
8 Weeks
Package / Case
Module
Number of Pins
0
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Data Acquisition
Resistance
1kOhm
Max Operating Temperature
85°C
Base Part Number
AD5252
Function
Digital Potentiometer
Operating Supply Voltage
5.5V
Interface
I2C
Utilized IC / Part
AD5252
Supplied Contents
Board(s)
Evaluation Kit
Yes
Primary Attributes
2 Channel, 256 Position
Embedded
No
Secondary Attributes
I2C Interface
REACH SVHC
Unknown
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead

0 Similar Products Remaining
