Analog Devices Inc. EVAL-AD5259DBZBOARD EVAL FOR AD5259DBZ

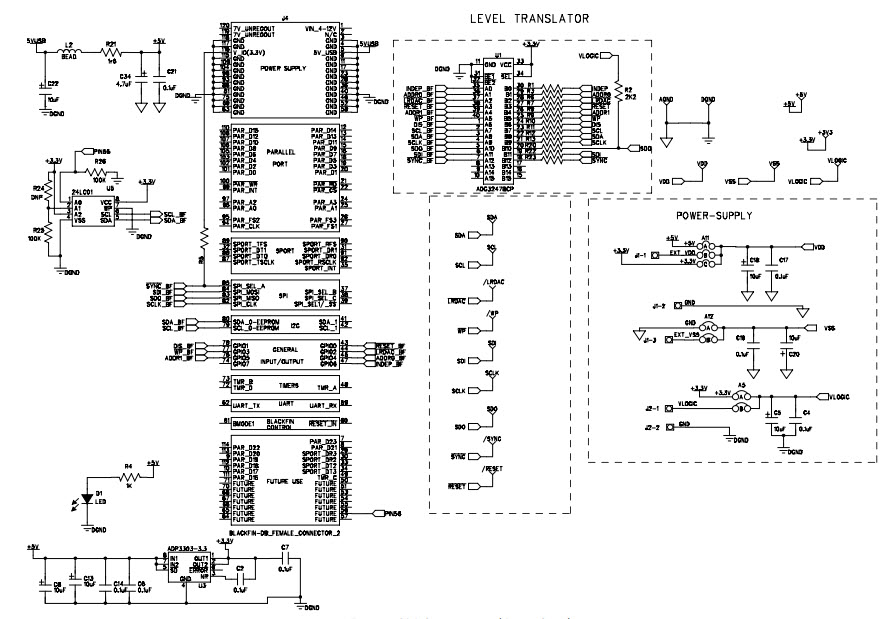

Analog Devices Inc. EVAL-AD5259DBZ Reference Design 3

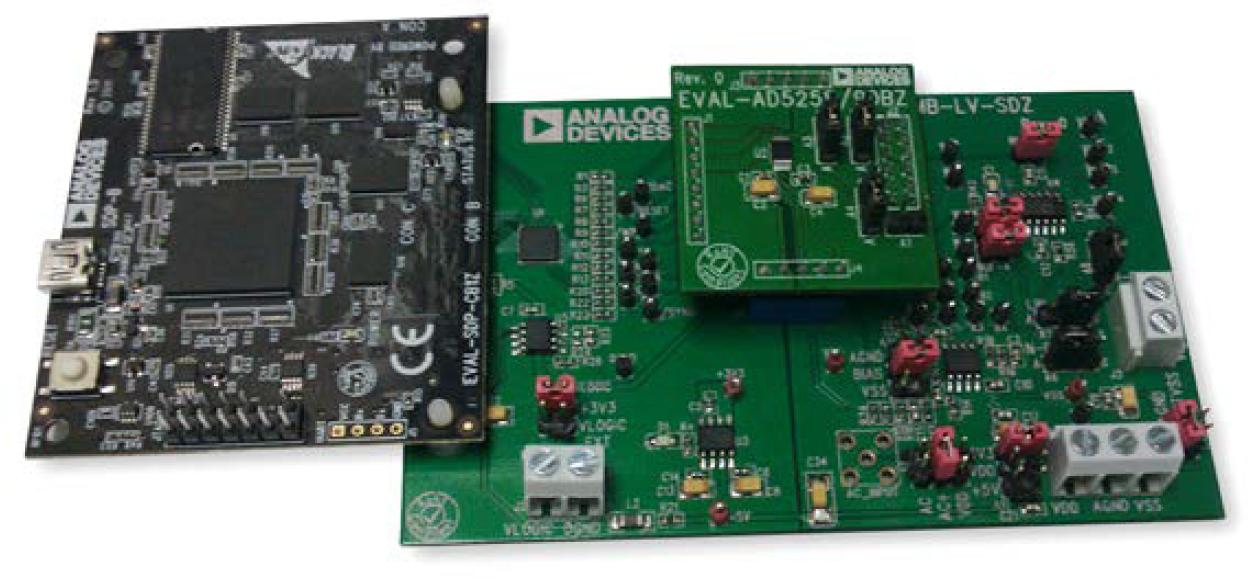

Analog Devices Inc. EVAL-AD5259DBZ Reference Design 1

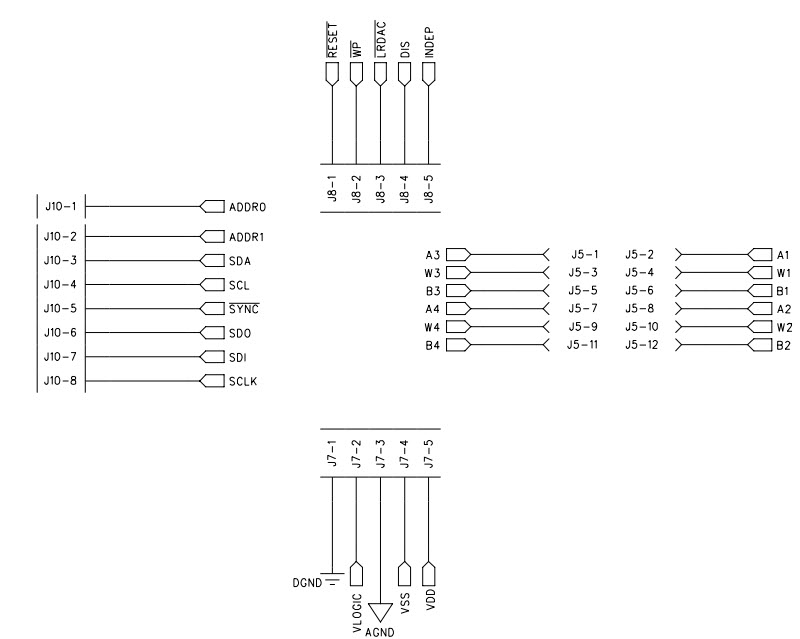

Analog Devices Inc. EVAL-AD5259DBZ Reference Design 2

Applications:

Data Conversion >

Digital Potentiometer

End Products:

AudioAudioElectrocardiograph Battery Powered

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD5259DBZ Evaluation Board is designed to evaluate the performance of the AD5259 single-channel, 256-position, nonvolatile memory Digital Potentiometer. This board is ideal for audio volume control applications, as it allows for precise adjustment of the volume level. The board features a 10-turn potentiometer, a push button, and a 3-position switch for easy control of the potentiometer. The board also includes a USB interface for easy connection to a PC, allowing for easy programming and control of the potentiometer. The board is powered by a single 3V battery, making it ideal for portable applications.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time
8 Weeks
Package / Case
Module
Number of Pins
0
Packaging
Bulk
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
Data Acquisition
Resistance
5kOhm
Max Operating Temperature
85°C
Base Part Number
AD5259
Function
Digital Potentiometer
Operating Supply Voltage
5V
Interface
I2C
Utilized IC / Part
AD5259
Supplied Contents
Board(s)
Evaluation Kit
Yes
Primary Attributes
1 Channel, 256 Position
Embedded
No
Secondary Attributes
I2C Interface
REACH SVHC
No SVHC
RoHS Status
Non-RoHS Compliant
Lead Free
Contains Lead

0 Similar Products Remaining
