Analog Devices Inc. EVAL-AD5290EBZANALOG DEVICES EVAL-AD5290EBZ EVAL BOARD FOR AD5290

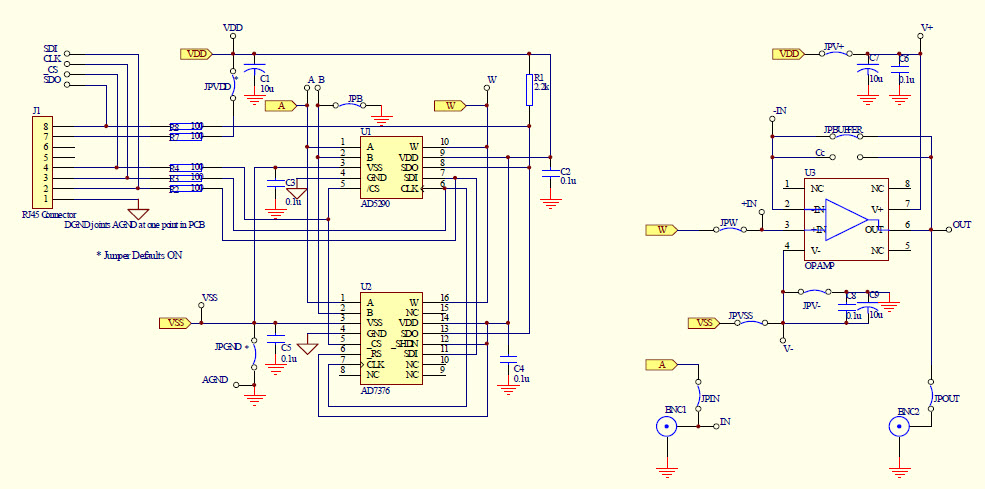

Analog Devices Inc. EVAL-AD5290EBZ Reference Design 4

Analog Devices Inc. EVAL-AD5290EBZ Reference Design 1

Analog Devices Inc. EVAL-AD5290EBZ Reference Design 2

Analog Devices Inc. EVAL-AD5290EBZ Reference Design 3

Applications:

Data Conversion >

Digital Potentiometer

End Products:

AudioAudioElectrocardiograph Battery Powered

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD5290EBZ Evaluation Board is designed to evaluate the performance of the AD5290, a 256-position digital potentiometer with an audio taper and a maximum voltage rating of 30V. The board features a 10-turn trimmer potentiometer, a 3-position switch, and a 2-position switch, allowing users to easily adjust the potentiometer's resistance and control its operation. The board also includes a power supply, a USB-to-I2C interface, and a set of jumpers for connecting to external circuits. The board is ideal for applications such as volume control, gain control, and impedance matching.
