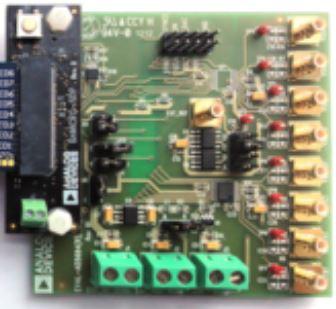

Analog Devices Inc. EVAL-AD5684RSDZBOARD EVAL FOR AD5684R
Applications:
Data Conversion >
Digital to Analog Conversion
End Products:
Instrumentation and MeasurementWireless Base StationIndustrial Automation HMIData Acquisition SystemIndustrial Process Measurement and ControlOpticals
ECAD Model:
Description
The Analog Devices EVAL-AD5684RSDZ Evaluation Board is a versatile tool for instrumentation and measurement applications. It is designed to evaluate the performance of the AD5684R, a 12-bit, quad channel voltage output digital to analog converter. The board features four independent voltage output channels, each with a range of 0 to 10V, and a maximum output current of 10mA. It also includes a power supply, a USB interface, and a set of jumpers and switches for easy configuration. The board is ideal for applications such as data acquisition, signal conditioning, and control systems.
Specifications
Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .
- TypeParameter
- Number of Pins0
- PackagingBox
- SeriesnanoDAC®
- Part StatusObsolete
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- Max Operating Temperature105°C
- Min Operating Temperature-40°C
- Base Part NumberAD5684
- Operating Supply Voltage5.5V
- InterfaceSPI, USB
- Number of Bits12
- Utilized IC / PartAD5684R
- Supplied ContentsBoard(s)
- Data InterfaceSPI
- Resolution1.5 B
- Evaluation KitYes
- Settling Time5μs
- Number of DAC Channels4
- DAC TypeVoltage
- REACH SVHCNo SVHC
- RoHS StatusROHS3 Compliant
- Lead FreeContains Lead
