Analog Devices Inc. EVAL-AD7402-8FMCZData Conversion IC Development Tools EVALUATION BOARD I.C.

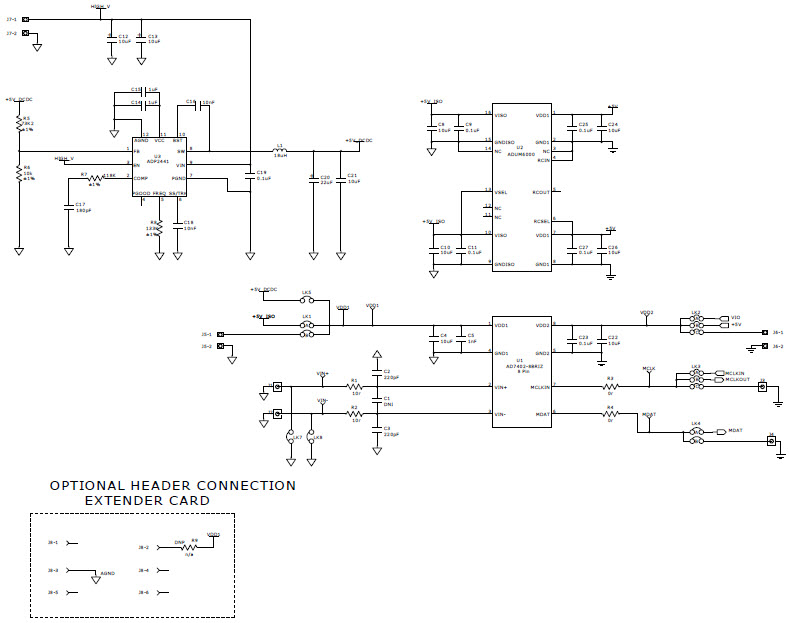

Analog Devices Inc. EVAL-AD7402-8FMCZ Reference Design 5

Analog Devices Inc. EVAL-AD7402-8FMCZ Reference Design 1

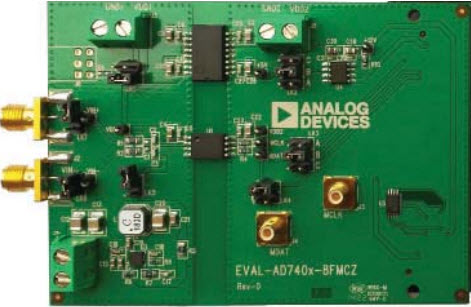

Analog Devices Inc. EVAL-AD7402-8FMCZ Reference Design 2

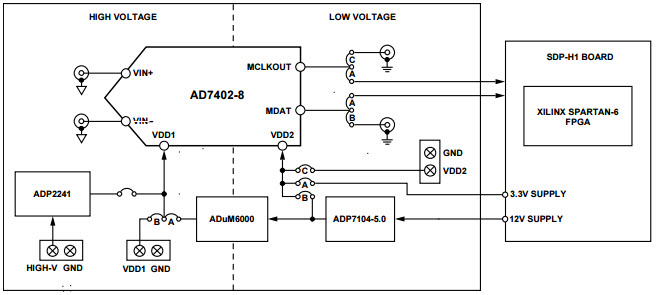

Analog Devices Inc. EVAL-AD7402-8FMCZ Reference Design 3

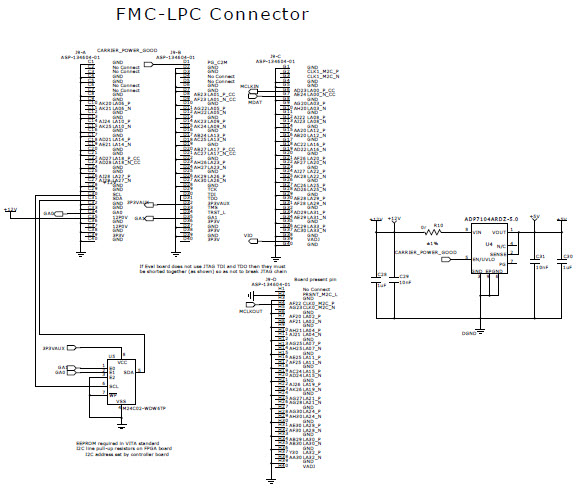

Analog Devices Inc. EVAL-AD7402-8FMCZ Reference Design 4

Applications:

Data Conversion >

Analog to Digital Conversion

End Products:

Instrumentation and MeasurementData Acquisition SystemMotor ControlWind TurbineOver Current MonitoringSolar Power Inverter

ECAD Model:

Buy

Description

The Analog Devices EVAL-AD7402-8FMCZ Evaluation Board is designed to evaluate the performance of the AD7402 16-Bit, Isolated Sigma-Delta ADC. This board is ideal for instrumentation and measurement applications, providing a convenient platform for testing and evaluating the AD7402. The board features a wide range of connectors and components, including a USB interface, a power supply, and a variety of analog and digital I/O. The board also includes a comprehensive set of software tools for configuring and testing the AD7402. The board is designed to be used with a PC or laptop, and is compatible with Windows, Linux, and Mac OS X operating systems.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time
8 Weeks
Number of Pins
0
Packaging
Box
Series
iCoupler®
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Base Part Number
AD7402
Operating Supply Voltage
5.5V
Interface
Serial
Number of Bits
16
Utilized IC / Part
AD7402
Supplied Contents
Board(s)
Data Interface
Serial
Sampling Rate
39 ksps
Evaluation Kit
Yes
Sampling Rate (Per Second)
39K
Number of A/D Converters
1
Input Range
±250mV
Power (Typ) @ Conditions
209mW @ 39kSPS
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead

0 Similar Products Remaining

Technical Documents

Associated Products

Part Number	Manufacturer	Description	Stock	RFQ
ADP2441ACPZ-R7	Analog Devices Inc.	IC REG BUCK ADJ 1A SYNC 12LFCSP	1460	RFQ
ADP2441ACPZ-R2	Analog Devices, Inc.		0	RFQ
ADUM6000ARIZ	Analog Devices Inc.	ANALOG DEVICES ADUM6000ARIZDigital Isolator, 1 Channel, 3 V, 5.5 V, SOIC, 16 Pins	0	RFQ
ADP7104ARDZ-5.0-R7	Analog Devices Inc.	IC REG LINEAR 5V 500MA 8SOIC	2	RFQ
AD7402-8BRIZ	Analog Devices Inc.	Single Channel Single ADC Delta-Sigma 16-bit Serial 8-Pin SOIC W Tube	0	RFQ
