Analog Devices Inc. EVAL-SSM3515ZEVAL BOARD FOR SSM3515

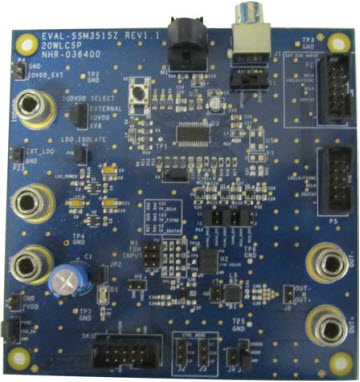

Analog Devices Inc. EVAL-SSM3515Z Reference Design 8

Analog Devices Inc. EVAL-SSM3515Z Reference Design 1

Analog Devices Inc. EVAL-SSM3515Z Reference Design 2

Analog Devices Inc. EVAL-SSM3515Z Reference Design 3

Analog Devices Inc. EVAL-SSM3515Z Reference Design 4

Analog Devices Inc. EVAL-SSM3515Z Reference Design 5

Analog Devices Inc. EVAL-SSM3515Z Reference Design 6

Analog Devices Inc. EVAL-SSM3515Z Reference Design 7

Applications:

Audio >

Audio Power Amplifier

End Products:

Consumer ElectronicsPortable Consumer ElectronicsHome TheaterNotebook

ECAD Model:

Buy

Description

The Analog Devices EVAL-SSM3515Z Evaluation Board is designed to evaluate the SSM3515 25W, Filterless, Class-D Digital Input Audio Amplifier. This board is ideal for consumer electronics applications, such as portable audio systems, sound bars, and multimedia speakers. It features a low-noise power supply, a high-efficiency power amplifier, and a low-noise audio input. The board also includes a headphone amplifier, a volume control, and a mute switch. The board is designed to provide a complete solution for evaluating the SSM3515 amplifier.

Specifications

Analog Devices Inc. technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. .

Type
Parameter
Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time
8 Weeks
Number of Pins
0
Packaging
Box
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Voltage - Supply
4.5V~17V
Base Part Number
SSM3515
Output Type
1-Channel (Mono)
Amplifier Type
Class D
Utilized IC / Part
SSM3515
Supplied Contents
Board(s)
Evaluation Kit
Yes
Max Output Power
25W
Board Type
Fully Populated
Max Output Power x Channels @ Load
25W x 1 @ 4Ohm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead

0 Similar Products Remaining
