Linear Technology/Analog Devices DC1808B-BBOARD EVAL FOR LTC3589EUJ
Applications:
Power Supplies >
DC to DC Multi-Output Power Supplies
End Products:
AutomotiveScannersMedical and HealthcareProcessor Power ManagementConsumer Electronics ControlAutomotiveIndustrialInstrumentation and Measurement
ECAD Model:
Description
The Analog Devices DC1808B-B, LTC3589EUJ-2 Demo Board is an 8-output regulator with sequencing and I2C capabilities, designed for automotive and transportation applications. It features a wide input voltage range of 4.5V to 40V, and can provide up to 8 regulated outputs with a maximum output current of 1.5A per channel. The board also includes an I2C interface for programming and monitoring the output voltages, as well as sequencing and tracking capabilities for controlling multiple outputs. The board is designed to meet the stringent requirements of automotive and transportation applications, and is ideal for powering a variety of automotive systems.
Specifications
Linear Technology/Analog Devices technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices .
- TypeParameter
- Factory Lead Time8 Weeks
- Published2011
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypePower Management
- Base Part NumberLTC3589
- FunctionSpecial Purpose: Mobiles
- Utilized IC / PartLTC3589-2
- Supplied ContentsBoard(s)
- EmbeddedYes, MCU, 8-Bit
- Secondary AttributesI2C Interface
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| Analog Devices, Inc. | 0 | RFQ | ||
| Microchip Technology | MICROCHIP - 24LC025-I/ST - SERIAL EEPROM | 25 | RFQ | |
| Microchip Technology | MICROCHIP - PIC16F722-I/ML - MCU | 3500 | RFQ | |
| Analog Devices / Linear Technology | 433 | RFQ |

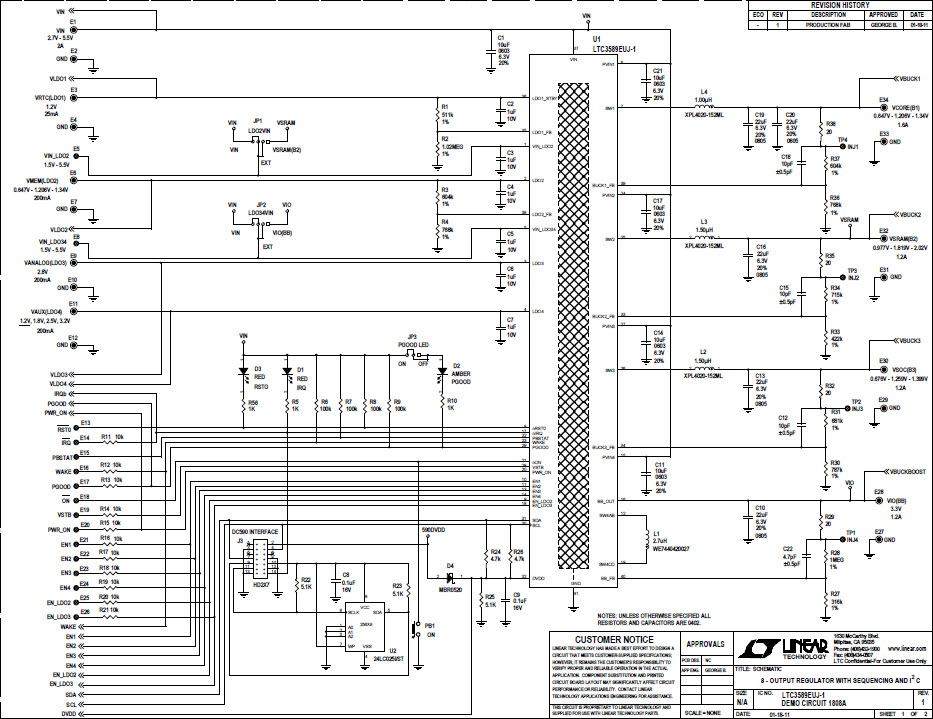

Related Reference Design
