Linear Technology/Analog Devices DC2266ADEMO BOARD FOR LTC2107/LTC6409

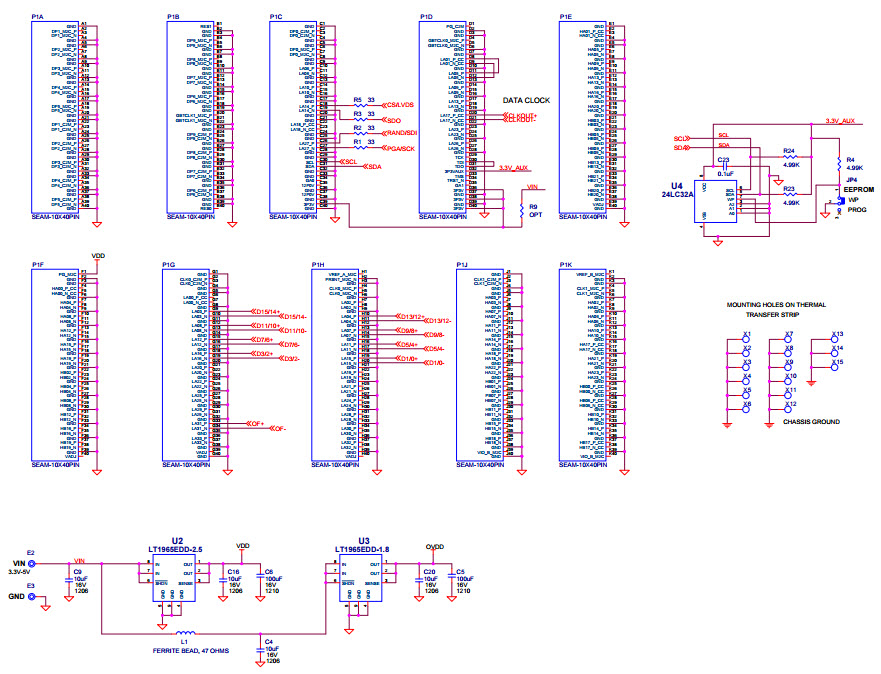

Linear Technology/Analog Devices DC2266A Reference Design 4

Linear Technology/Analog Devices DC2266A Reference Design 1

Linear Technology/Analog Devices DC2266A Reference Design 2

Linear Technology/Analog Devices DC2266A Reference Design 3

Applications:

Data Conversion >

Analog to Digital Conversion

End Products:

Instrumentation and MeasurementCell BasestationImaging DeviceMilitary RadiosSoftware Defined RadioATE IC Tester

ECAD Model:

Buy

Description

The Analog Devices DC2266A-A Demo Board is a versatile instrumentation and measurement tool designed to evaluate the performance of the LTC2107 + LTC6409 16-Bit, 210Msps ADC and Driver Combo Board. This board features a DC-100MHz input and DDR LVDS outputs, allowing for high-speed data acquisition and signal processing. The board is ideal for applications such as medical imaging, communications, and instrumentation. It is also suitable for use in a wide range of industrial and consumer applications. The board is easy to use and provides a comprehensive set of features for testing and evaluating the performance of the LTC2107 + LTC6409 16-Bit, 210Msps ADC and Driver Combo Board.

Specifications

Linear Technology/Analog Devices technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices .
