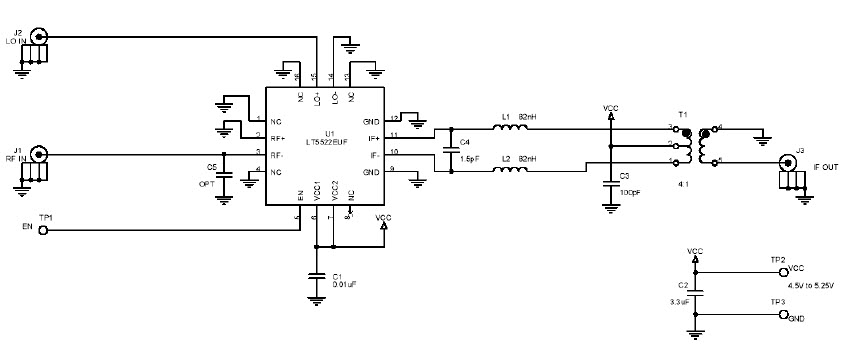

Linear Technology/Analog Devices DC689AEVAL BOARD FOR LT5522EUF

The Analog Devices DC689A-A Demo Board is a versatile and powerful tool for testing and evaluating the performance of the LT5522EUF High Signal Level Down-Converting Mixer. This board is designed to provide a 140MHz IF output for consumer electronics applications. It features a wide range of features, including a low noise amplifier, a high linearity mixer, and a wideband IF filter. The board also includes a low-noise power supply, a high-performance clock generator, and a wide range of test points for easy evaluation. The DC689A-A Demo Board is an ideal solution for testing and evaluating the performance of the LT5522EUF High Signal Level Down-Converting Mixer.
