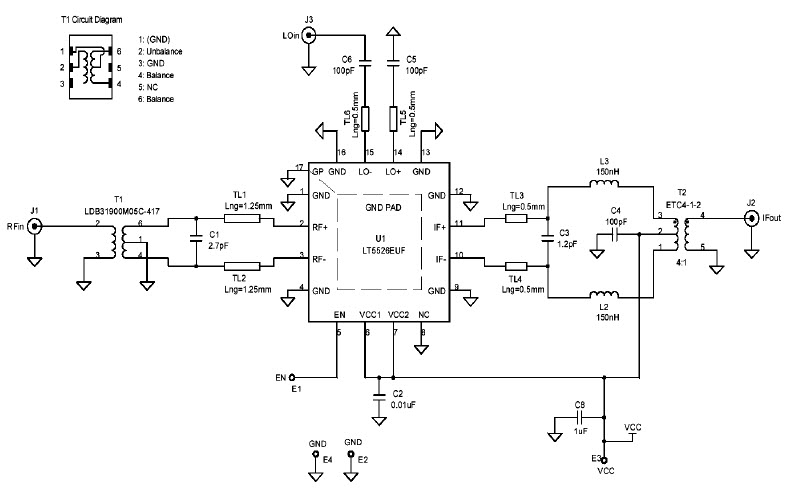

Linear Technology/Analog Devices DC753AEVAL BOARD FOR LT5526EUF

The Analog Devices DC753A-A, DC753A, Demo Board Using LT5526EUF 1MHz-2GHz Up/Down Conv Mixer is a versatile communications and telecom demo board designed to demonstrate the capabilities of the LT5526EUF 1MHz-2GHz Up/Down Conv Mixer. This demo board features a wide range of features, including a wide frequency range of 1MHz-2GHz, a high dynamic range of up to 40dB, and a low noise figure of less than 1dB. The board also includes a wide range of input and output ports, allowing for easy connection to a variety of external devices. Additionally, the board includes a variety of test points and jumpers, allowing for easy testing and debugging of the mixer. The DC753A-A, DC753A, Demo Board is an ideal tool for engineers and technicians looking to quickly and easily evaluate the performance of the LT5526EUF 1MHz-2GHz Up/Down Conv Mixer.
