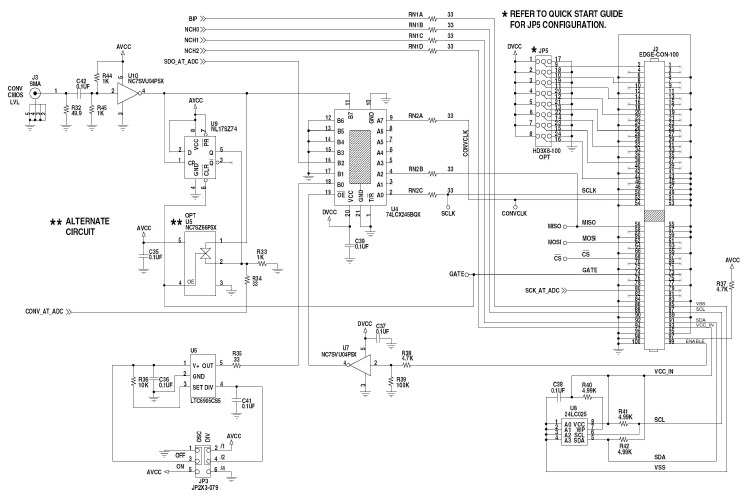

Linear Technology/Analog Devices DC887ABOARD SAR ADC LTC1408

The Analog Devices DC887A-A Demo Board is a versatile instrumentation and measurement tool that utilizes the LTC1408 14-Bit, 6-Ch Simult-Sampling ADC. This board is designed to provide a comprehensive platform for evaluating the performance of the LTC1408 ADC. It features a wide range of input ranges, including ±10V, ±5V, ±2.5V, and ±1.25V, as well as a programmable gain amplifier (PGA) with gains of 1, 2, 4, 8, and 16. The board also includes a variety of analog and digital I/O, including a USB interface, a 16-bit digital-to-analog converter (DAC), and a 16-bit analog-to-digital converter (ADC). Additionally, the board includes a variety of software tools, such as a graphical user interface (GUI) and a library of example programs, to help users quickly and easily evaluate the performance of the LTC1408 ADC.
