Microchip HV9967BDB1LED Lighting Development Tools 4W LED DRIVER DEMO BOARD
Applications:
Lighting >
High Brightness LED Driver
End Products:
LightingBattery ChargerAC to DC LED DriverDecorative LightingSignage LightingRGB BacklightingDC to DC LED DriverConstant-Current LED DriverDisplay Backlighting
ECAD Model:
Description

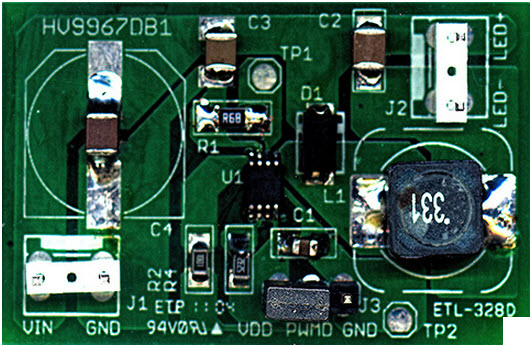

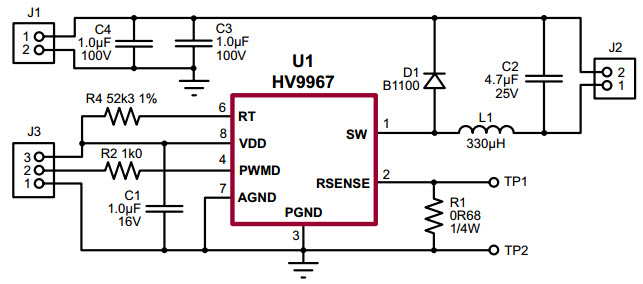

The Microchip Technology HV9967BDB1-BDB1, HV9967BDB1, 4W LED Driver Demo Board with Accurate Average-Mode Constant Current Control, Lighting Control is a demonstration board designed to showcase the capabilities of the HV9967 LED driver IC. This board is capable of driving up to 4W of LED power with accurate average-mode constant current control and lighting control. It features a wide input voltage range of 4.5V to 42V, adjustable output current up to 350mA, and a wide dimming range of 0.1% to 100%. The board also includes a USB interface for easy programming and monitoring of the LED driver. This demo board is ideal for applications such as LED lighting, automotive lighting, and industrial lighting.
